Drawing a 3-Centered Arch w/Known Radii

by Wm. Todd Murdock on August 25, 2008

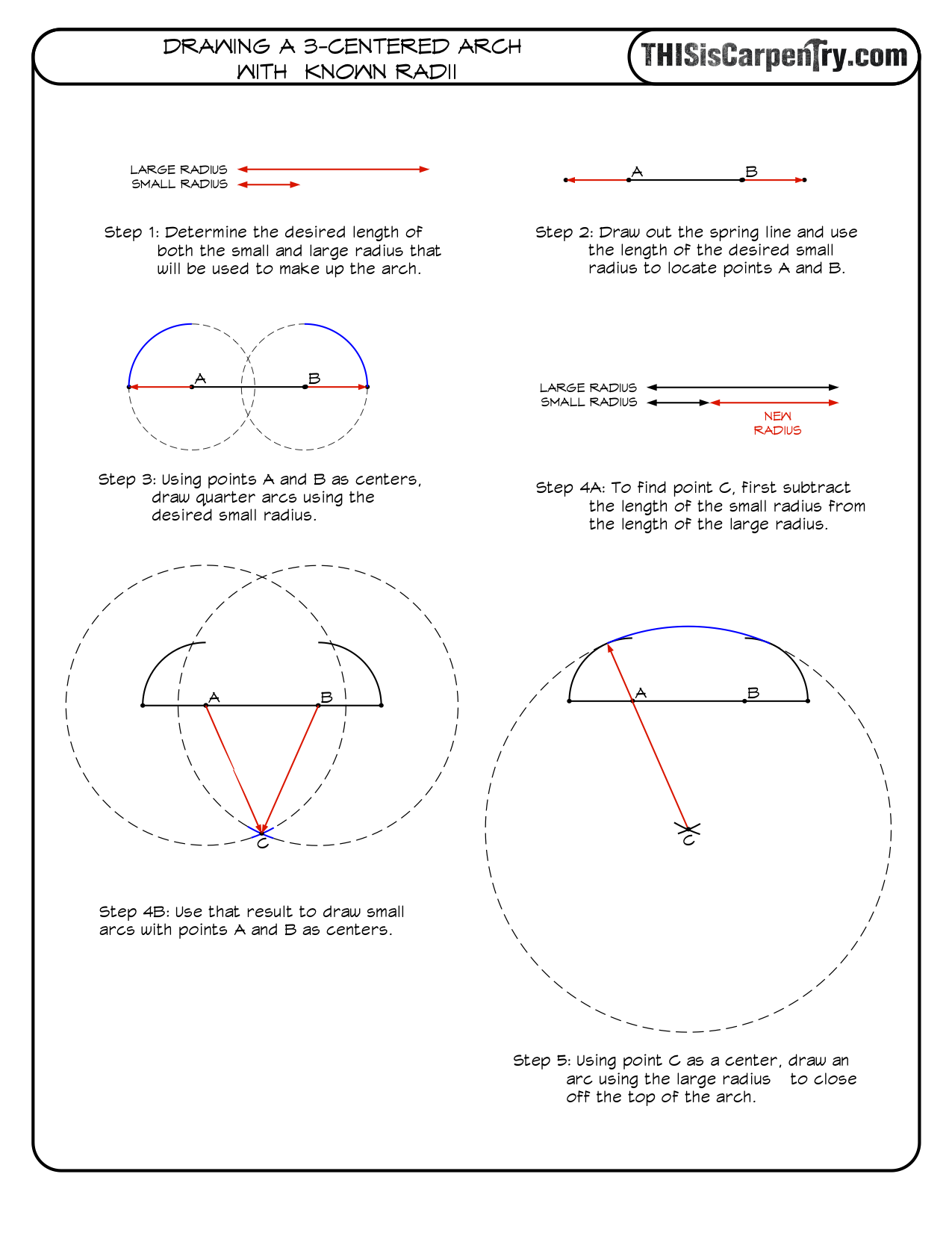

Step-by-step instructions for drawing a 3-centered arch with known radii.
