Have you ever wondered how a furniture builder can replicate several pieces that are all exactly the same without the use of any fancy CNC machines? Well fortunately there is a method that won’t break the bank, and can be done in a reasonable amount of time. All it requires is some scrap wood or MDF (your choice), a pencil and straight edge for marking lines, a French curve if you want to get extra fancy, blue tape, CA glue, and a router with two different types of pattern cutting bits—one top bearing and one bottom bearing.

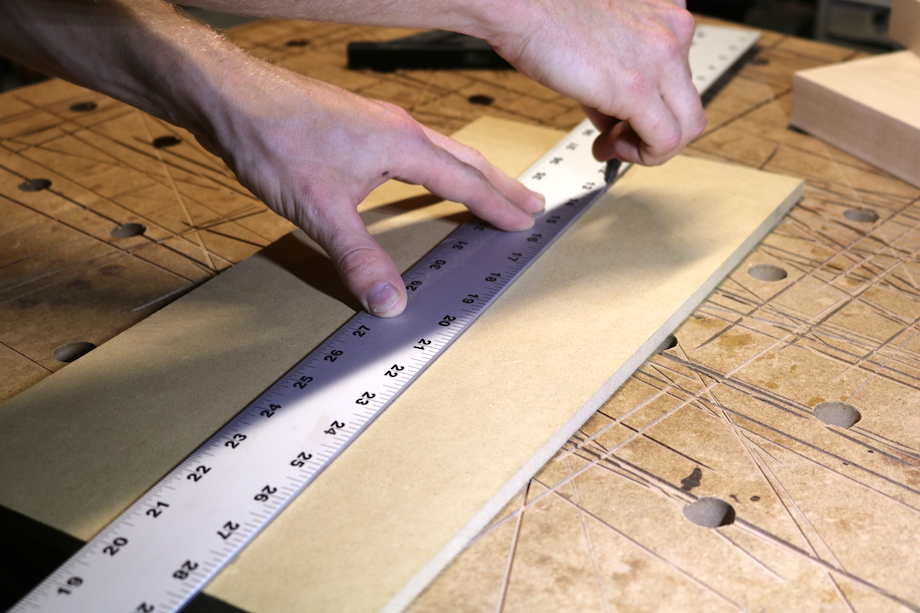

In this example, I’m going to demonstrate how I make the legs for a side table project, which I happen to be in the process of building. I start with a scrap piece of MDF that I’ll eventually use as a template. The height of the legs is 18 in., so I mark two lines that determine the top and bottom of the leg.
Between those lines is where creativity happens.

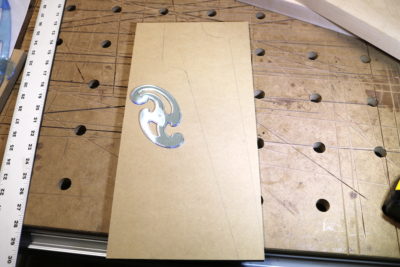

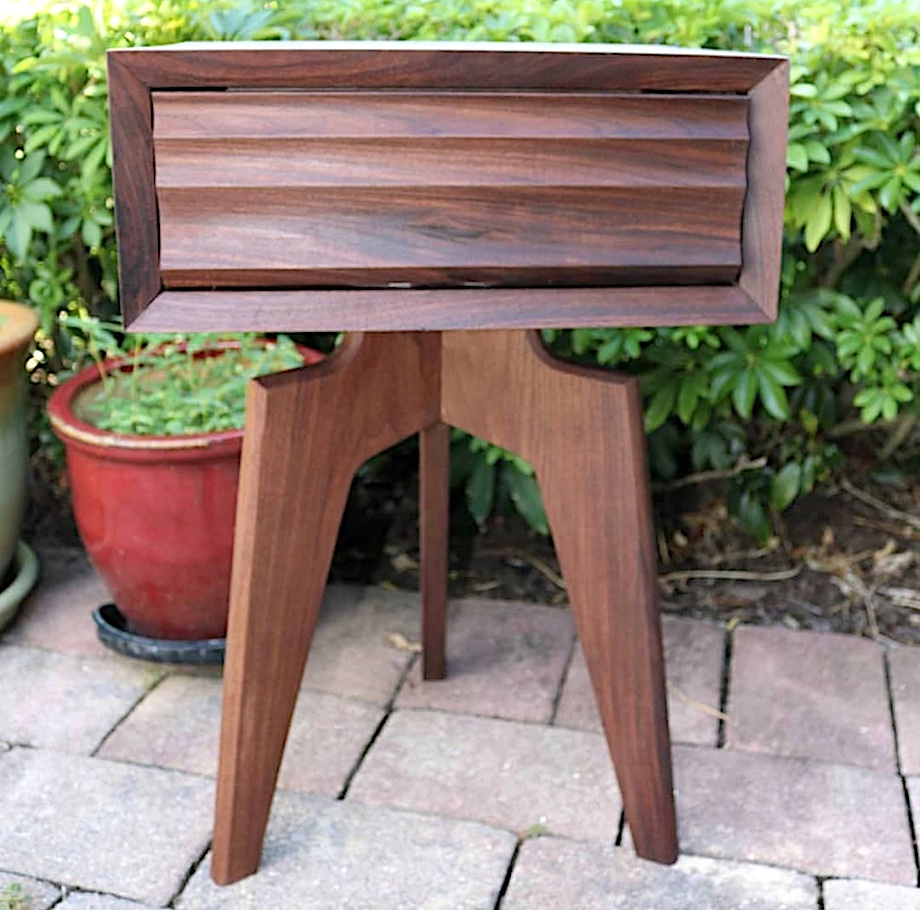

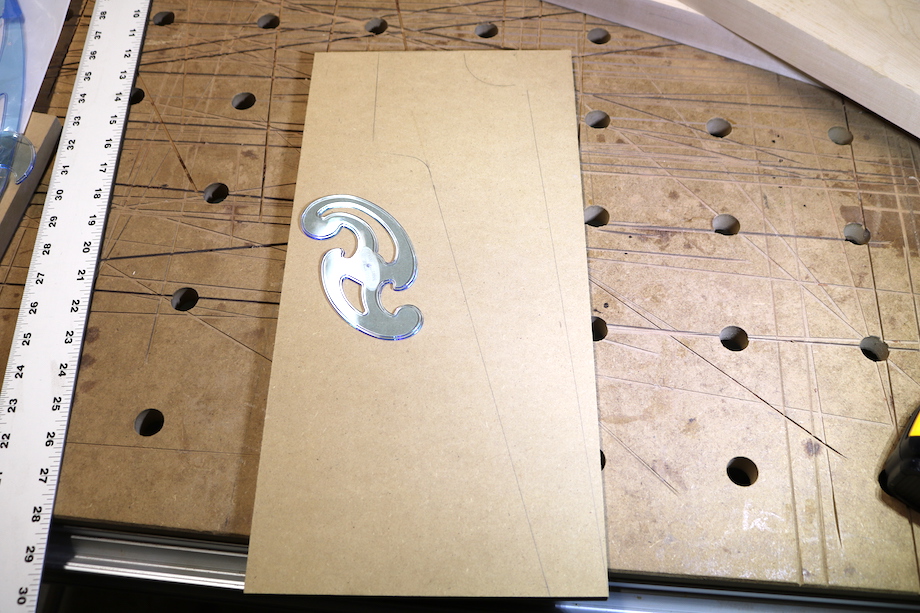

The table I’m making is a mid-century modern design, so in addition to a slight taper, I also add a gentle curve at the top using my French curve template. |
If you don’t have a French curve, something as simple as a spray paint can be very effective. Take a look around, you’ll be surprised what you can use. |

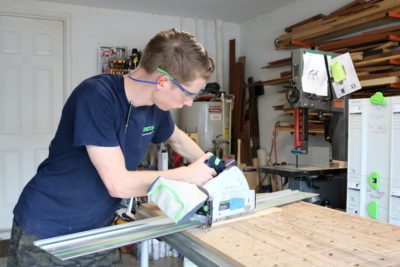

With the lines laid out, I make some rough cuts. This can be done at the bandsaw, with a jigsaw, or my personal favorite, the track saw. |
The shape can be tweaked and perfected afterward with a sander—I like using an oscillating sander (more on that soon).

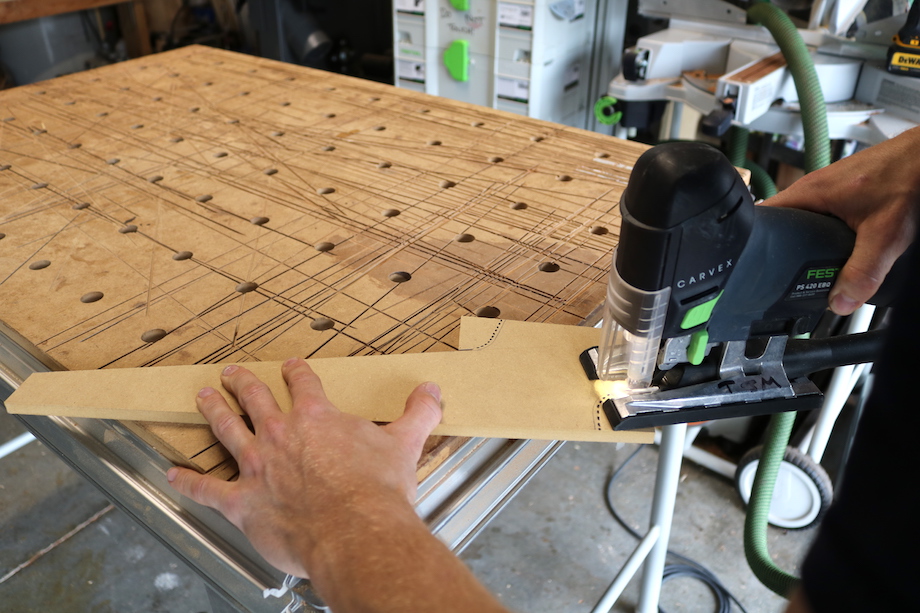

To remove material along the curved section, I use a jigsaw, but I always leave the line so I can see it and sand right to it. There are several strategies for making curved cuts.

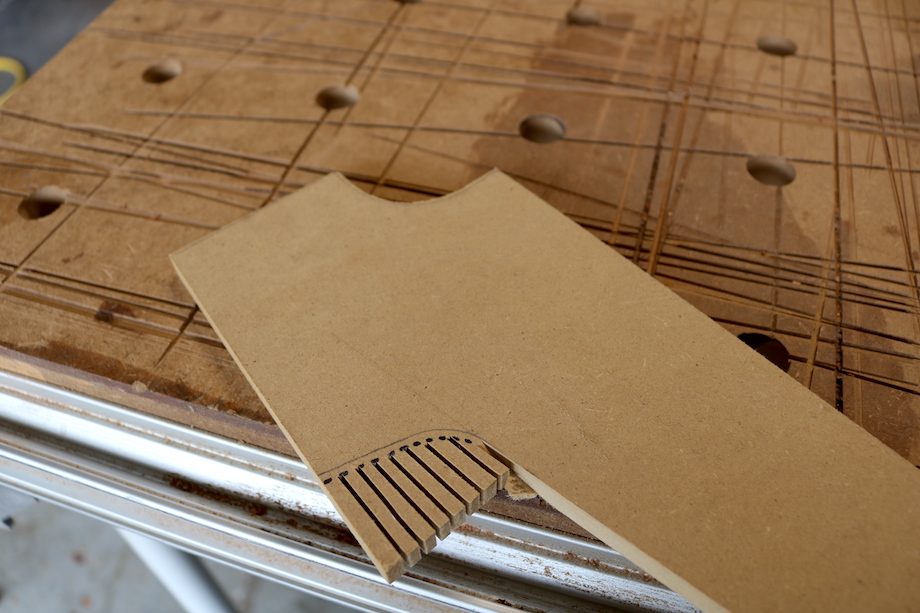

Some folks make relief cuts—which is critical for tight radiuses. |
I’ve also seen woodworkers draw a series of dashed lines so that they never get too close to the actual template line. |

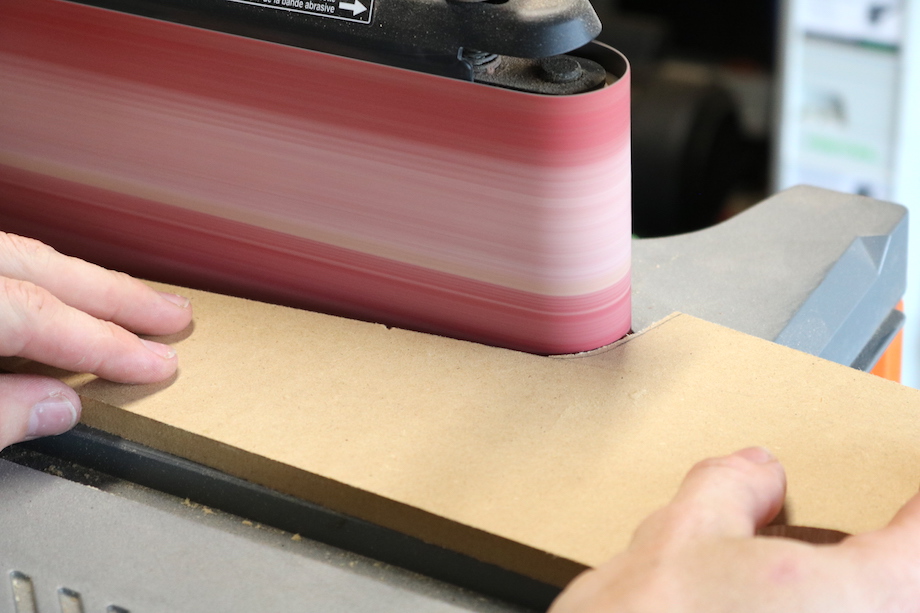

An oscillating sander makes curved work fast, fun, and precise. I take small passes, and ease up on the pencil line. |
I like using 120-grit paper because it’s coarse enough to remove material quickly without biting in aggressively, and with a steady pace it leaves a nice smooth edge. The edges of a template must be perfect—smooth as glass, so that a small router bit bearing can ride effortlessly without any hiccups. If you’re in the market for an inexpensive oscillating sander, this Ridgid sander is a great choice and can be found at big box stores. While it’s not the most powerful, trust me, it’s effective!
I always joint my material perfectly square before shaping—that way it’s much easier to place the template precisely on a straight and crisp square edge. This straight and crisp square edge is also referred to as “true north.”
The true north side is the flat edge of the template—the edge that’s often placed against a fence; the edge you might pull angle from with a bevel square or a protractor. |

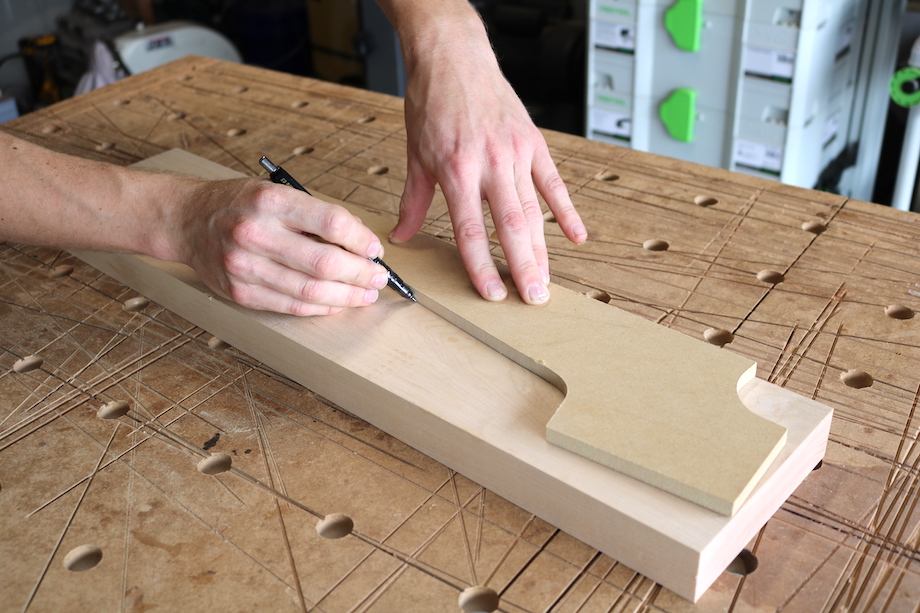

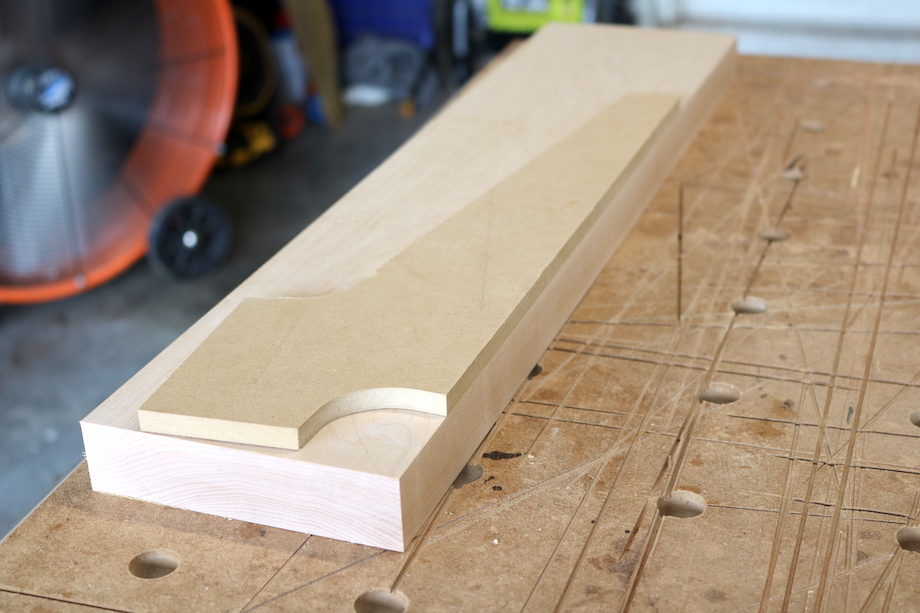

For this step, I hold the template securely against the workpiece and trace a line around the edge of the template with a pencil or even a marker.
This is just a guideline so that I can remove most of the excess material with the bandsaw before applying the template and cutting the pattern with a router. |

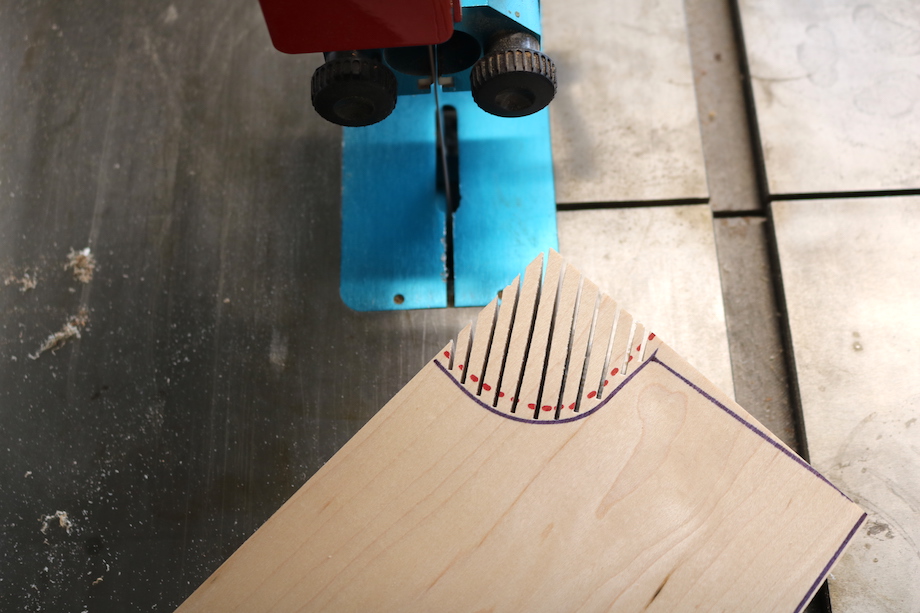

Like I said before, when cutting curves, sometimes it’s safer and more accurate to make relief cuts, so that the waste will fall out and make it easier to follow the cut line with a bandsaw or jigsaw; without the blade binding. Once you have made the relief cuts, start working the curve a little bit at a time. Each time a piece falls free, there’s more room for the blade to maneuver. Remember, with the bandsaw, you have to move the workpiece around the blade, so don’t dive in too deep or you may end up getting bound in the cut. Ease your way in. You can always take off more later, but once the material is gone, it’s gone!
With the excess material removed it’s much easier to cut the workpiece with a router and template. You can clamp the template to the workpiece, but clamps always get in the way. And using screws, or brads, or even applying fast-acting glue directly to the work will mar the wood and require more time to repair. Here’s a great technique that’s becoming more and more popular: apply blue tape to the workpiece and template, and then use fast-acting cyanoacrylate glue (CA glue) to secure the template. You can also use double-sided tape.

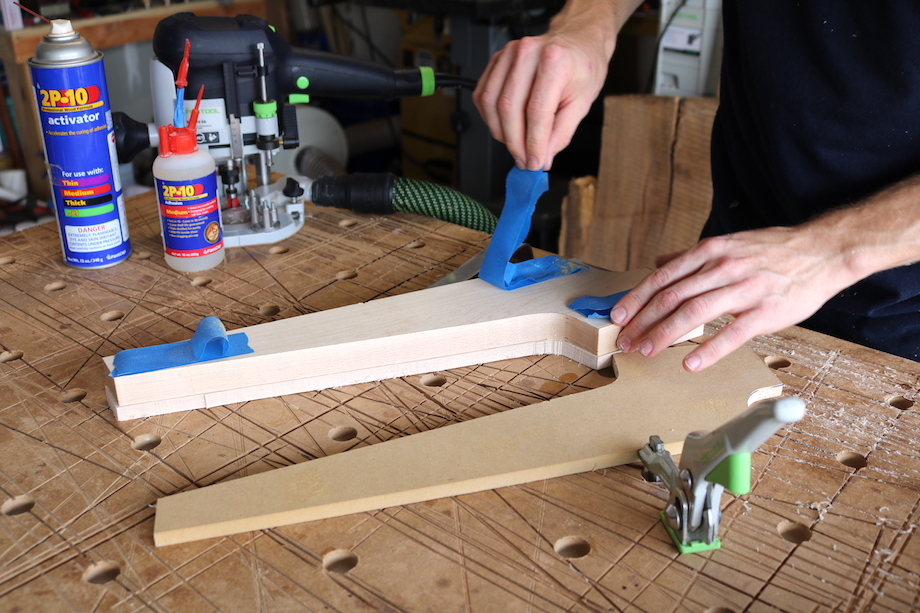

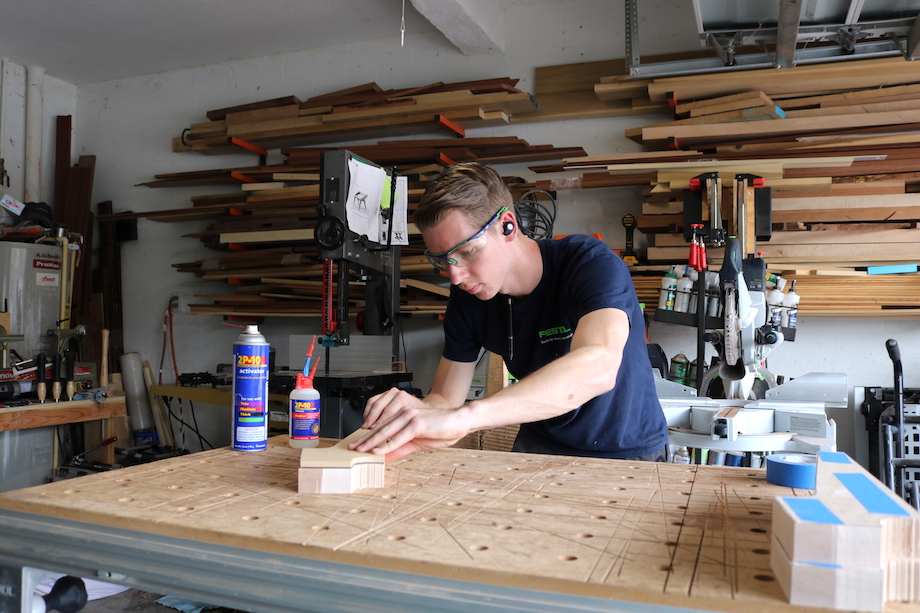

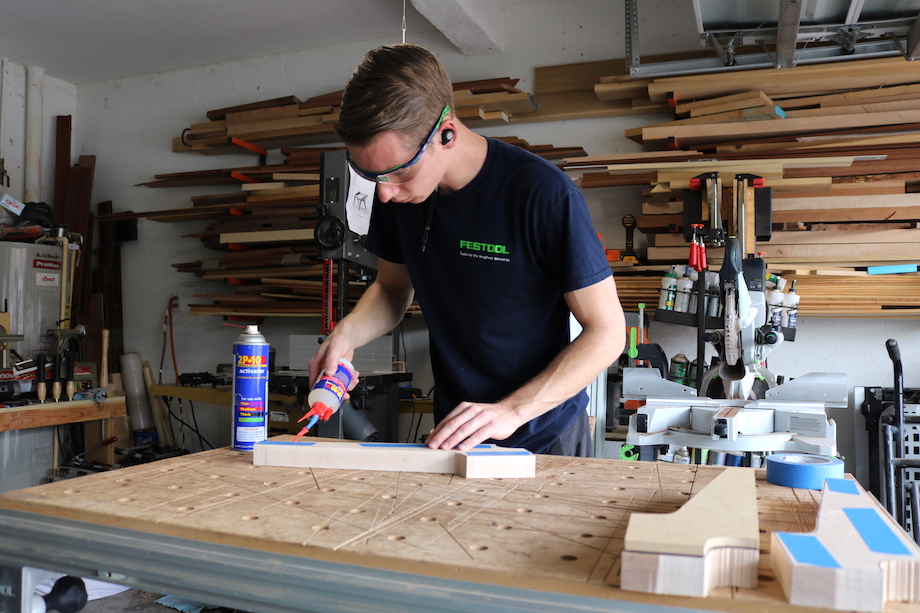

To be sure the template doesn’t move, I use three strips of blue tape on the material, and three strips on the template. I apply a small drop of CA glue to each piece of tape on the workpiece.
I don’t find the need to use an accelerator spray, but it does speed things up. Skipping the accelerator allows me a little extra time to adjust alignment.

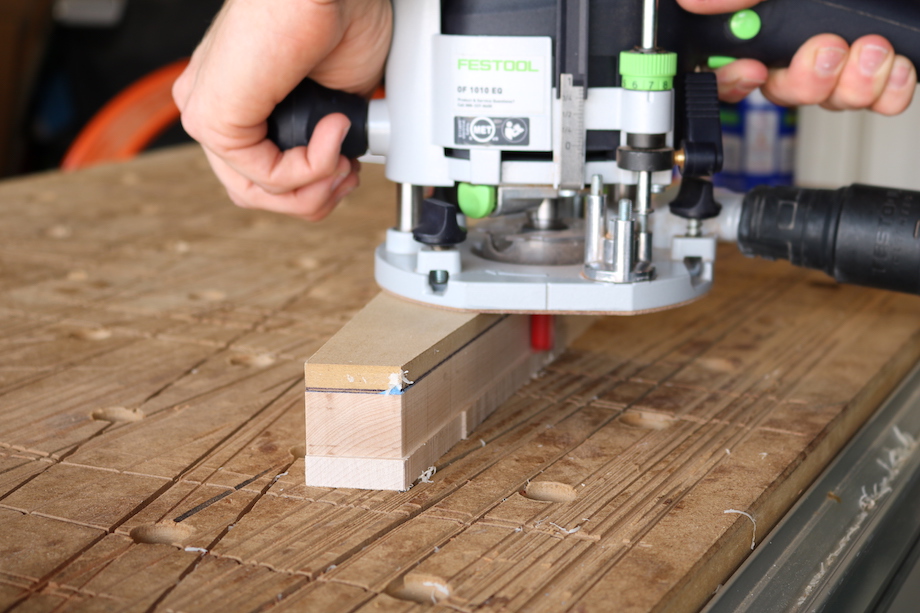

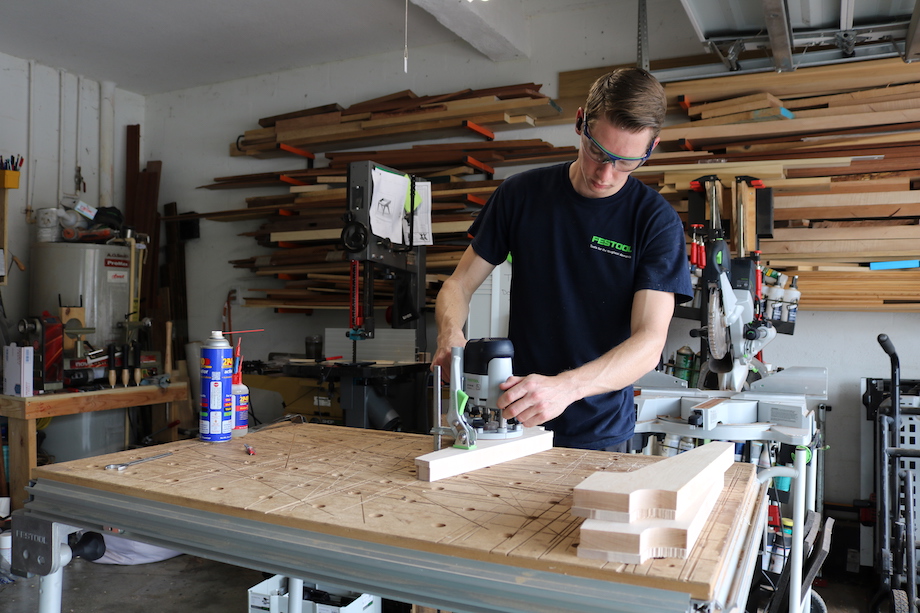

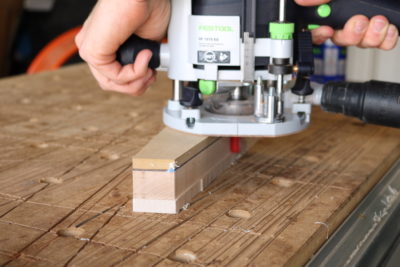

I start routing with a 1/4-in. top-bearing bit, which follows the template.

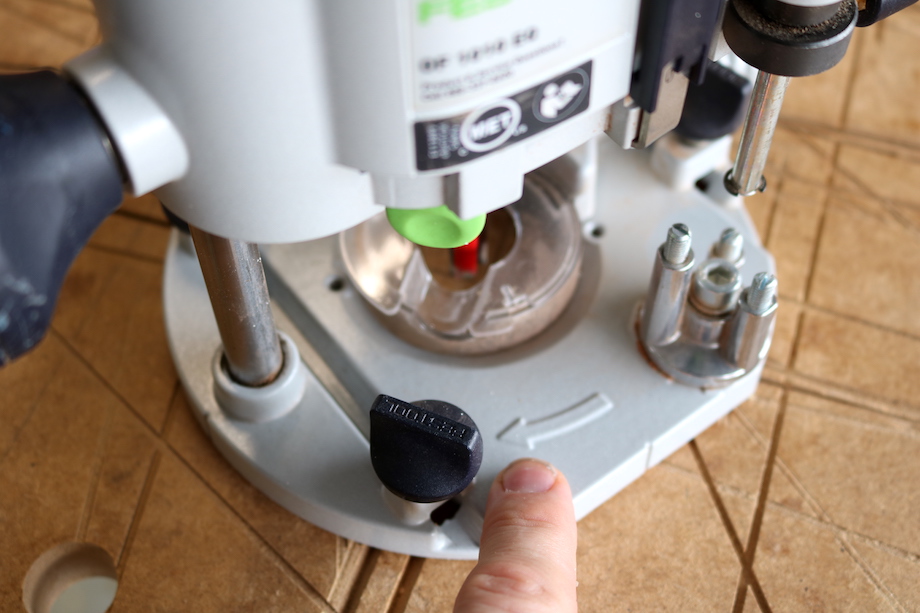

When I plunge the router for this pass, you’ll notice I’m removing only half of the material stock, which is why I finish the process with a bottom-bearing bit. |

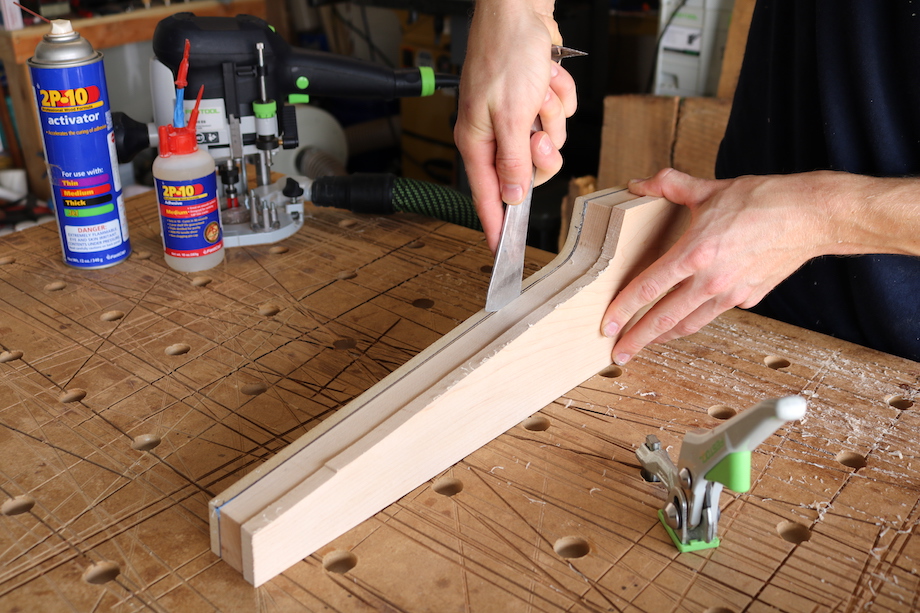

With one side of the workpiece finished, I carefully pry off the template with a sharp, thin, flat bar. |
A 5-in-1 painters tool works, too. Anything that won’t mar the workpiece or damage the template. The glue and blue tape actually break free fairly easily, and the best part is, there’s no residual glue.

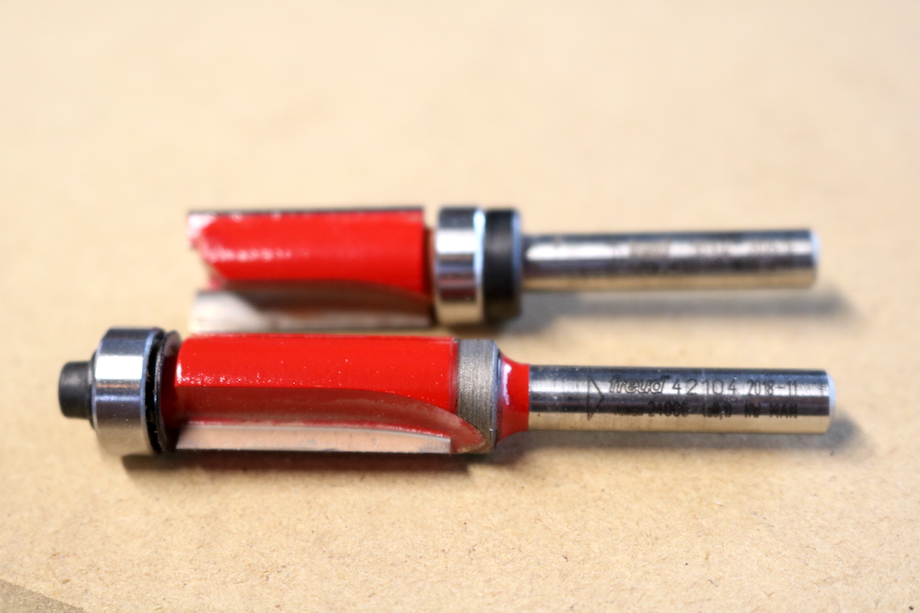

After I’ve run the top-bearing bit on all the legs, I switch to the bottom-bearing pattern bit—really just a flush-cutting bit. Of course, if you have two routers you can complete each leg at one time. The bottom bearing rides on the smooth edge cut previously by the top-bearing bit.
In the photograph above, it may appear like the template is still attached to the workpiece, but that’s just the raw edge that hasn’t yet been cut by the bottom-bearing bit.

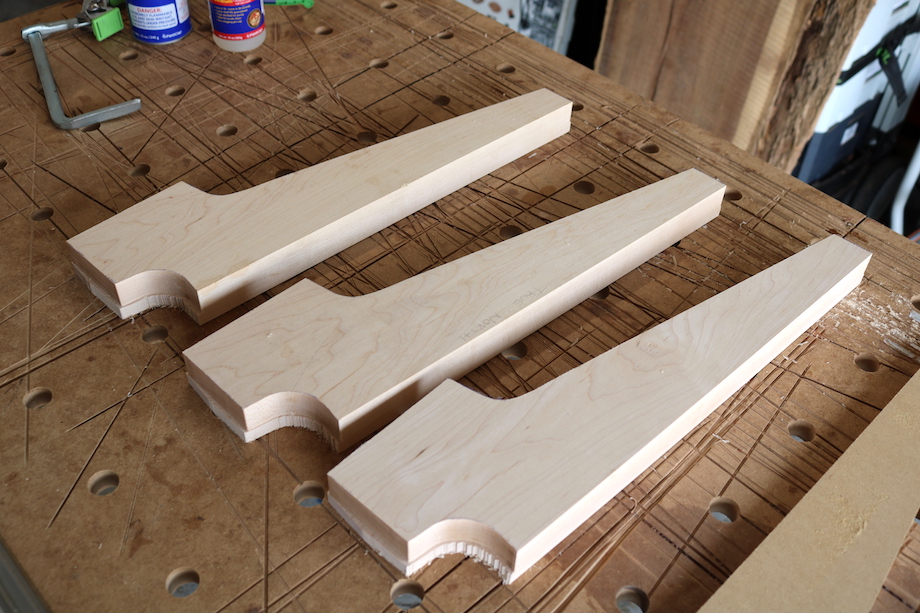

The end result is three legs that are all identical in every way—as if they were cut by a CNC machine, and all by using just ONE simple template and two router bits!
Of course, more tools are always better. If you have a larger router or a router table, you can use larger bits to remove the stock. But I know lots of woodworkers, like myself, with limited space and limited budgets, which makes this technique accessible to everyone.
If you enjoyed this short article, please let me know! It’s my FIRST published article. Any questions, don’t hesitate to ask in the comments section!
•••
