Making a Murphy Bed

Murphy Beds are incredibly popular, probably because they help us use space more efficiently, and today, with living space at a premium, that’s critical. It sure was for me. I wanted to use the guest cabin I built down by the river as a yoga studio—after all, guests aren’t that common, but yoga is.

(Note: Click any image to enlarge)

And with that queen-size bed in the way, there just wasn’t enough floor space!

There are a variety of different companies that offer Murphy bed plans, kits, and complete units, some with remote control! I opted for a simple solution and bought a kit from Rockler that’s manufactured by Create-A-Bed.

This was the very first time I had ever purchased a kit and built something from a set of plans; trust me, I was concerned. After all the foreign installation instructions I’ve read over the years, I didn’t have a lot of confidence that the plans would be adequate. But I was dead wrong. The kit and the plans were easy to follow—they even included a material cut list, and the measurements were spot on, within 1/32 in.

The plans came with templates and a plywood cutlist that helped get the most from the sheets of VG Douglas fir I used. Between my table saw and track saw, I had the plywood cut and started laying out the hardware.

The first step was cutting out all the pieces. The bedframe sides had to be cut from plywood, so that they’d be strong enough to support the pivot hinges and the gas struts, without splitting. And those sides had to be cut with radiuses at the bottom, so they could pivot inside the cabinet, which meant…edgebanding.

Once I had the bed frame sides banded, I started laying out and preparing for the hardware.

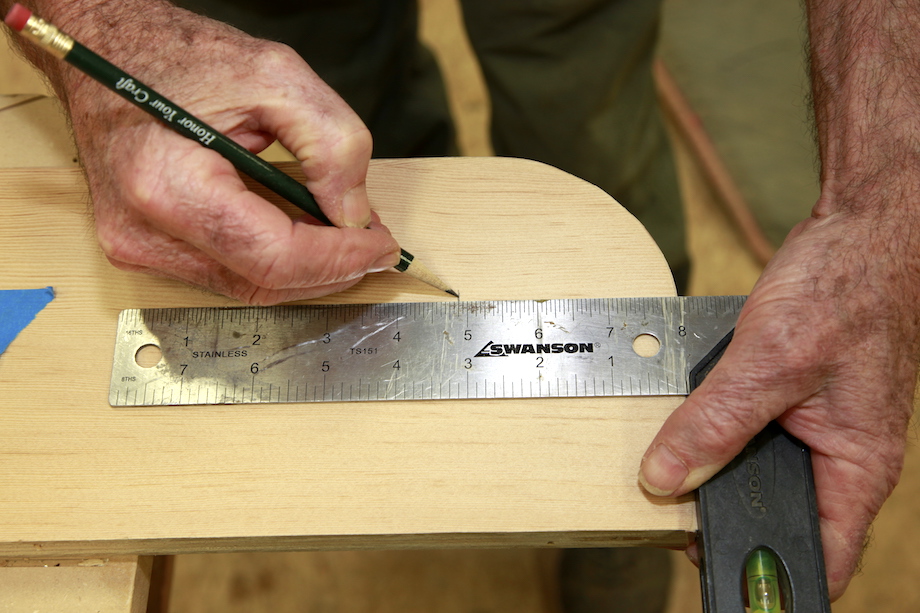

The plans were extremely precise. I followed them carefully.

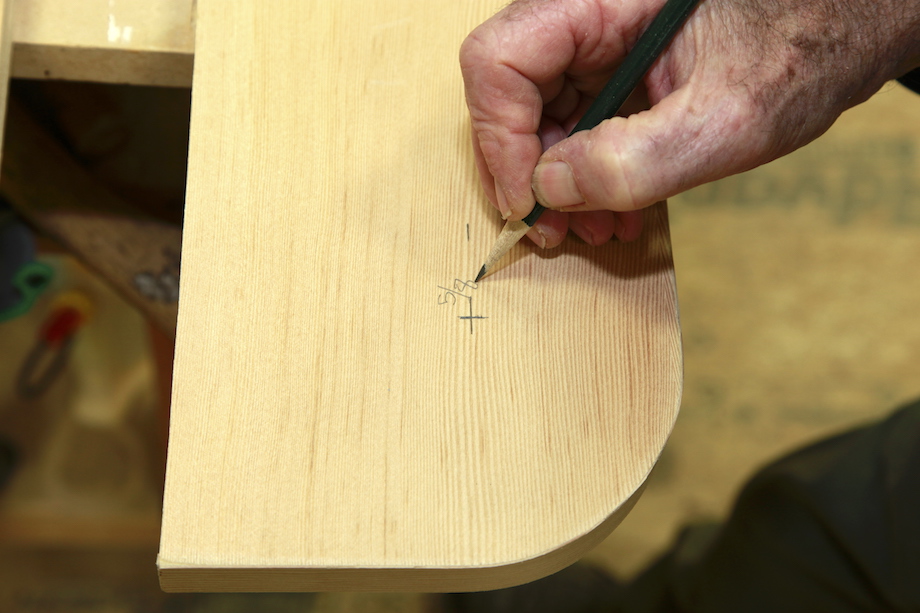

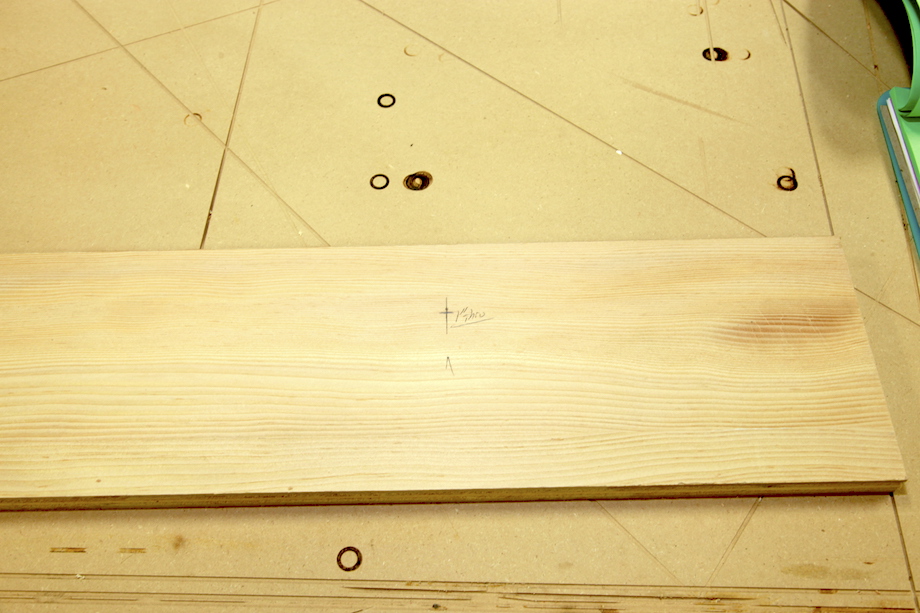

And I labeled every center mark.
Some of the holes had to be cut straight through.

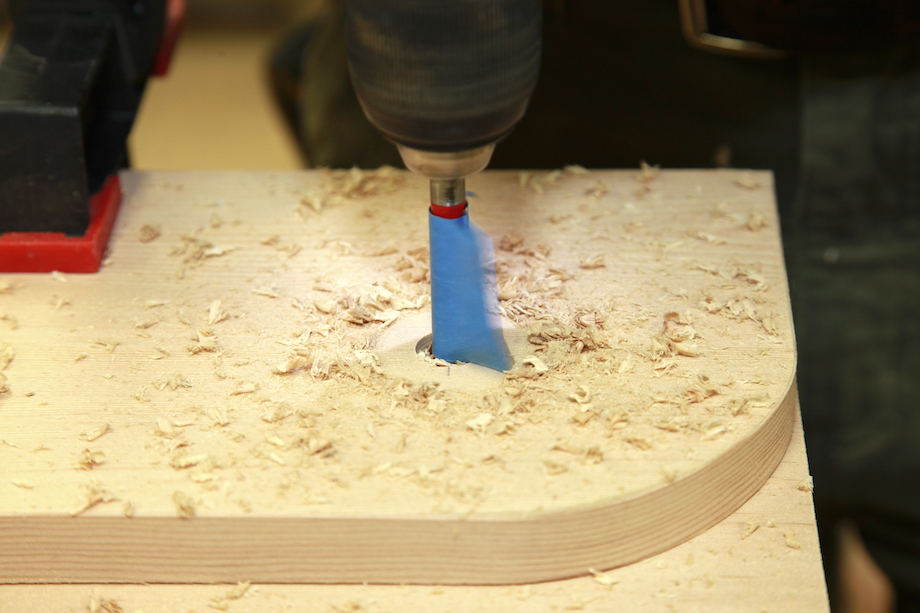

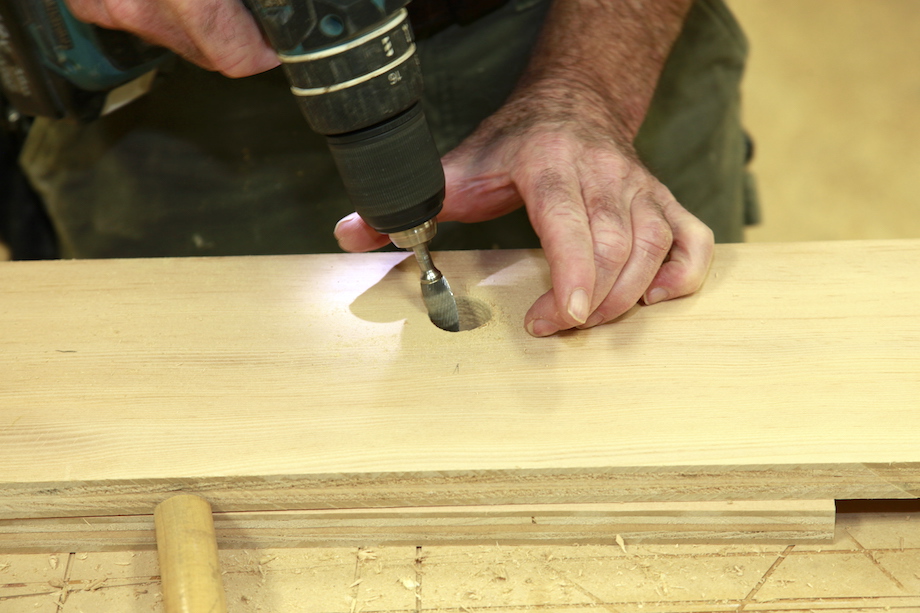

Some of the holes had to be drilled to a specific depth.

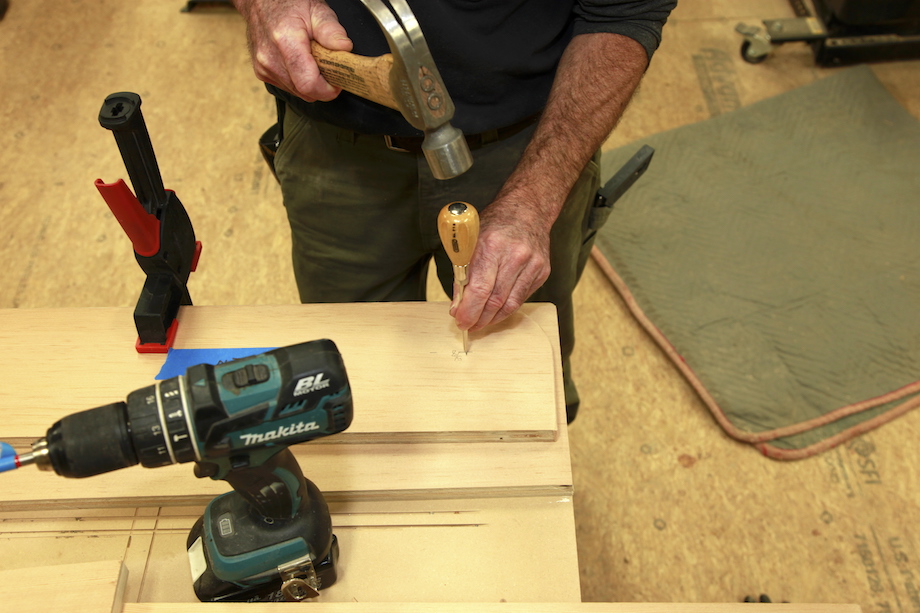

Using an awl ensured that my bit entered the wood exactly at the marked center point.
Following the instructions, I chamfered the top edge of the hardware mounting holes just slightly, to allow for the welds.

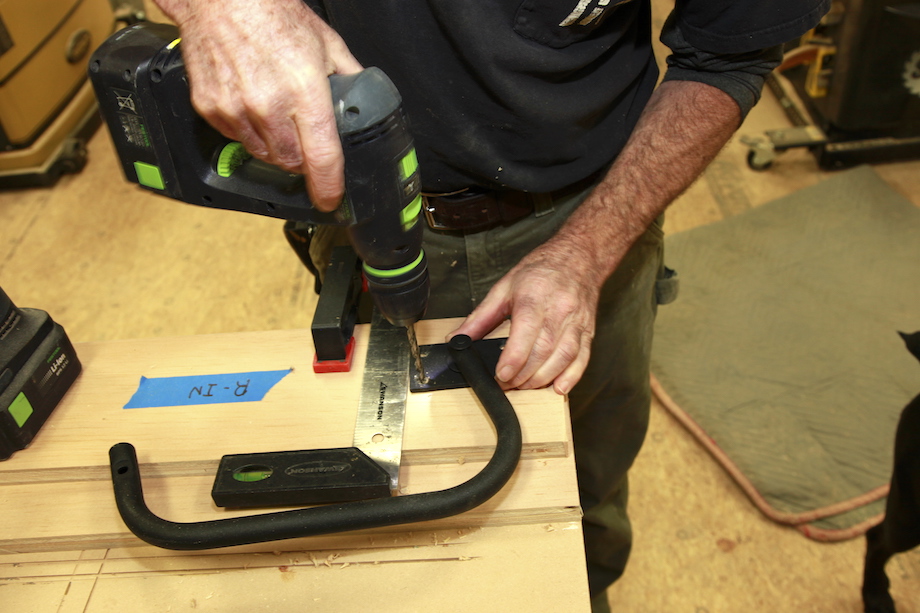

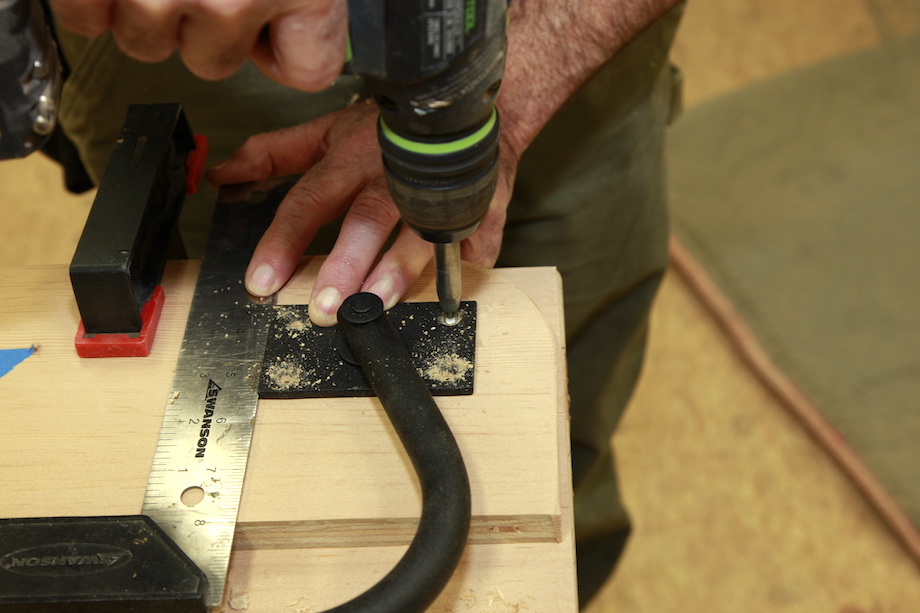

A tri-square helped align the hardware plates. Wood screws were used for half the mounting hardware, which I predrilled with a Vix bit.

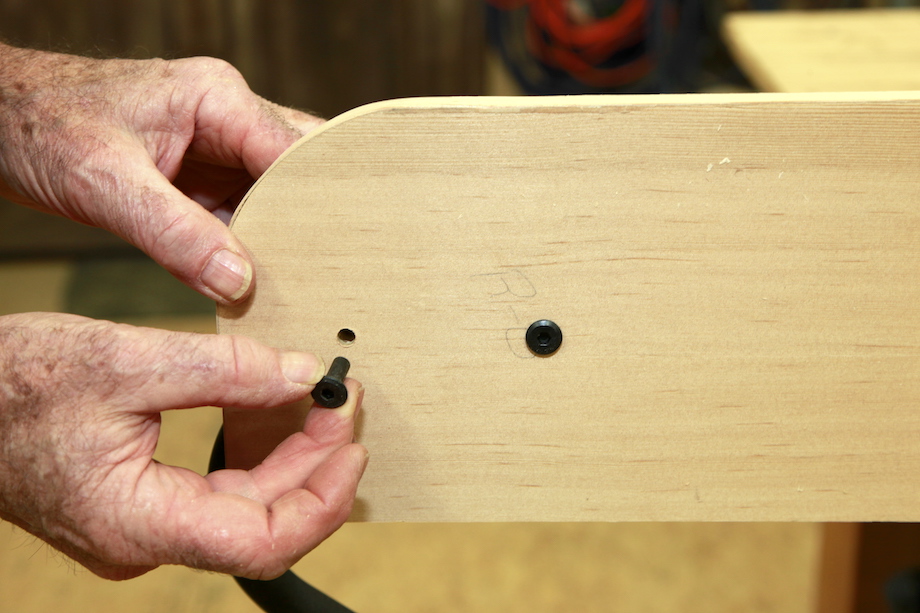

I drilled through-holes for the sex-bolts that made up the other half of the fastening system.

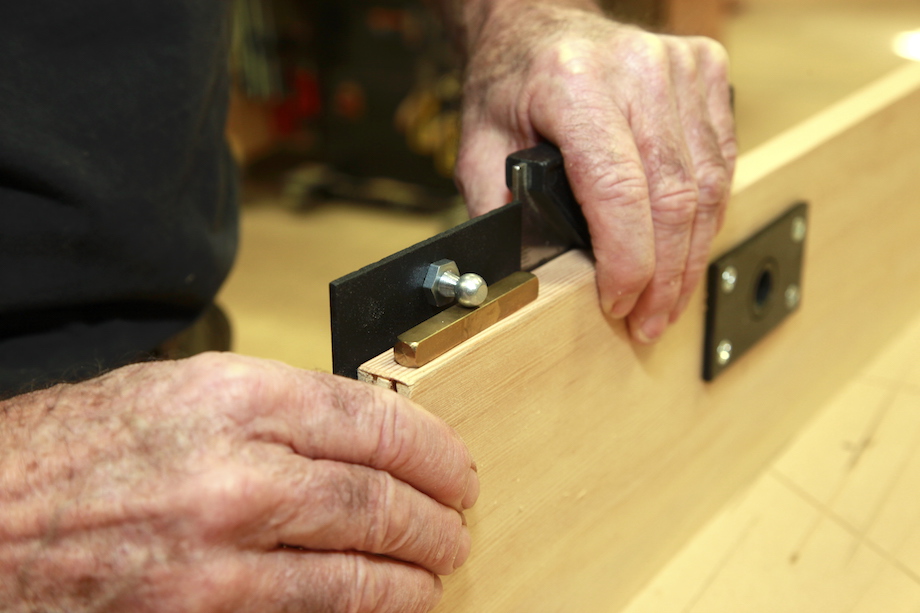

I positioned the gas strut plates exactly as the instructions directed, using a brass spacer to carefully locate the mounting plates.

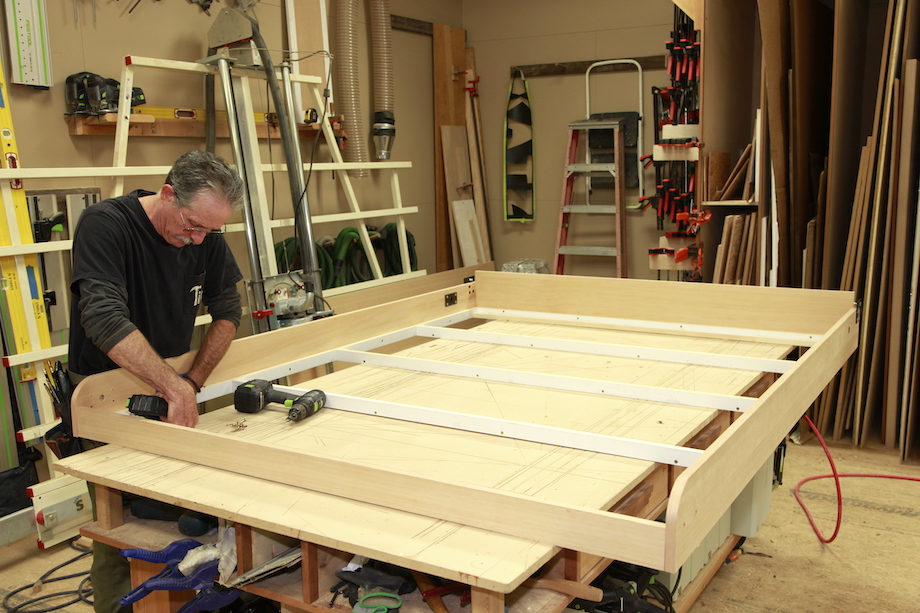

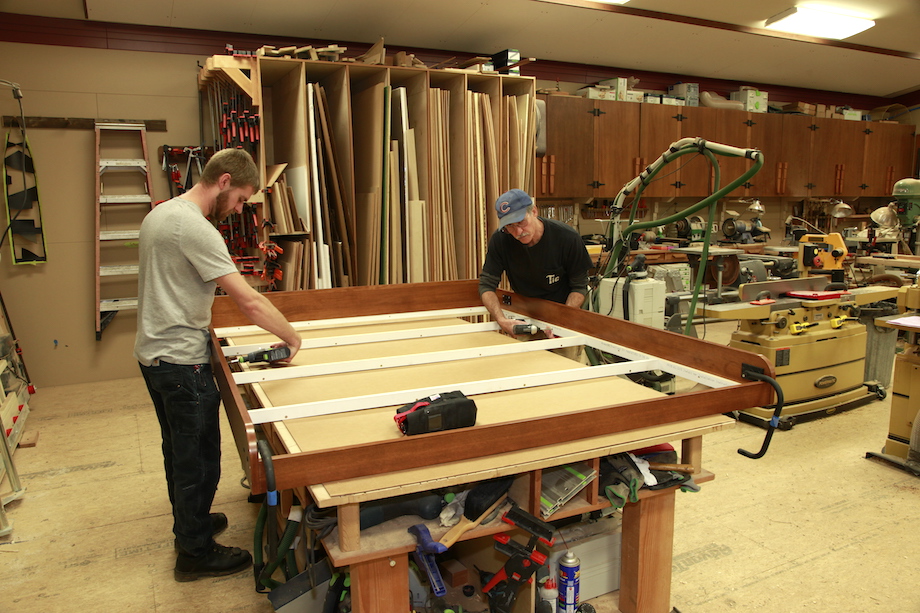

With the hardware mounted to the two side panels, I was ready to assemble the entire frame, including the backing for the front panel; the underside—forming a slim torsion box—supports the bed.
Terrified that I’d make a mistake, I pre-assembled everything to be sure I hadn’t missed any critical detail—I hadn’t—before I pre-finished the sides. Then I re-mounted the hardware, and assembled the bedframe permanently.
The instructions were very clear on installation, too…

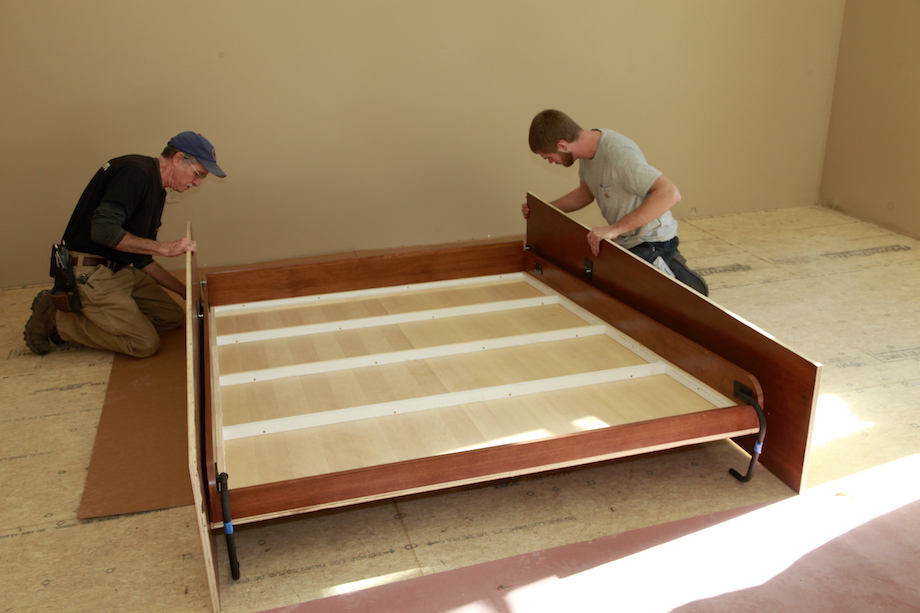

We slipped the cabinet sides on over the pivot hinges…

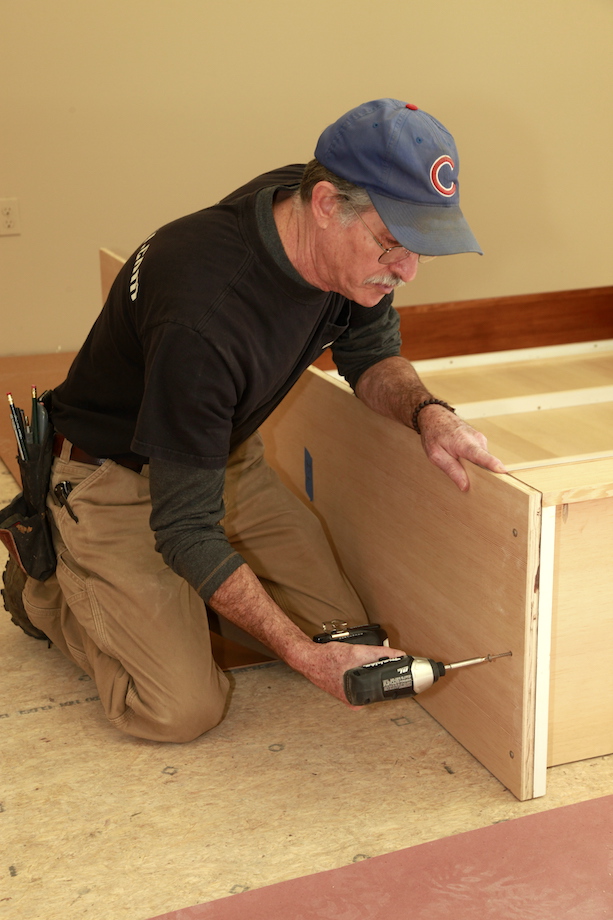

Then fastened the top and bottom of the case.

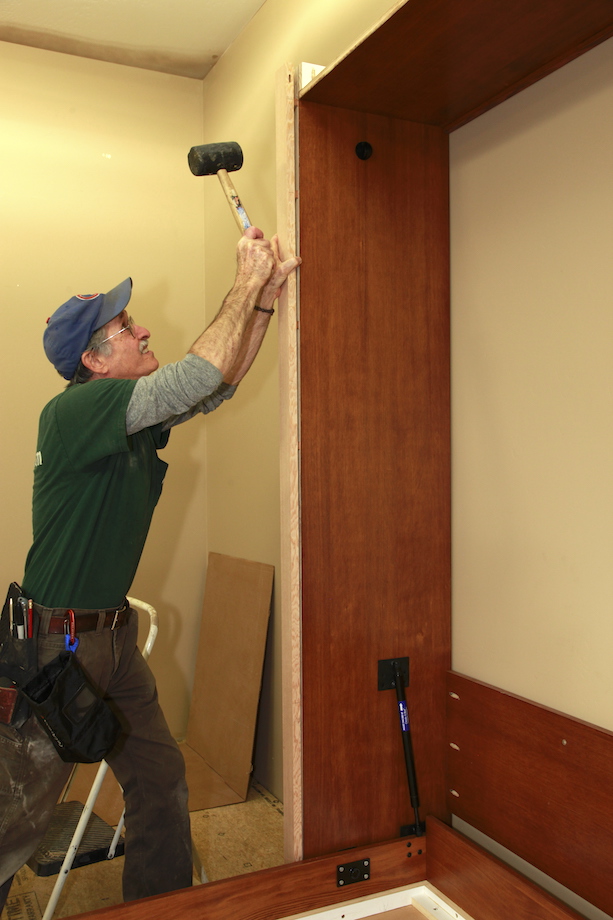

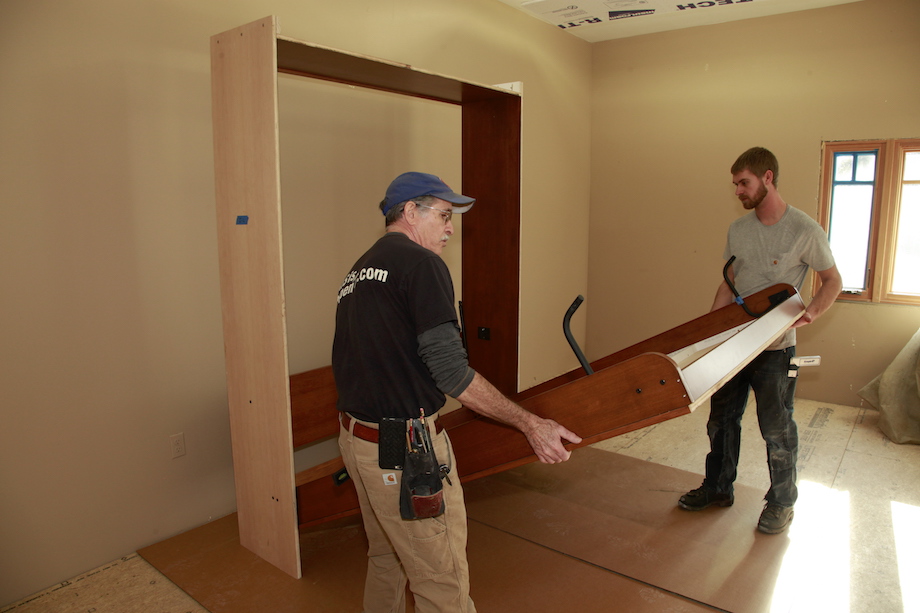

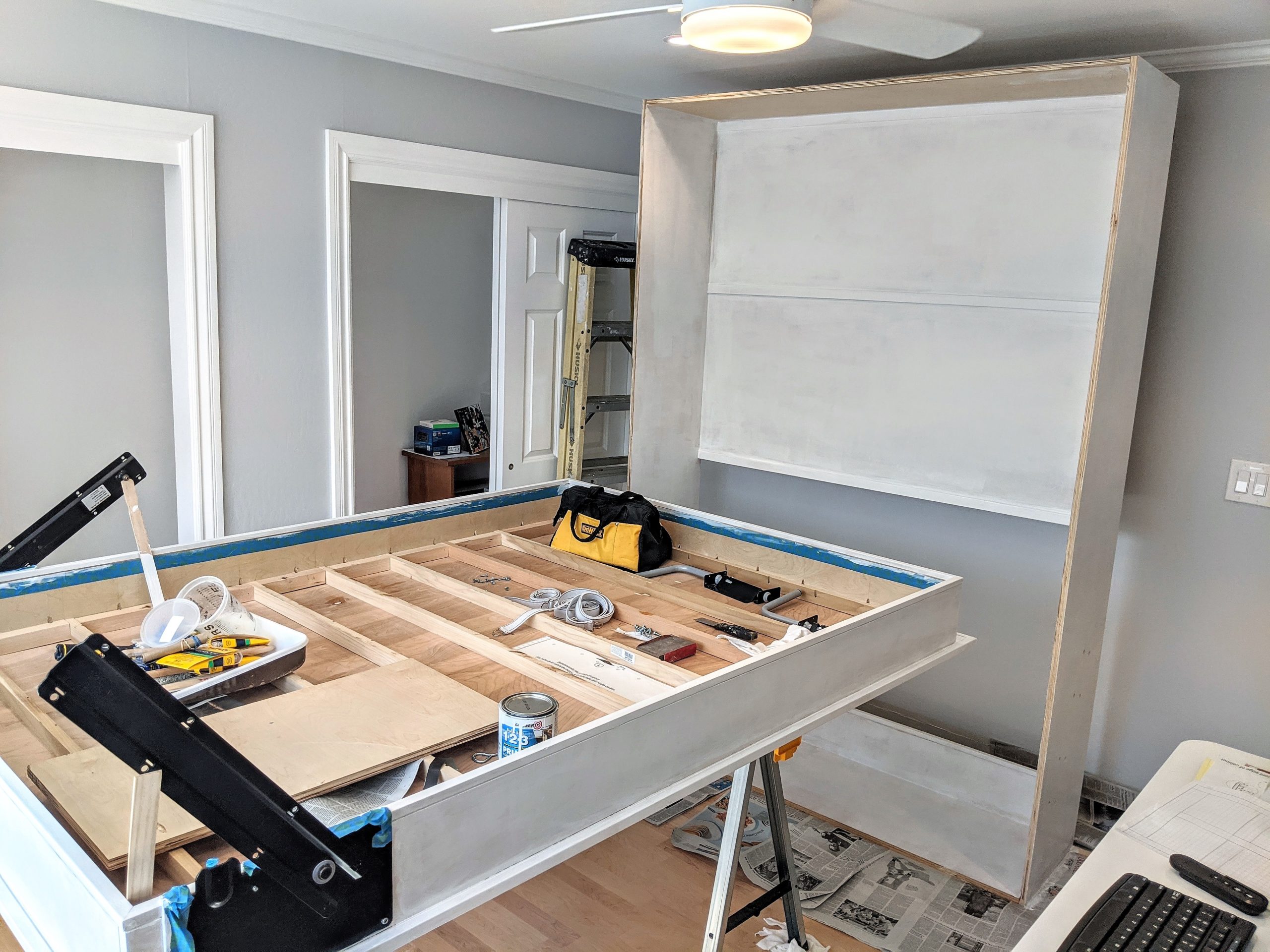

I set the bed up temporarily in my shop, fastening the cabinet frame to the wall, and then pivoted the bed frame up into the cabinet. I designed the cabinet sides with both an inner and outer panel, which is why the outside of the inner panel wasn’t pre-finished.

Doubling up the side panels allowed me to increase the width of the stiles, while keeping them flush to both the inside and outside of the cabinet sides.

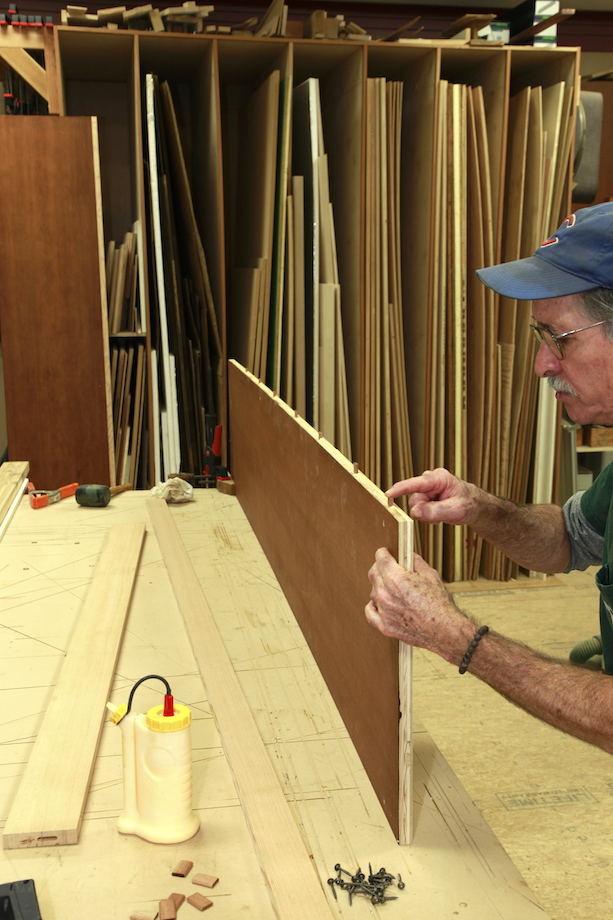

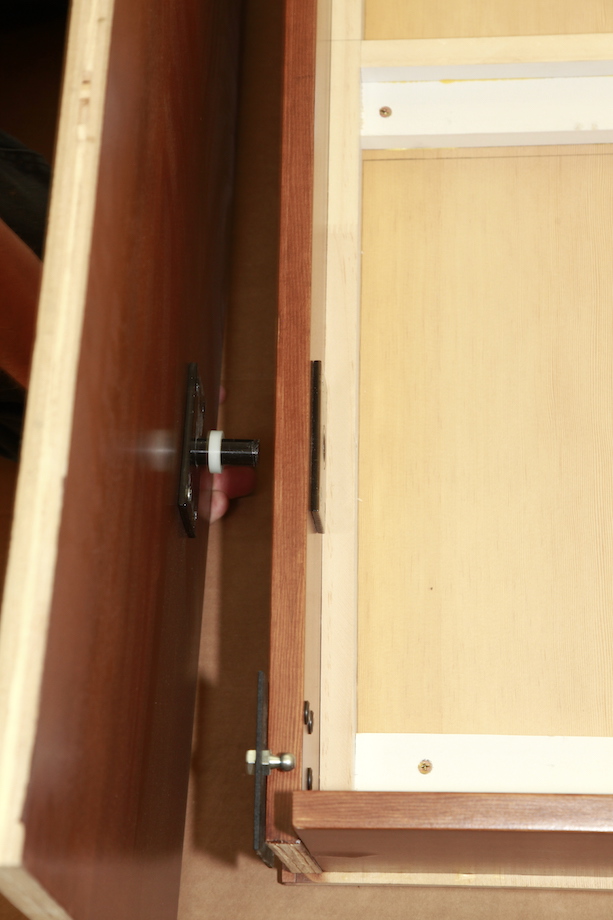

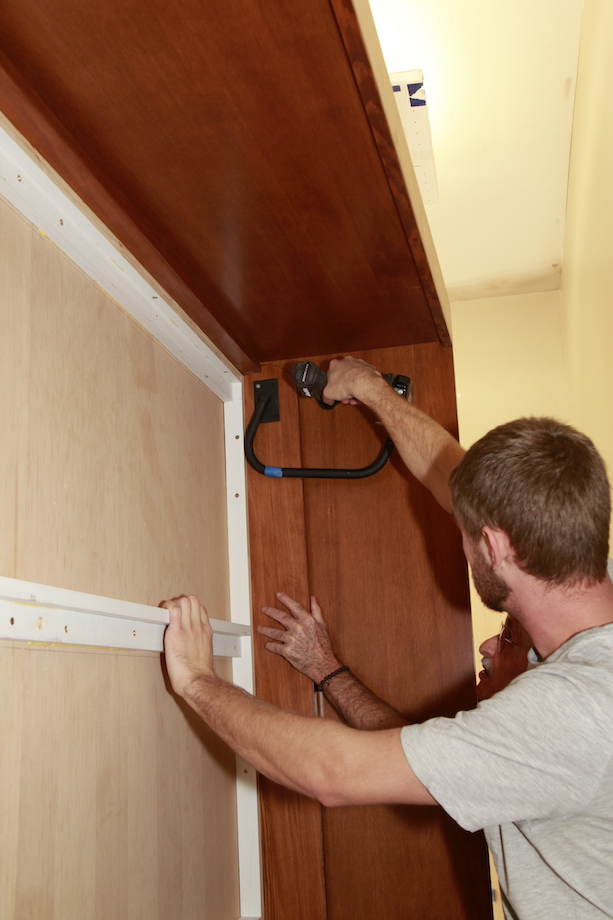

The last bit of hardware—the bed-frame stops—must be installed with the cabinet away from the wall. We mounted the stops exactly according to the instructions. I was surprised that the face of the bed frame panel was perfectly flush with the cabinet sides. The rest of the job was woodwork. I set dominoes in the outer side panels…

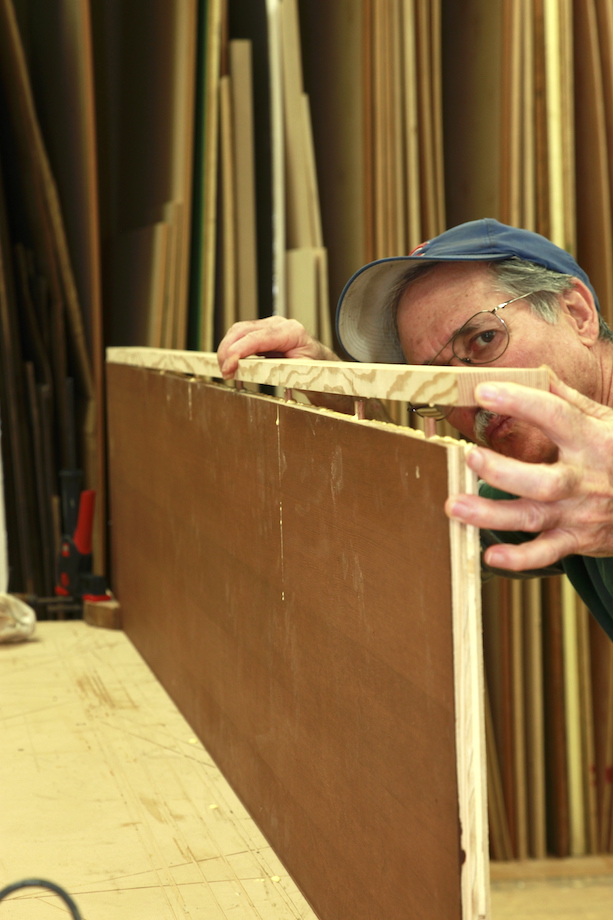

…which helped align the face frame stiles flush with the outside of each external panel. Pocket screws secured each stile. Look closely and you’ll also notice pocket screws in the temporary backer securing the cabinet to the wall, too! One day, hopefully soon, I plan to remove that panel and replace it with a full-size panel, maybe with a cloud lift pattern. But that’s another project.

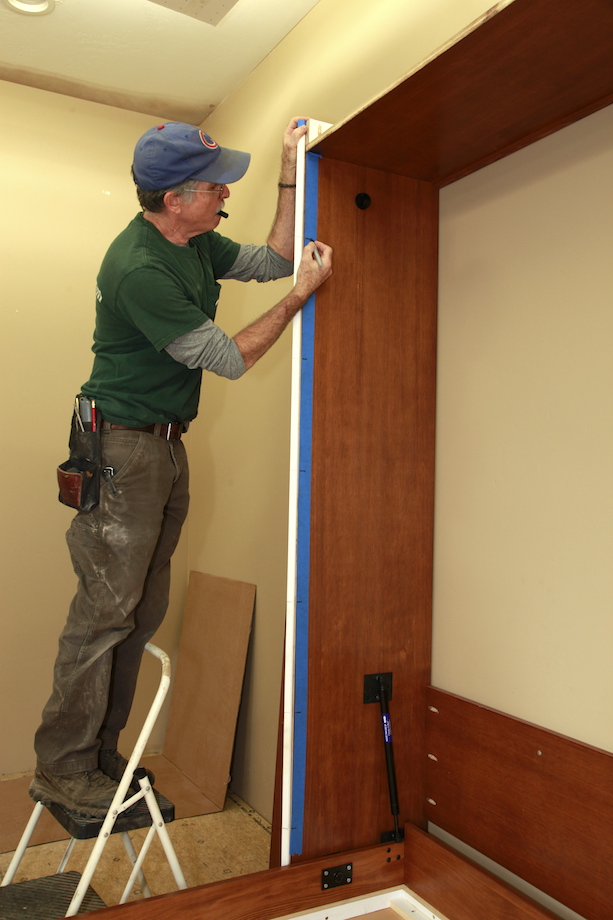

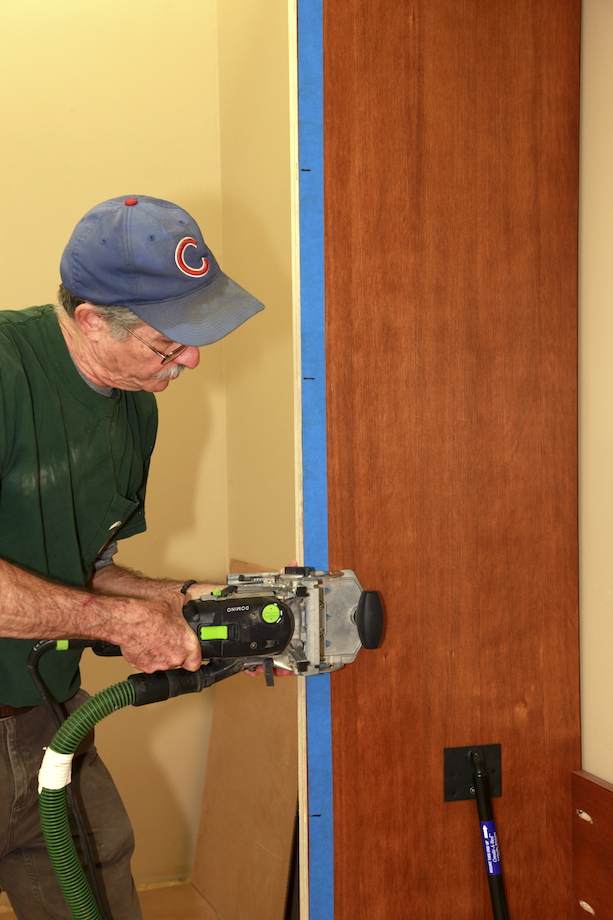

I used a story pole to align the dominoes for the stiles on the inner sides and cut those mortises in place.
The finished side stiles slipped over the dominoes in the inner sides, creating a rigid panel, with stiles flush on both faces.

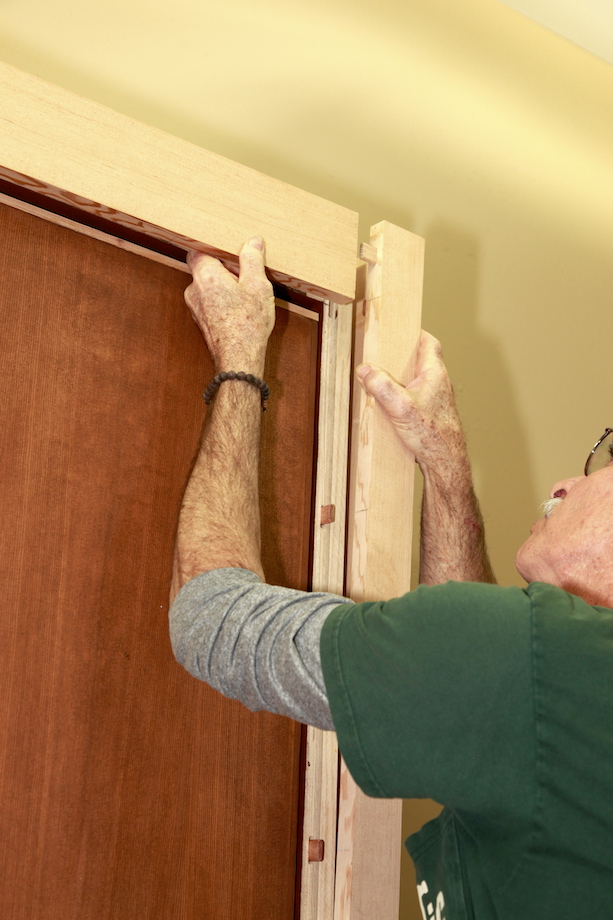

On the opposite side, I assembled the top rail and the finished side simultaneously, locking the faceframe together.

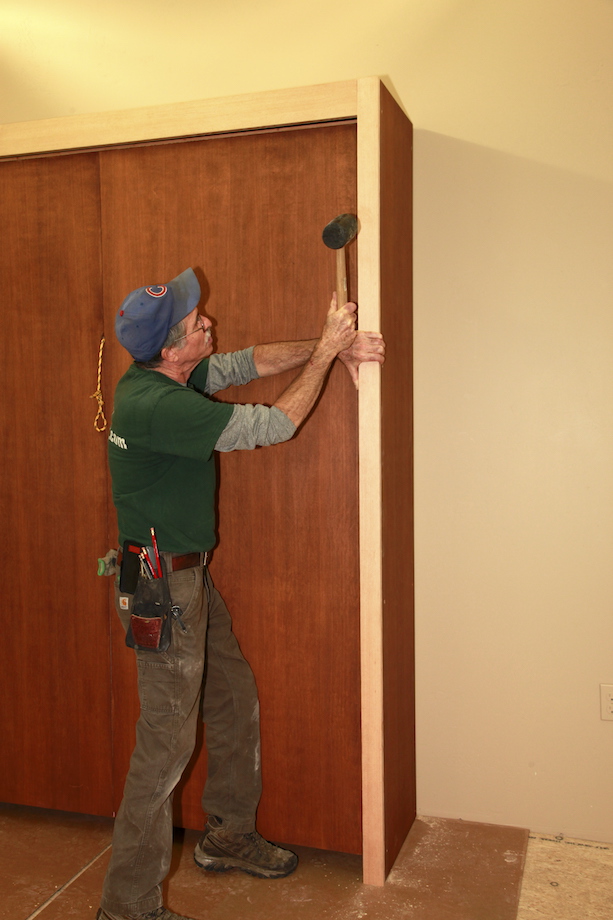

Then I nudged the faceframe in place, over the dominoes.

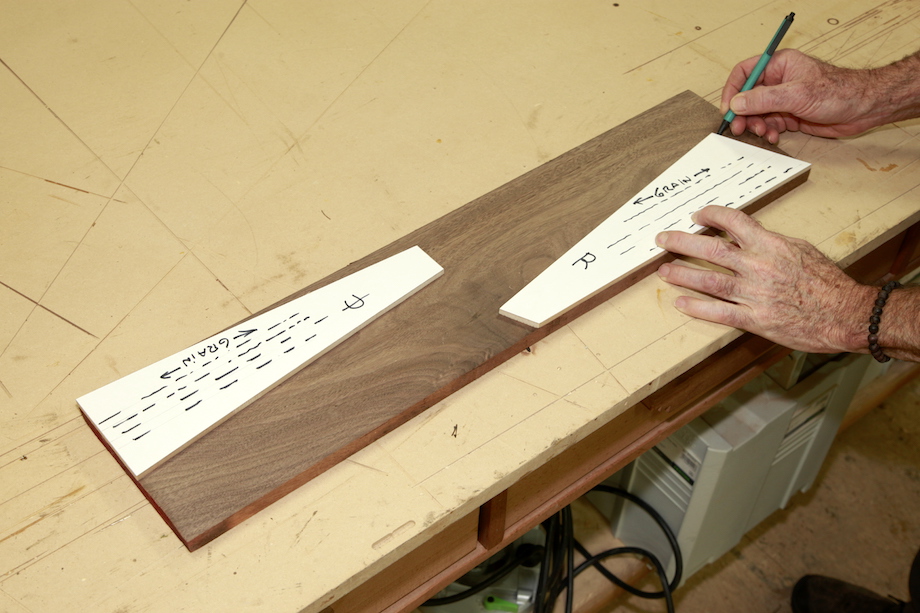

All the decorative elements for the cloud lift and the sunrays were cut from full-scale templates that Todd Murdock generated in SketchUp! All I had to do was watch the direction of the walnut grain.

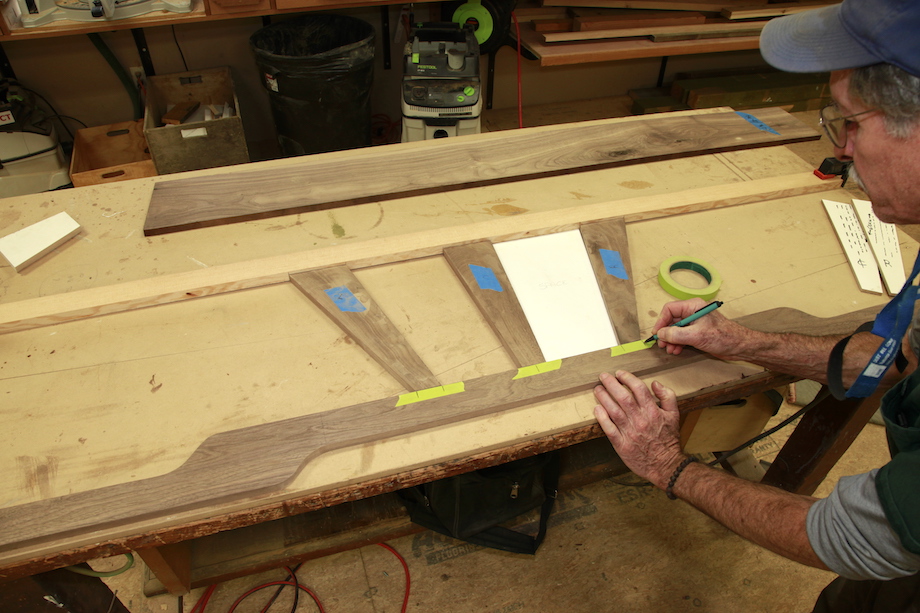

After sanding and easing the edges with a 1/16-in. radius round over bit, I laid out the location of each sunray.

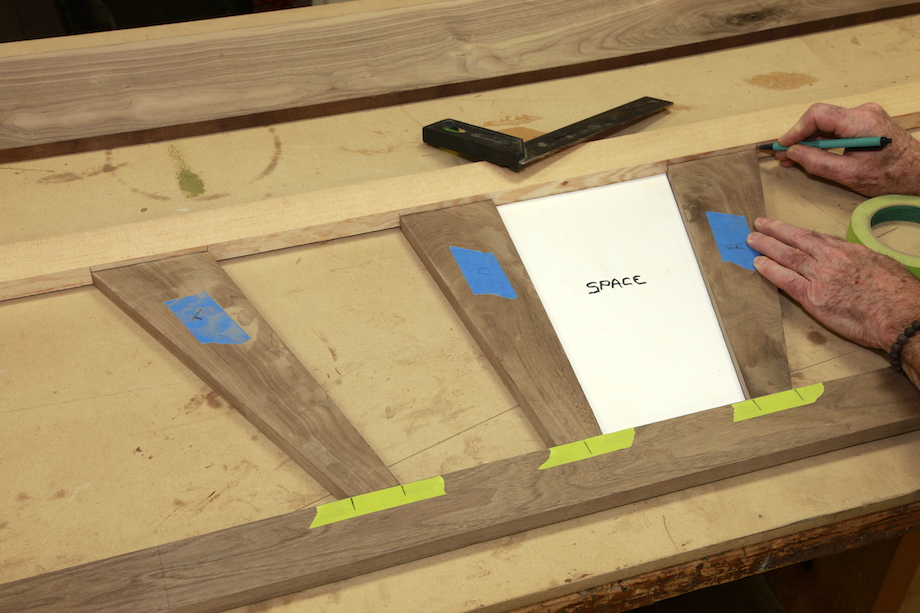

Todd even provided a template for spacing those rays!

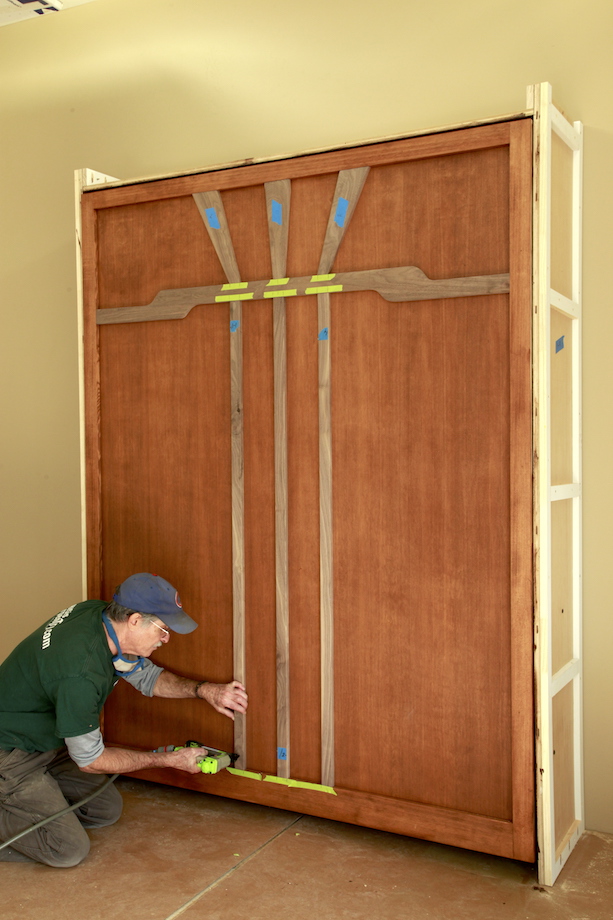

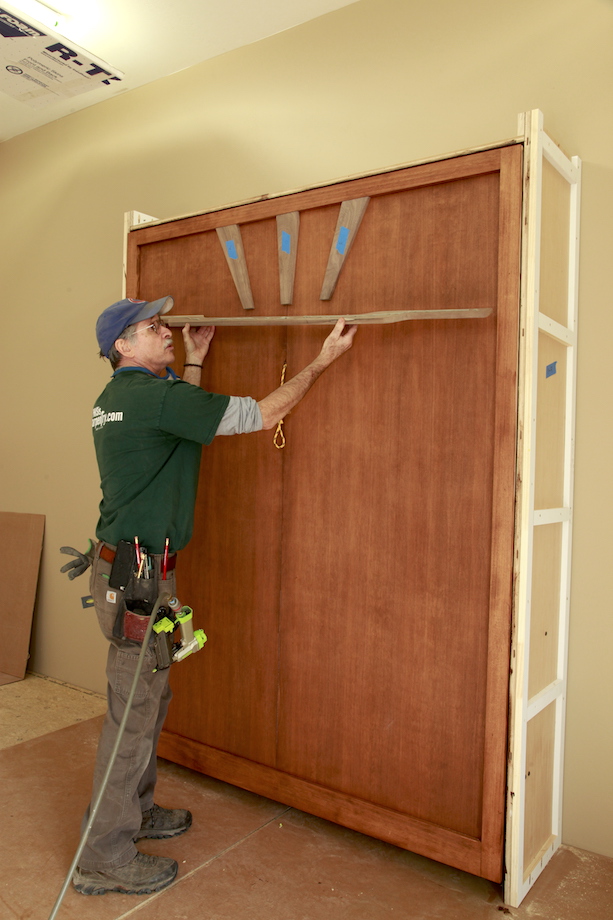

I used the same spacer template to align the sunrays on the face of the cabinet, fastening them with TiteBond II and 23ga pins, before applying the cloudlift.

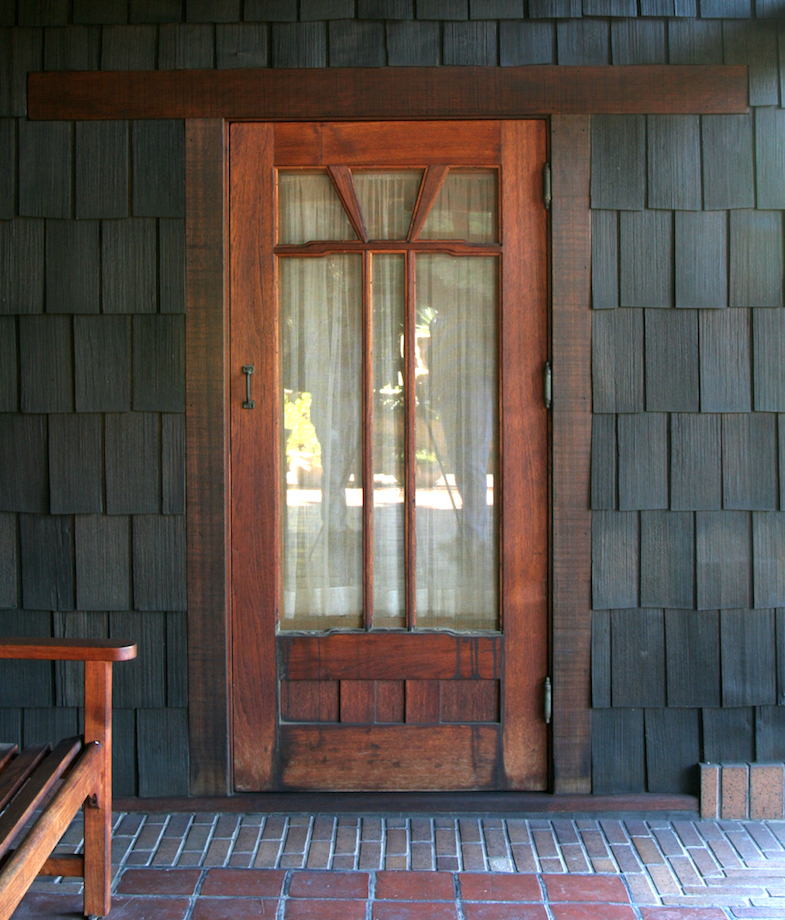

I borrowed this design from the Gamble House screen doors, where the sunrays break through the cloudlift and extend to the bottom rail.

Installing those long slender rays left me with a pretty special feeling.

Of course, it was more than a year later before I could carve out enough time to finish that built-in cabinet!

The Murphy bed was first introduced by William Lawrence Murphy in 1900 near San Francisco. To learn more about Murphy beds, read this article.
