Elliptical Tub Surround

Between my cabinet shop and remodeling company, I have the opportunity to work on a lot of fun and challenging projects. I recently tackled a project in which we converted a home office into a master bathroom. The interior designer on the project threw us a real curveball—(almost) literally!

The soaking tub in the plans called for custom paneling, and the location of the tub in this bathroom had a real impact on the space (hence the evolution of the design). The paneling started out square (no problem), and then became a very gentle, shallow curve (again, not too big a deal), and then the tub became an ellipse (game on).

I’d never done this type of work before, but I’ve read a lot about it, and I watched a friend make some curved panels for an oak living room last year. Sometimes you just have to jump in and do it, trusting that your knowledge and experience will get you through. That’s basically what I did! I thought I would share with TiC readers what worked and what didn’t.

I don’t have the designers’ drawings to post here, but it’s basically a curved frame and panel (five equal panels) about 20 in. tall following the front of a tub.

Whenever possible, I like to make full-scale layouts of what I’m building. In this case, a full sheet of plywood fit the bill.

I was able to draw the required ellipse by measuring the major and minor axes from the tub template supplied by the manufacturer. My plan of attack was to make the plywood tub deck first, and then build the walls under the deck. The wall would then serve as the base for the paneling. It would simultaneously be the form for gluing the curved rails and moldings, as well as the framing for installing the entire piece.

There are many ways to draw an ellipse. I’ve used the string method before, but I was looking for a more exact method. At one point, I was shown one method of laying out a track and using a trammel arm with pins (see photo, below). This technique is very similar to the the router setup Mike Sloggatt used in his article on the ellipse.

(Note: Click any image to enlarge)

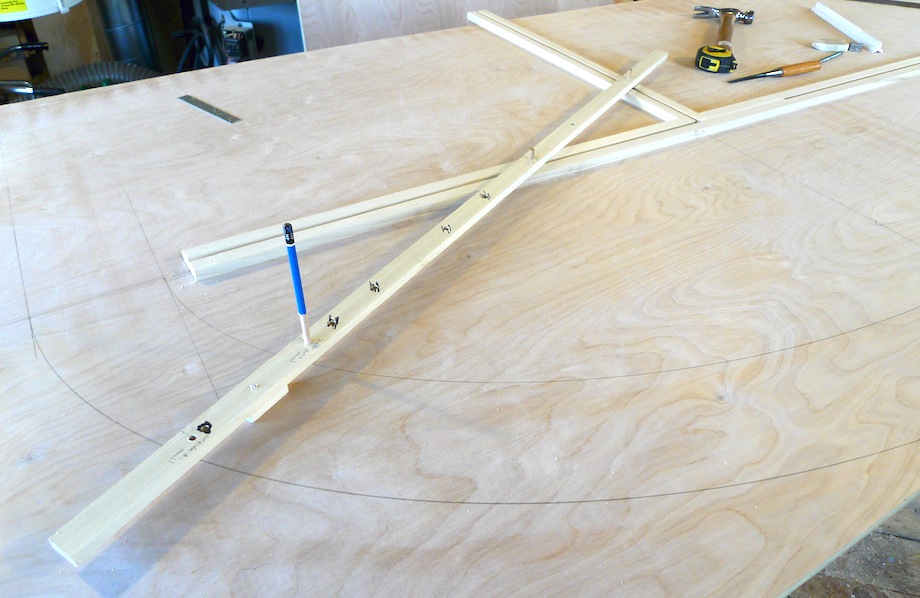

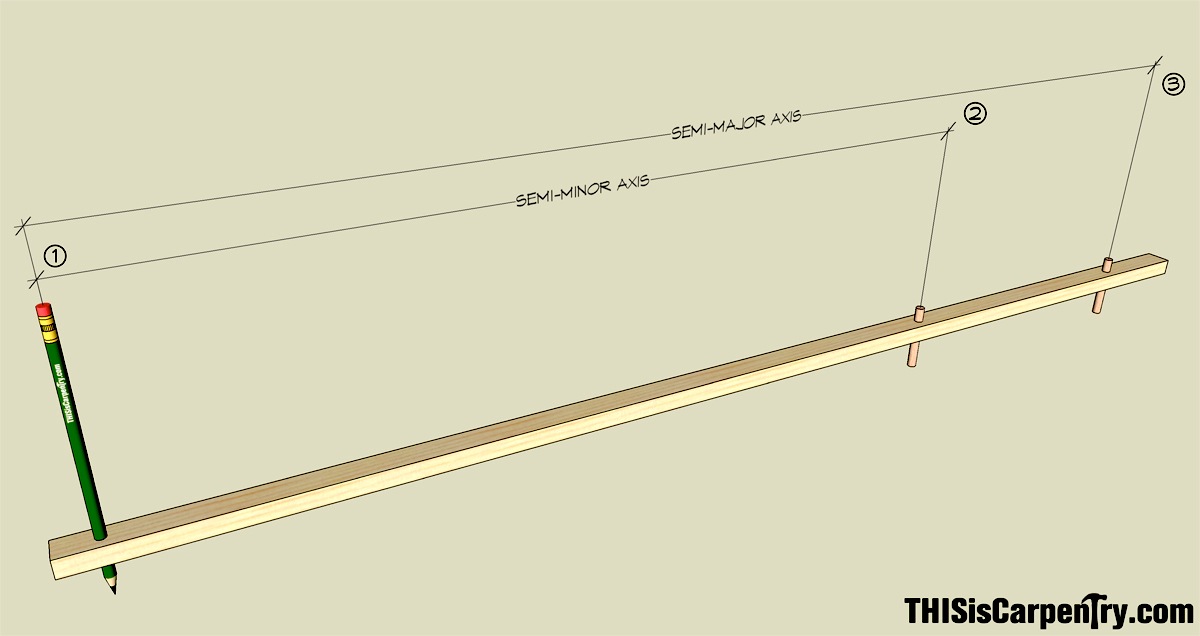

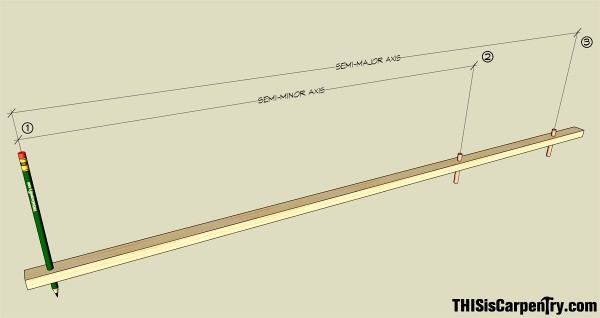

This method involves three points to lay out the trammel arm:

1.     The pencil point
2.     The semi-minor axis (semi-minor axis = 1/2 of the minor axis)
3.     The semi-major axis (semi-major axis = 1/2 of the major axis)

Using the drill press and a 1/4-in. drill bit, I first drilled a hole for the pencil (I tapped the first inch of the pencil through a steel dowel plate to make it 1/4 in.). I drilled a second hole for a 1/4-in. dowel the length of the semi-minor axis away from the pencil. I drilled the third dowel hole the distance of the semi-major axis away from the pencil. The dowel representing the semi-minor axis rides in the long horizontal track, and the dowel representing the semi-major axis rides in the vertical track.

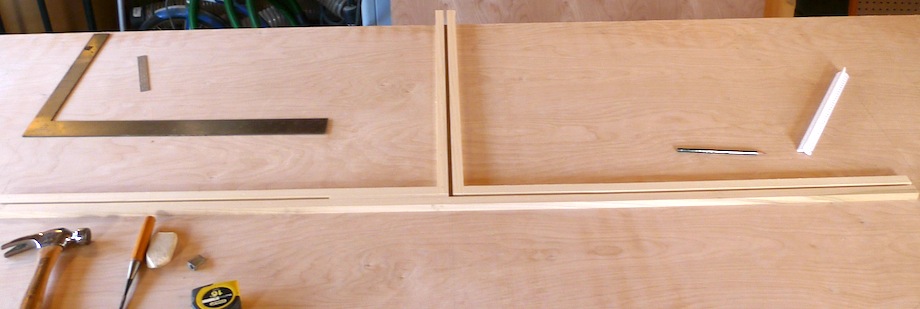

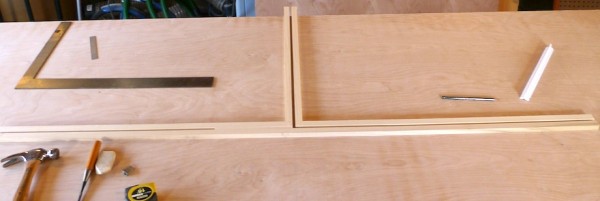

The first step after making the trammel arm was to draw the center lines along both the lengths and widths of the sheet. I then brad-nailed some thin rips of poplar to the plywood, keeping the center lines in the middle of the track and making the track the thickness of the dowel I was going to use in the trammel arm. I could have used the dowel itself, but I risked creating a wavy track by nailing the poplar strips at points along the line. Instead, I marked a line parallel to my center line, and half the thickness of my dowel. I nailed one side of the track to that line. I then used my calipers to gauge the exact thickness of the dowel and milled a rip of wood with the thickness planer until it was exactly 1/64 in. thicker than the dowel. I used that longer strip as a spacer to ensure that the second poplar strip was perfectly parallel to the first. The extra 1/64 in. allowed the dowels to move smoothly. A little wax in the track helped as well.

The most important point to keep in mind during this operation was the center line. You’ll see the importance of this as the work progresses. Unlike a circle, when you shift a molding over the face of an ellipse, it no longer follows the form, and you end up with a gap. Every part was laid out along the center line throughout the project to make sure they all followed the changing curve of the form.

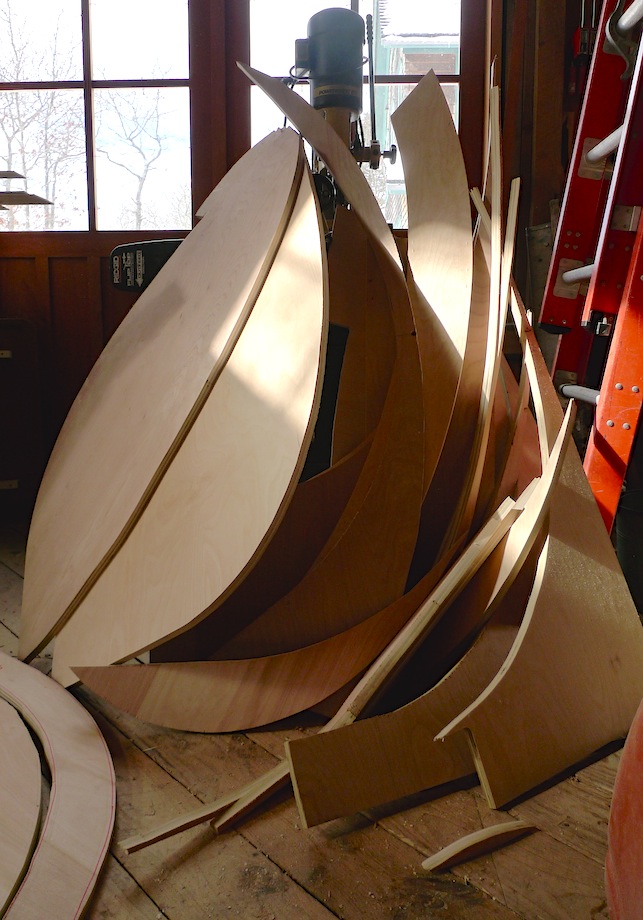

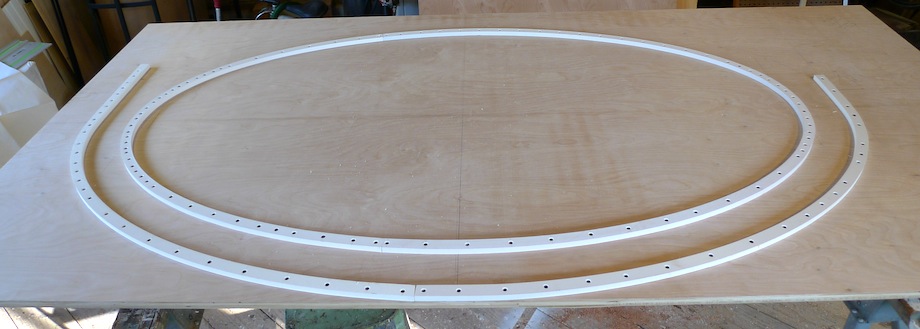

I then used my go-to method for routing curves with AZEK. I’m always scavenging rips of AZEK from job site dumpsters to use in the shop. With a little help from a heat gun, and an extra set of hands, I screwed the AZEK to the plywood following the curve. I cut the waste with the jigsaw, and finished the cut with a router using a bearing-guided bit. I now had a full-scale pattern for the tub top.

I made the wall plates from the top pattern with the same router and bearing set-up.

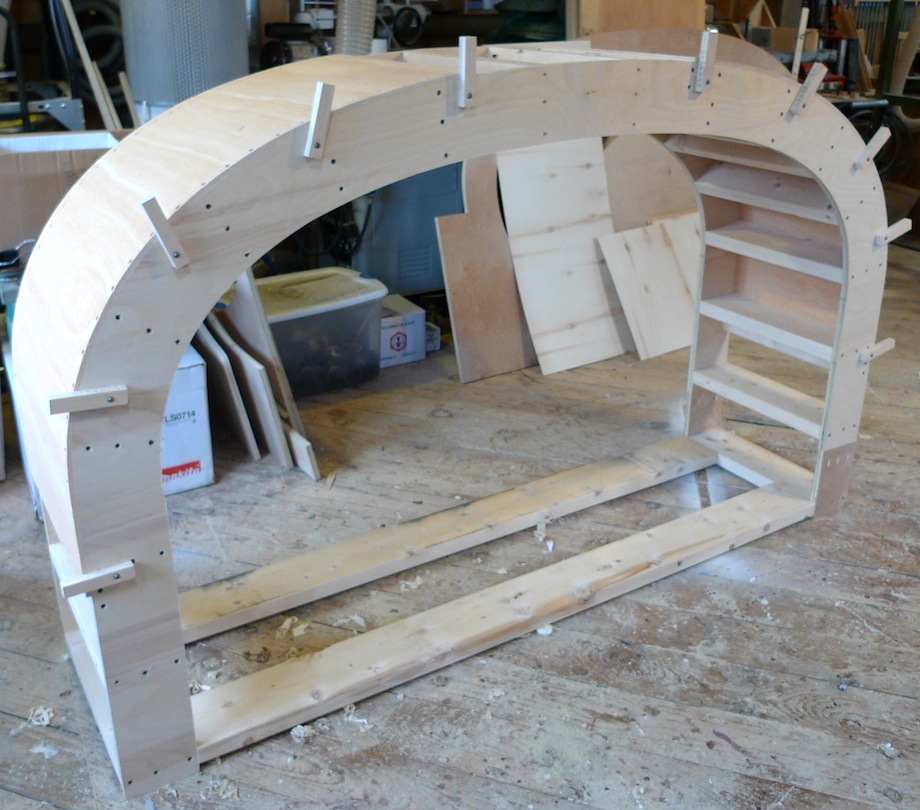

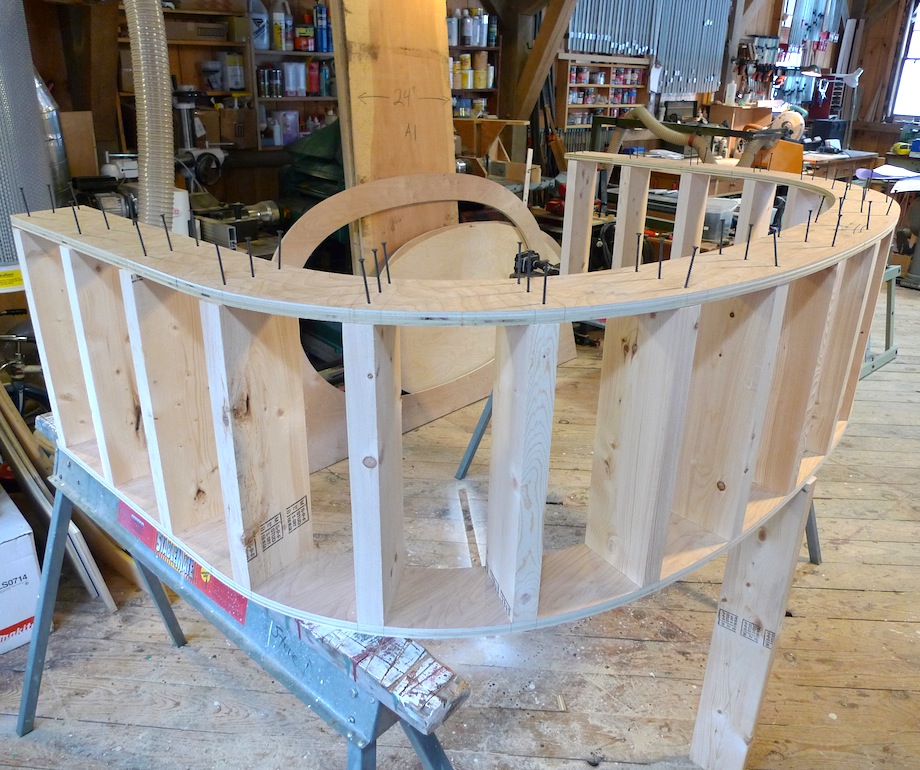

The walls were simple studs screwed to the curved plates.

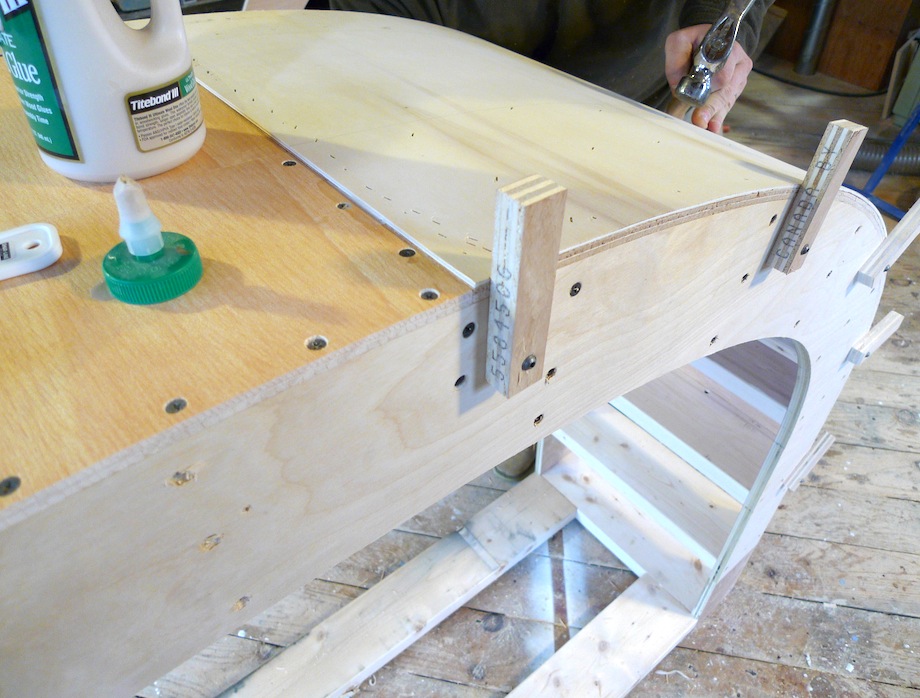

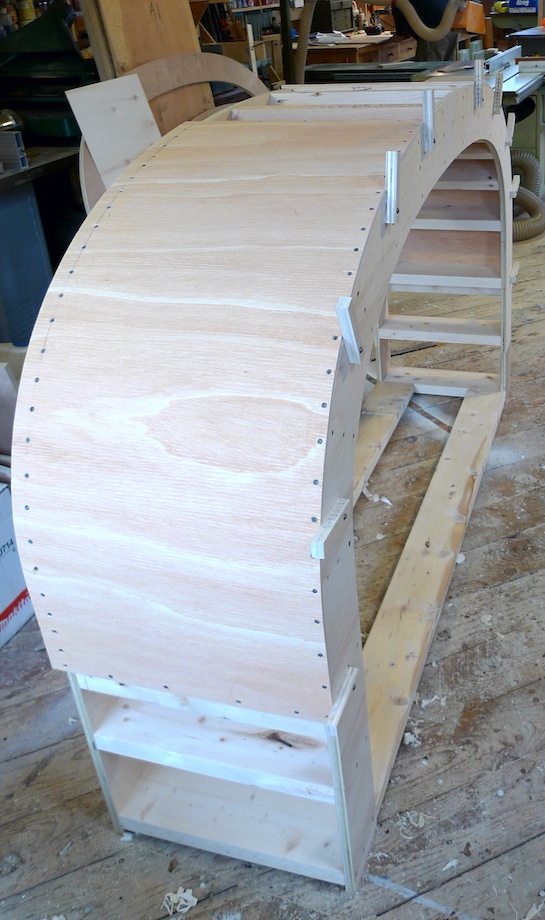

I covered the wall with a layer of 3/8-in. wacky wood (bending plywood)—glued and screwed to the framing,…
…and one layer of 1/8-in. Italian bending poplar plywood—glued and stapled outside of the panel layout to the first layer.

I had to be careful not to over-tighten the screws, because over-tightening created flat spots, as the plywood followed the 1 1/2-in. flat face of the stud (I didn’t shape the edge of the stud to the curve of the plates).

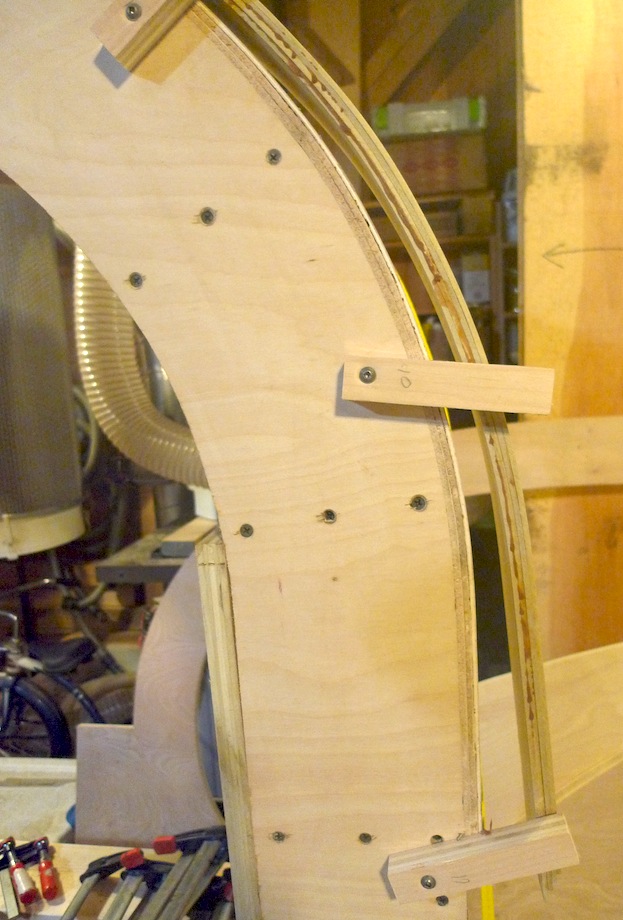

One problem with forming curves is keeping the pieces from “twisting” and walking off of the line of the curve. To help everything “stay put,” I screwed blocks along the top of the wall to make it easy to follow the curve.

The next step was to make the rails.

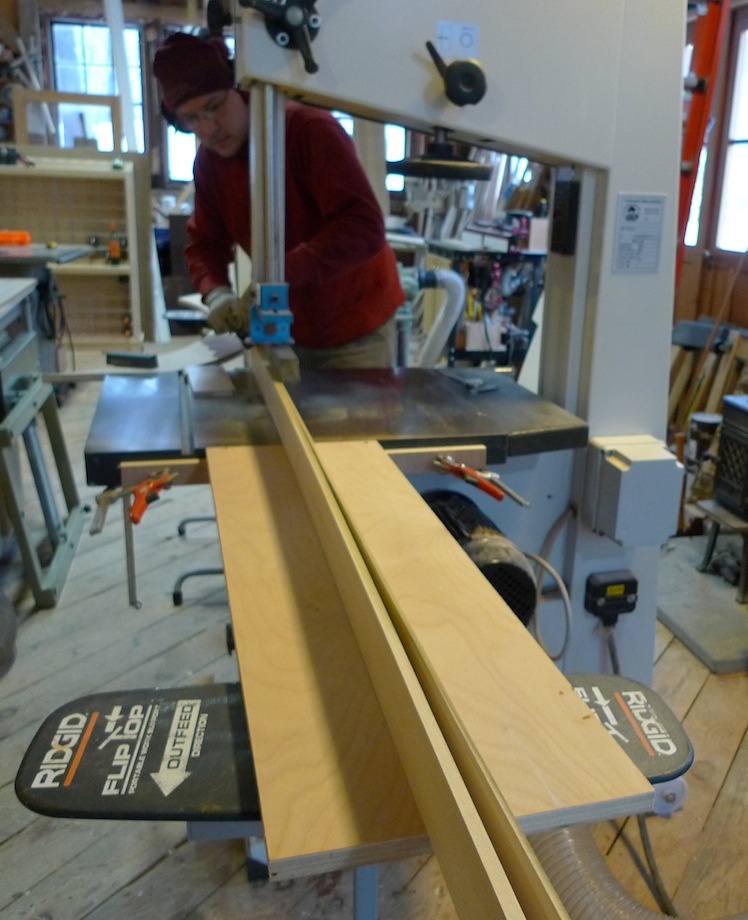

I ripped poplar into thin strips on the bandsaw…

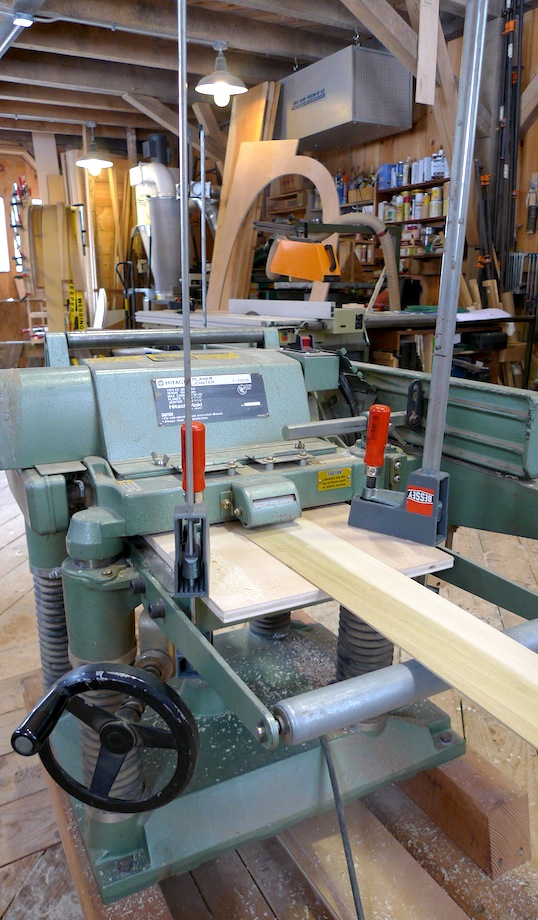

…and sent them through the planer using a piece of plywood on the bed of the planer to keep the planer from chewing up the thin pieces.

I had to do a trial run to make sure the pieces were thin enough to follow the curve without cracking or curling up on the edges. Four plies at 1/8 in. worked well. I could have gone to five plies, but I probably would have lost a few more pieces to the planer. A wide belt sander, which I didn’t own at the time, would have made that easier.

I needed two rails, but made enough pieces for four rails. I then cut up the extra rails for the cove moldings.

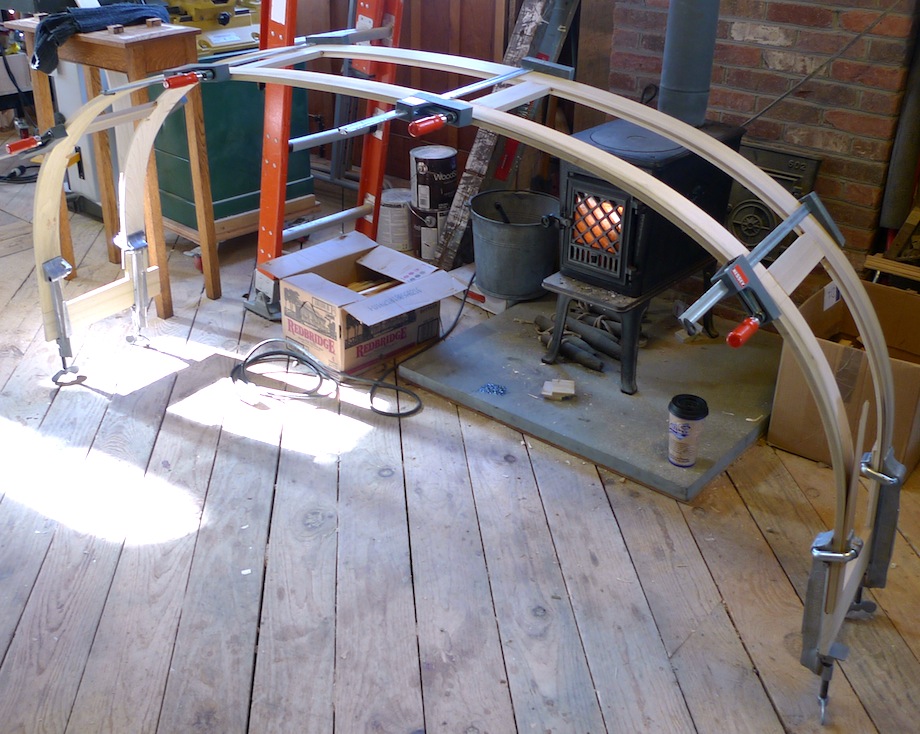

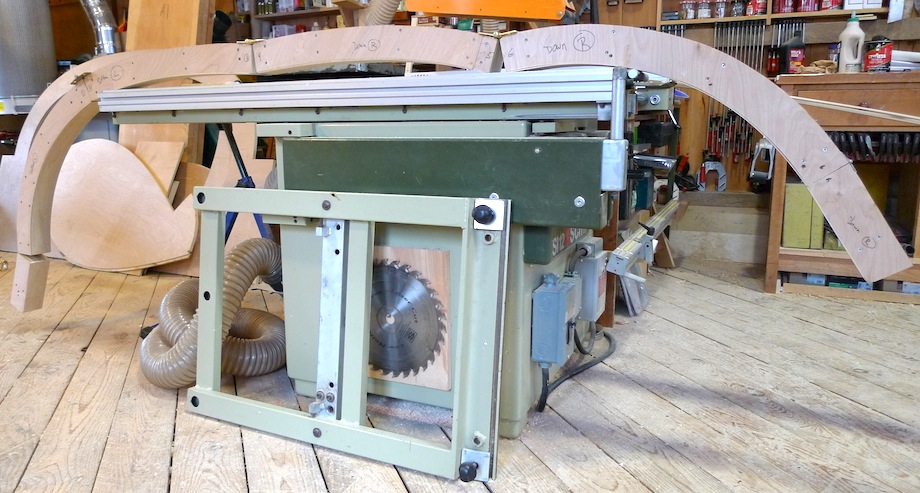

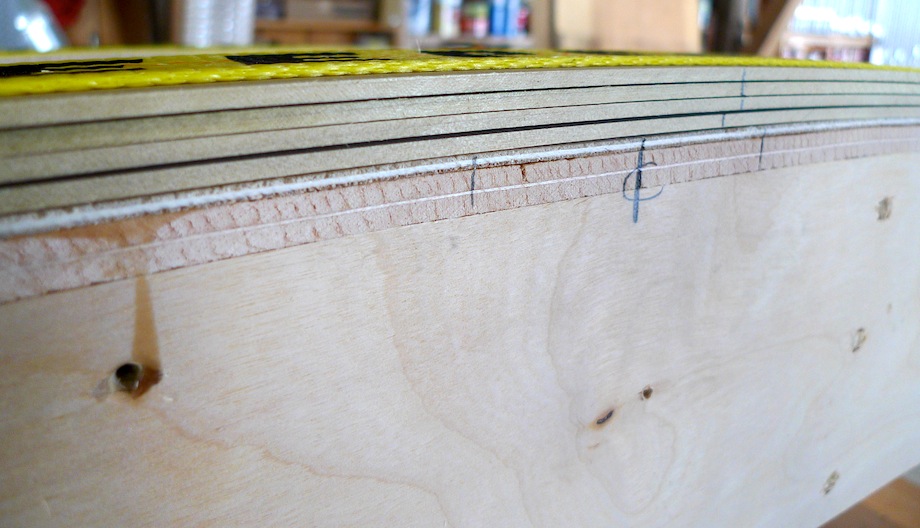

The first challenge was gluing the curved rail pieces. I thought I had an easy method using a large band clamp. This always works for gluing fully round objects. However, as you can see from the pictures, it didn’t apply even pressure—there was almost zero pressure on the top. The band itself was under tension and not even applying any clamping pressure onto the veneers. But you can see there was good pressure on the sides.

In the past, I always made a positive and negative form with smaller curved pieces. This piece was too big for that method. A friend of mine made curved rails out of oak, cutting them into pieces and then adding the hinges. I figured I’d take a cue from his experience.

It’s a slippery nightmare to work with four thin layers of poplar covered in glue.

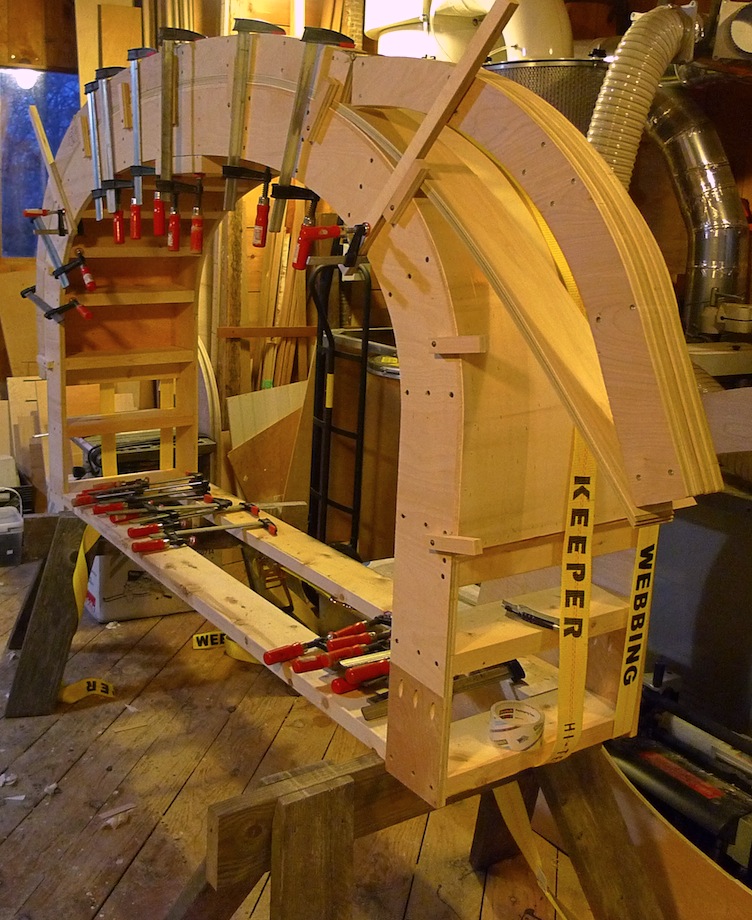

The hinged form, and an extra set of hands, gave me the time to start clamping at the middle and slowly work the form and clamps along the curve, keeping the pieces aligned at the same time. With only one form and clamping caul, this was a very slow process. It took seven days to make five rails and two pieces of baseboard (one for baseboard, the other for the top molding).

To form the baseboard in a different plane from the rails (which changes the radius), I glued it up with a piece of the rail between the base and the form.

There is always a big concern about what type of glue to use when working with curved pieces. The answer I always give is: “it depends.” Concerns often include springback, joint creep, open-time (or set time—you do need extra time when gluing curves), and weather resistance (think of a curved exterior railing). The different properties of the different glues address these issues, well, differently. That’s why it depends. Instead of getting into a discourse on the subject (which is worth another article), I’ll just say that I used good old Titebond III.

I wasn’t concerned about springback, because every part was going to be nailed or screwed to the framing, and the parts were thin enough that it wasn’t going to be a fight to get them back to following the form (see photo, left).

The clamping caul I built had to follow the tub radius at a 1/2-in. distance from the tub (the thickness of rails I was making). I made the form using a 1/2-in. pattern bit in the router. I followed the outside layer of the plywood on the tub, routing another piece of 3/4-in. plywood. The off-cut from the piece I routed became the pattern. I then used that piece as a pattern for my form. I had to make four pieces of 3/4-in. plywood for each section of the form.

When it came time to make the baseboard pieces, I took the form apart and routed another 5/8 in. off of the form because the baseboard was 5/8 in. thick. I also had to make a few more pieces for each section because the baseboard piece was wider than the rails. I used 3/4-in. plywood because it was a good use of all the scrap pieces leftover from cutting the curves out of the full sheets of plywood.

Once all the parts were glued, it was time to put them together.

The pieces were joined on one edge…

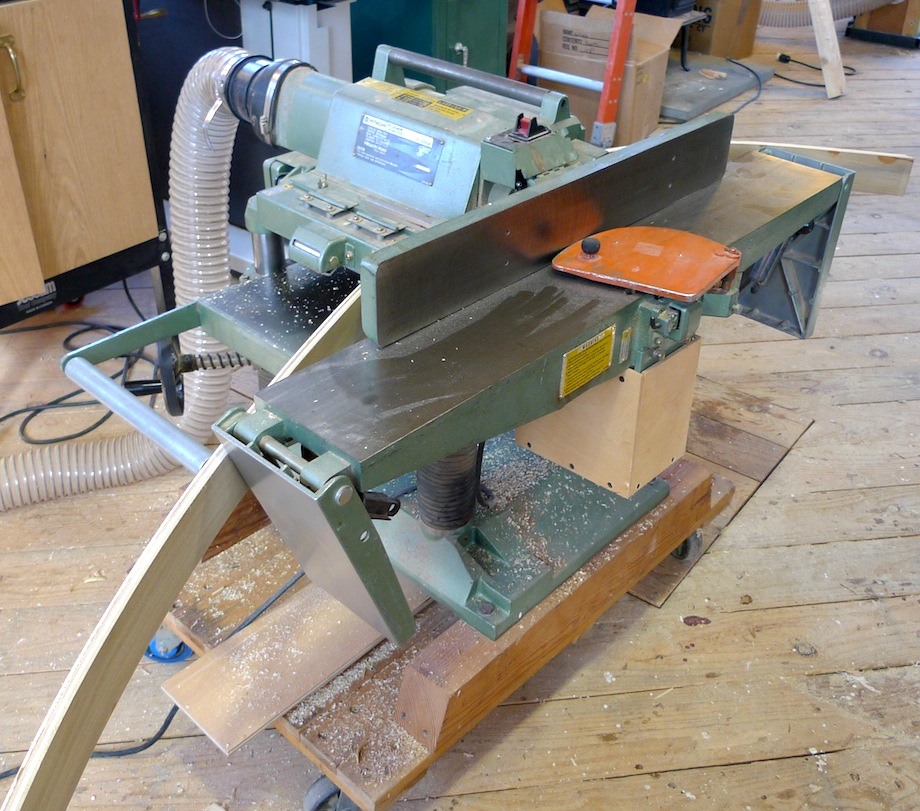

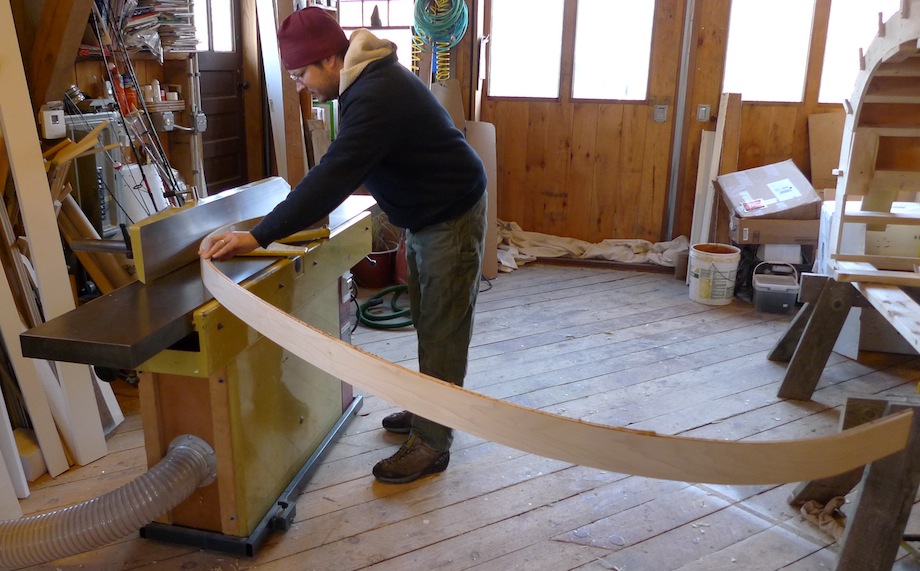

…and then run through the thickness planer to finished width.

I was able to easily layout the stiles on the tub base itself with the FastCap flexible/flat tape measure. Locating the rails on the center line (the most important layout line), I transferred the stile locations to the top and bottom rail.

The stiles were milled to thickness from solid poplar. The flat back of the solid stock rocked a bit on the curve, especially at the tightest part of the radius.

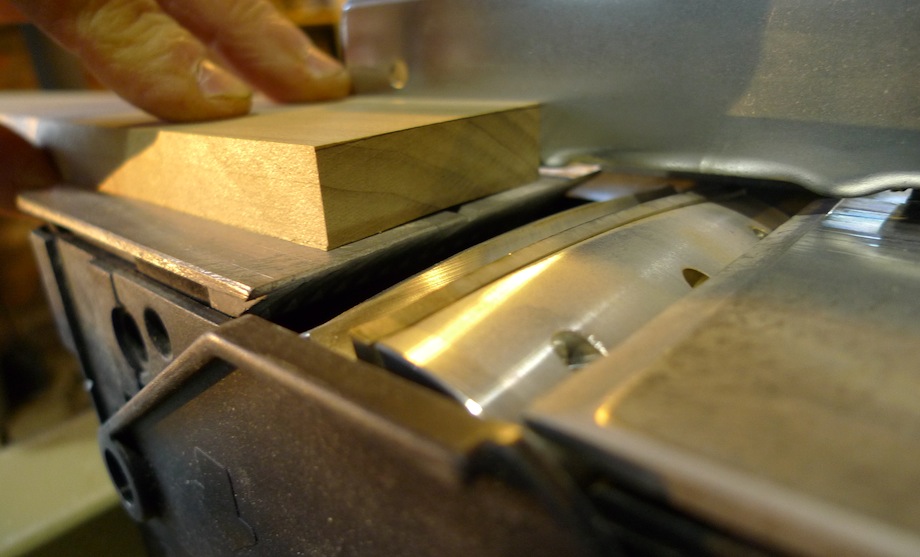

I used the curved blade in the Festool power plane to solve that problem. One pass, and the stiles sat flush on the back.

I used my trusty Lamello biscuit jointer to join the rails and stiles. I could have used the Domino, but I wanted to have a glued spline along the entire joint.

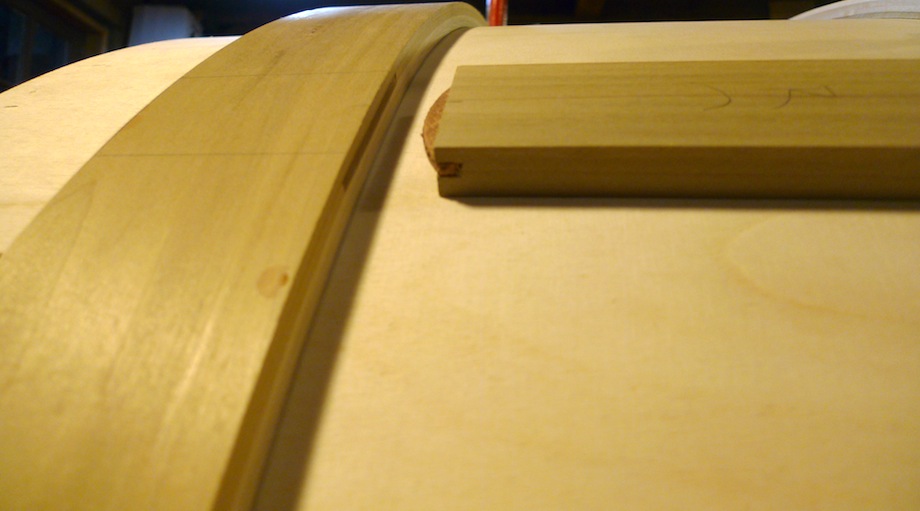

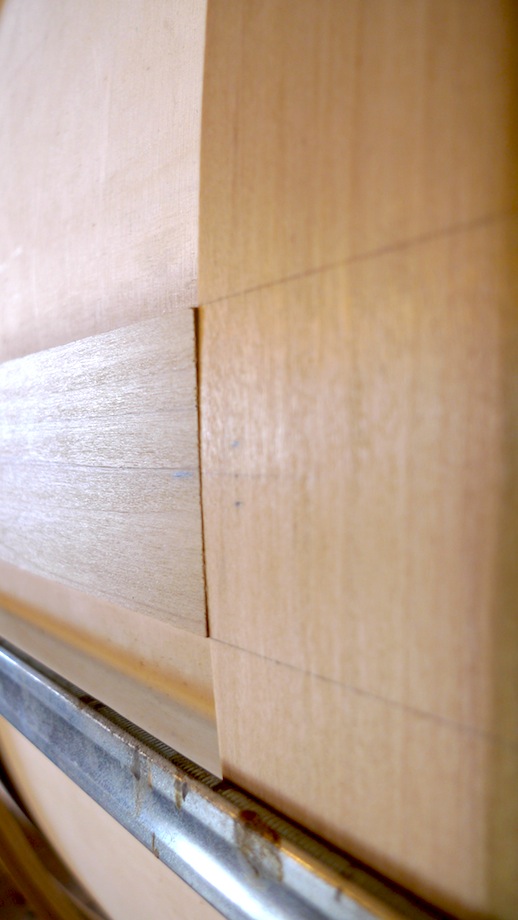

Once glued, the edges of the flat stiles stuck up slightly proud, as they didn’t follow the curve.

I used a sharp block plane and curved sanding block to quickly shape the stiles to the varying curve of the rails.

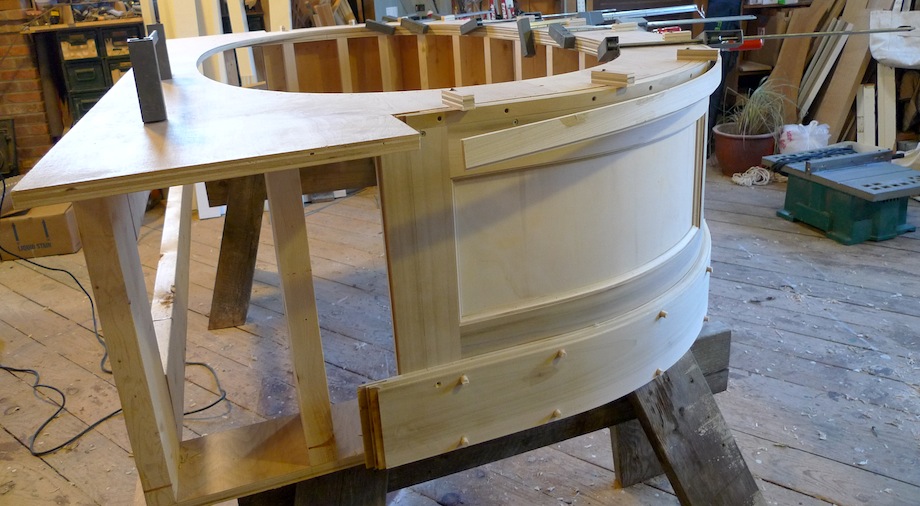

Once I glued the rails and stiles, and attached them to the tub base (see photo, below), the next step was to make the panel molding—a simple cove that would be glued and nailed into the panels.

Going into this project, I imagined this would be the hardest part. It turned out to be the simplest! Because the radius of the curve changes along the length of the ellipse, the moldings in each panel would have to follow a different curve (which is what made me think this would be such a difficult task). By making the moldings out of one of the extra pieces I glued, I was able to overcome the issue of the changing radius. I cut the extra rail into five sections, which corresponded to each of the panels. Then it was a quick three-step process to make each molding. Having two routers set up was essential.

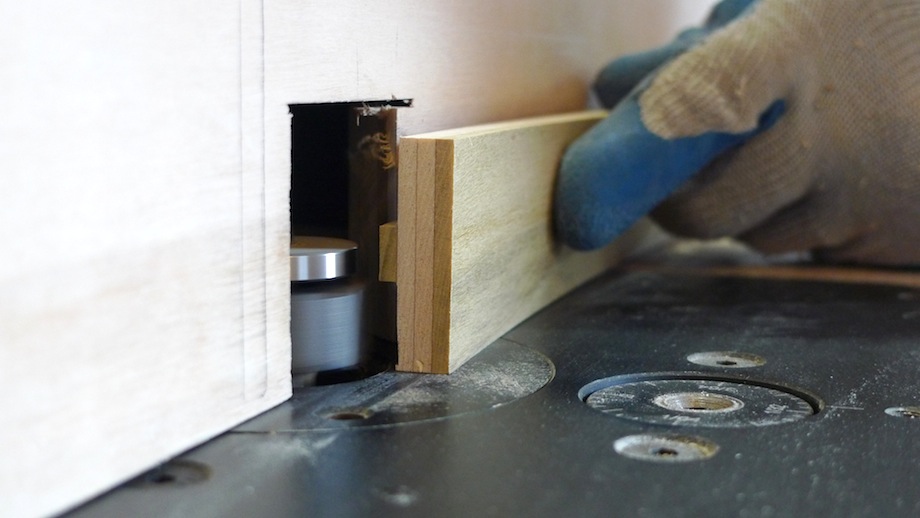

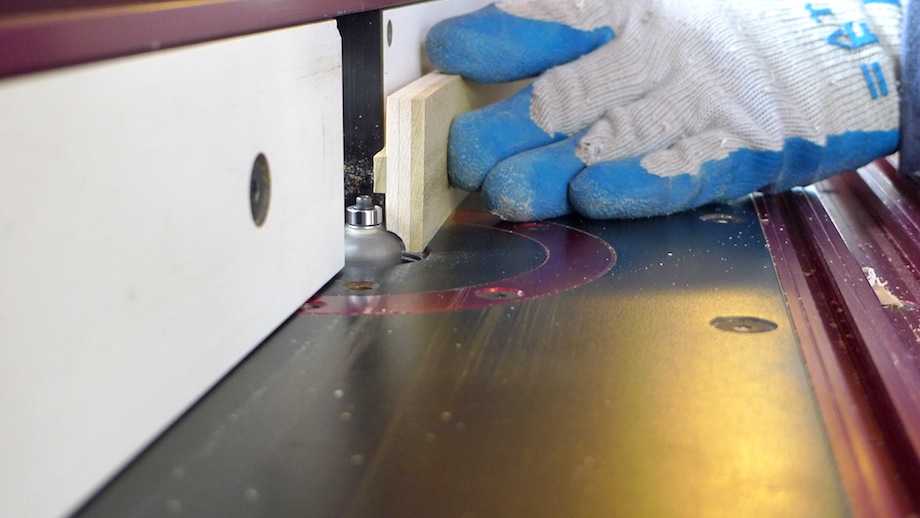

I first routed off the outermost ply of poplar with a rabbeting bit.
Next, I routed the cove.

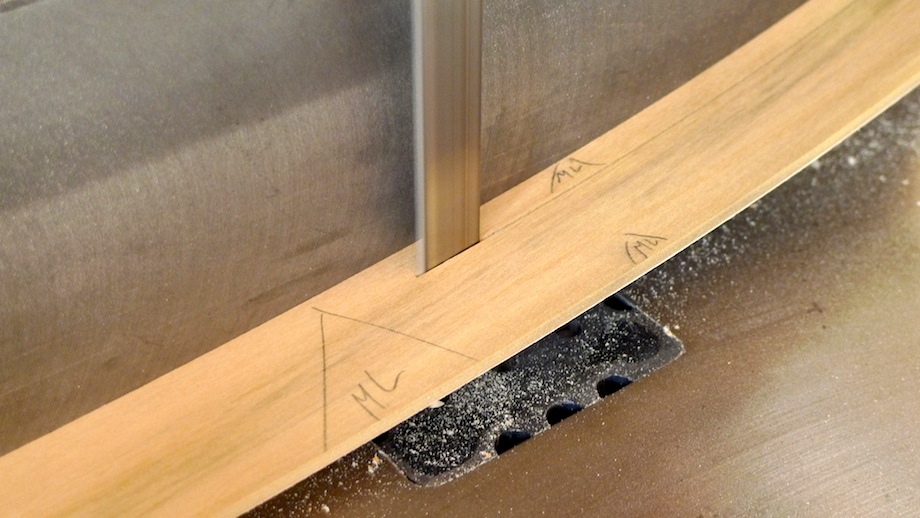

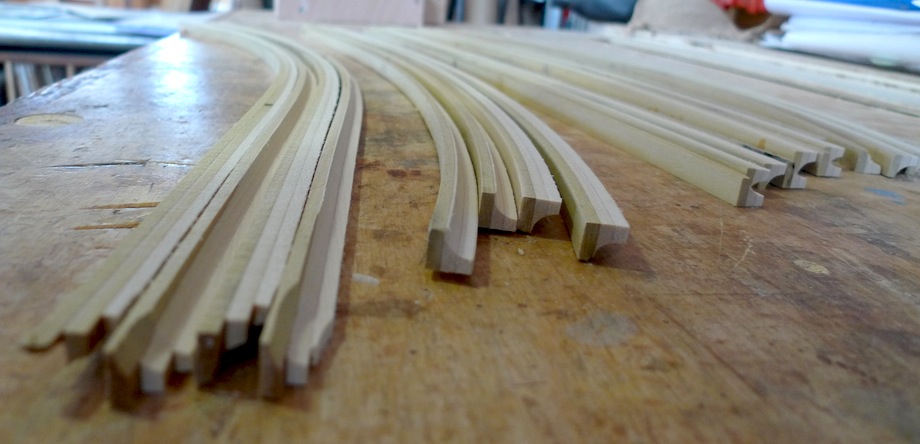

 I finished the piece by ripping the molding piece to width with the bandsaw (notice the labels on every piece).

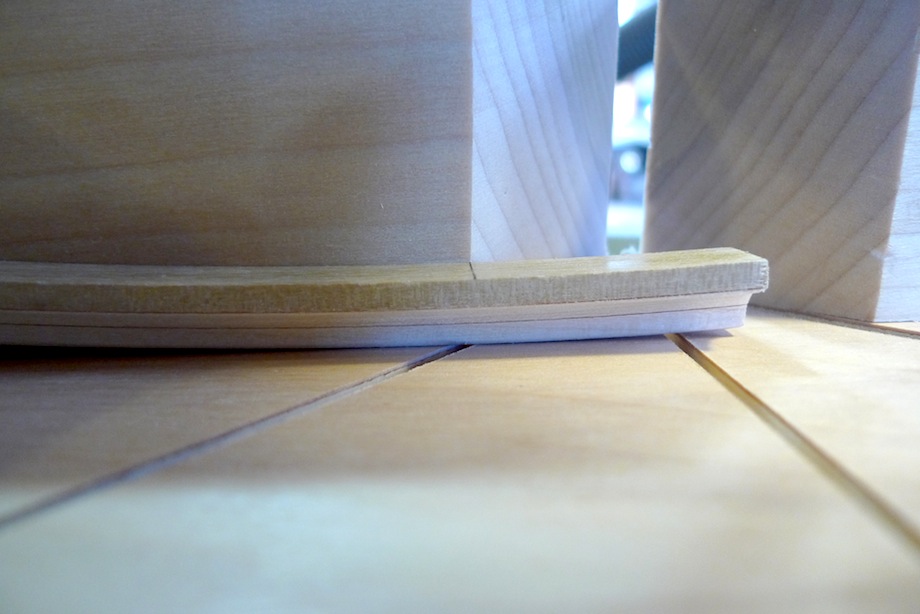

One, two, three elliptical moldings—that was easy!

Because the moldings were so small, cutting them to fit was very forgiving. I cut them with my small miter saw (Makita 7 1/2-in. slider) using a wooden subfence for support, holding the piece so the fence was tangent to the point of the cut. That was accurate enough. It took a few cuts for each piece to nibble down to a perfect fit. The extra time was cheap insurance for not having to make more moldings. The vertical pieces were straight runs of molding—I just had to hand-plane a slight bevel on the edges to keep the edges of the molding tight to the panel and rail. Once all the pieces were cut to fit, I glued and brad-nailed them into place.

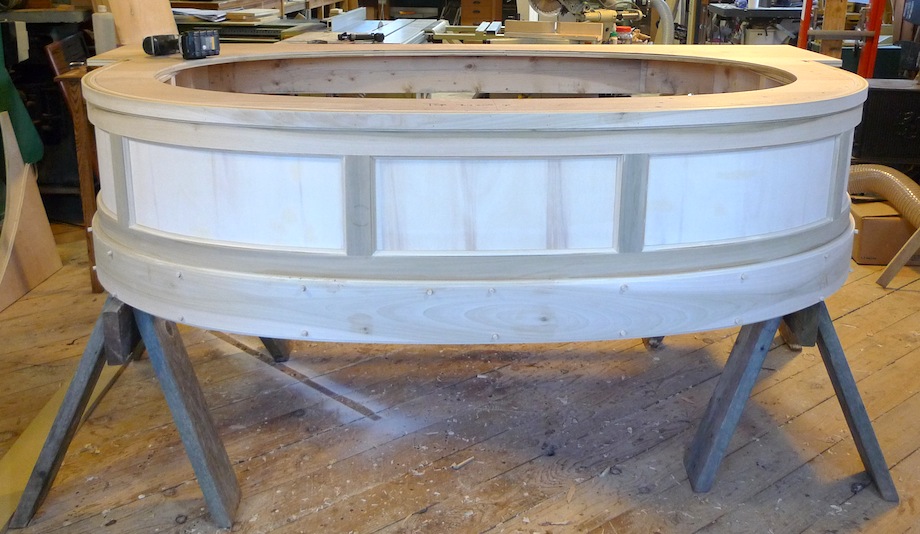

To finish off the shop work, I profiled and attached the baseboard and top trim pieces.

I then sent off the entire piece to the finisher for painting, and finally brought it to the jobsite for installation. And yes, it did fit through the door and up the stairs!

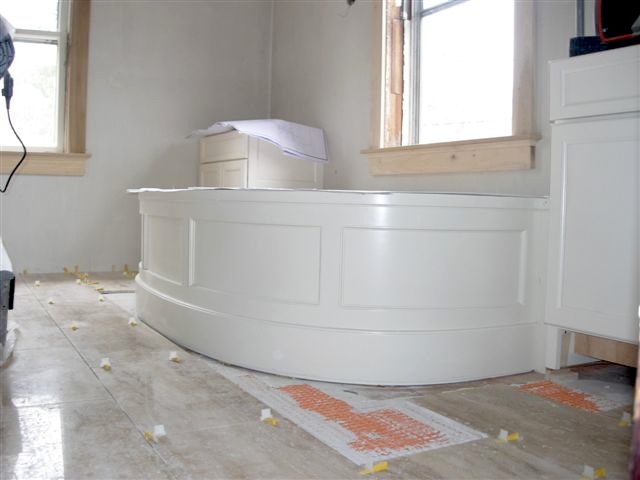

Installation was straightforward. I had checked the floor for level with a laser before I built anything, so I knew that shimming to level wouldn’t create any new problems. The floor was to be tiled; as long as the piece wasn’t shimmed more than 3/8 in., the tile would cover any space between the bottom of the panel base and the subfloor. The only detail that still bothered me was if the tub fit and the curves lined up…which they did. I never made it back to the house to see the completely finished room, but here’s a look at the tub right after installation.

• • •
