Al’s Amazing Tool Box on Wheels

Long ago I built a version of Gary Katz’s tool box, but I wasn’t too happy with the way it turned out—too heavy and the wheels were too small. After that I decided to build the one I’m using now, and to be honest, this last tool box has won more praise from my clients than my door hanging. I would say that almost every client that sees it makes a comment about it. One older women went as far as to say that by looking at the tool box she could tell that I was a craftsman. I don’t take compliments too easily, so I just tell people that my tool box is a progression of Gary’s tool box, and in fact it is. I’ve been using this tool box for about 2 to 3 years and I have been very happy with it.

Changing steps

Al's Steps

(Note: Click any image to see a larger version. Hit "back" button to return to article.)

I made the box from 5/8-in. fingerjointed pine screwed and glued together, and for appearance I sealed the wood with a clear coating after. I cut out a hand hole on the center of the top center to pull the box around, and added two holes on the sides to lift the box when going over a threshold or anything else that I feel it should not take the weight of the tool box as I pass over it.

As a door hanger I always needed a short step ladder, so I added steps when I built this new box. The Lower StepAs a step ladder, it is very steady. I stand on the lower step to check the reveal on top of the door and I step on the higher one when I need to plane the top of the door if the reveal is a little tight. I use the steps as small work tables.

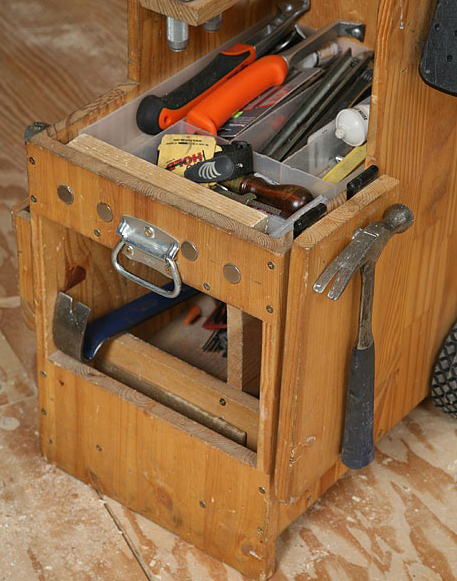

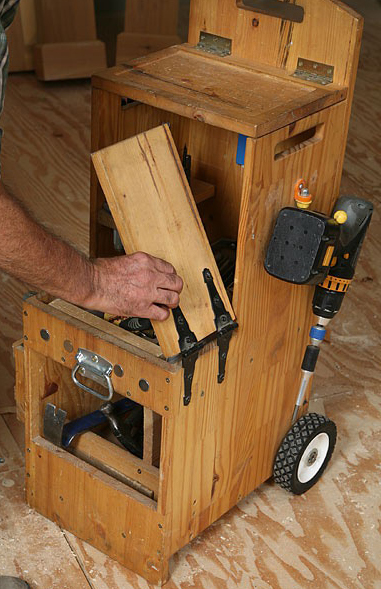

The steps fold up and out of the way. The bottom step opens to get to the tool tray. The Hammer HangerIt folds all the way over and becomes a place to hang my hammer. The top step has a small fluorescent light mounted below. The light comes in handy and the step lifts up if I need even more light, which has been of great help in a few occasions while installing locksets on interior doors late in the evening in poorly lighted homes. Let there be lightThe top surface of the top step is recessed to hold hinges and screws while I am installing hinges on the jamb or lockset hardware when installing locks.

Tools on the move

Mobility is a must for a working tool box. The old box had heavy duty castors, but on the new box, I used 6-in. diameter wheels–good enough to climb curbs, steps and every obstacle I encounter. I could have gone bigger, but it was not necessary, 6-in. is good enough. I mounted the wheels on regular 1/2-in. galvanized electrical tubing for an axle.

To move it around, I just tip the box back and wheel it like a hand truck. Even fully loaded, it is very easy to load and unload from my truck. It is a one man tool box–on the heavy side like most tool boxes–but I have lifted it and carried up and down the stairs many times without problems.Room for a giant extension cord

Built in juice

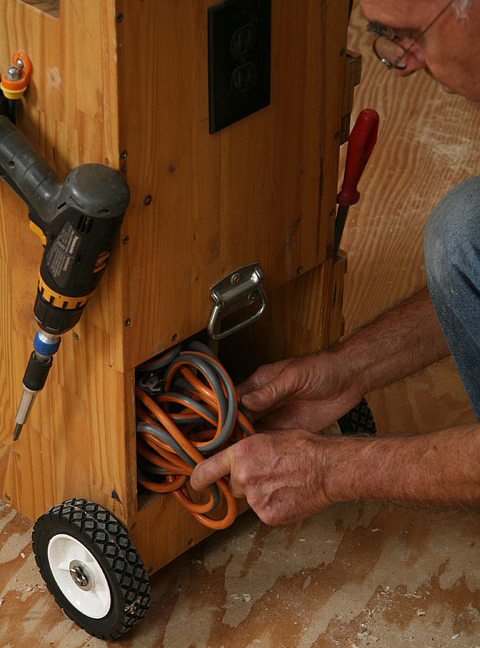

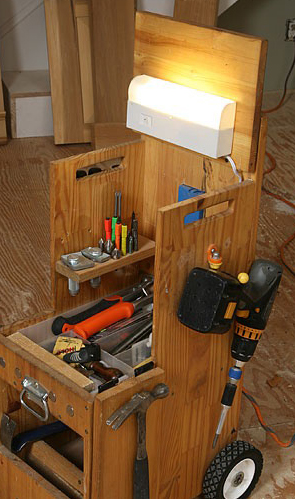

Even with all the cordless tools that I own, I still need electricity for plug in tools. So I turned my tool box into a giant extension cord. I mounted a single receptacle on the back of the box that is fed by a 16-ft. power cord. The power cord coils up and stores in a space in the back of the box.

The rest of the bottom area is for tools or objects that I don’t need quite often or that are too big to be in the upper shelf where all the other tools are. I put magnets under the middle shelf intended to hold chisels temporarily while using them. But I found that I never had any real need to use them–they were unnecessary after all. But all in all the box has turned out very useful and complete for all my needs.

Read this article in its original format (with more images) at TiC Issue 1!

Comments/Discussion

16 Responses to “Al’s Amazing Tool Box on Wheels”

  1. Henry Carmichael

    Would it be possible to get plans for this toolbox?

    Reply
  2. Al Constan

    Henry,
    Sorry, unfortunately there are no plans available for the tool box.
    It was something I had in my mind for a long time and it was very easy for me to build it without following any drawing or plan.

    Al

    Reply
  3. Al Constan

    Henry,
    In a few days G. Katz will be posting a sketchup with the dimensions and other details about this tool box. Until then you may entertain yourself by admiring the one he made. For more details and plans on how to build his tool tote
    click on this link http://www.garymkatz.com/ChartsDrawings/tool_tote.html. Anyone else willing to share with others the peculiarities of his tool box jump right in, post a picture and let us see it.

    Reply
  4. Gary Katz

    Al, Henry,
    Here’s a drawing that Todd Murdock did of the toolbox. Al’s toolbox is a great idea and Todd did a nice job on the drawing! He left the details, like chisel racks and hammer holder, etc., to your imagination. If you don’t have Sketchup, and can’t open this file, you can download it free from here: http://sketchup.google.com/download/gsu.html

    Gary
    [file]http://www.thisiscarpentry.com/wp-content/uploads/2010/03/Als Toolbox[WTM].skp[/file]

    Reply
  5. Mark

    I’m not happy with the rolling tool boxes I bought and the ones I see in the stores.

    Your EXCELLENT tool box has my mental gears spinning ever since I saw this earlier page this week.
    I’m fantasizing a lot about how I’ll make mine.

    I can’t believe the fluorescent light! Wow!
    And I like the idea of screwdrivers etc being vertical for fast access.

    How are the wheels attached?
    Is there an axle going though a horizontal pipe?
    Is each wheel bolted on seperately into the wood?

    And how does the hammer stay in place when you close it’s lid?

    Reply
  6. Carl Johnson

    This is a great tool box. I just started building one for myself. I have been using the carry totes from Home Depot. Very hard to organize tools in them and you never know if you are leaving with all your tools at the end of a job. This box is the right size and the steps on it will be very handy on the job site.

    I used plywood for the sides and this makes it a quick build.

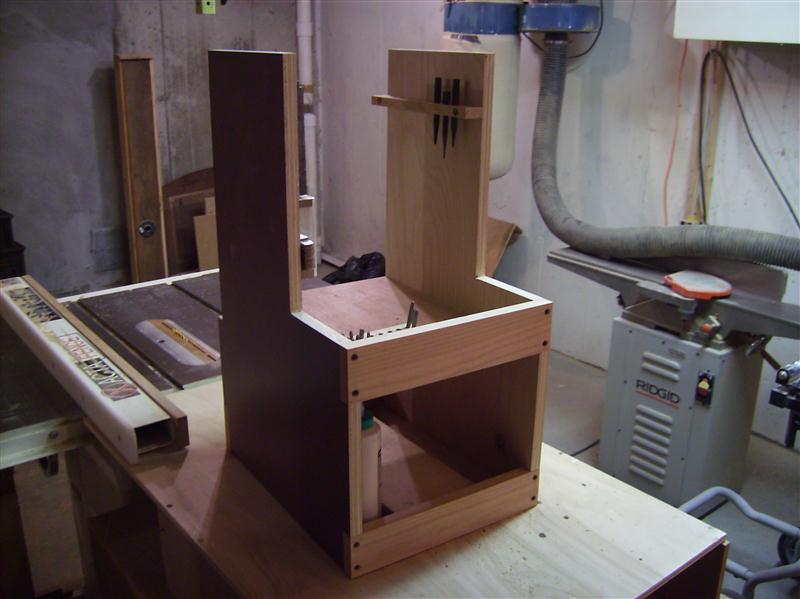

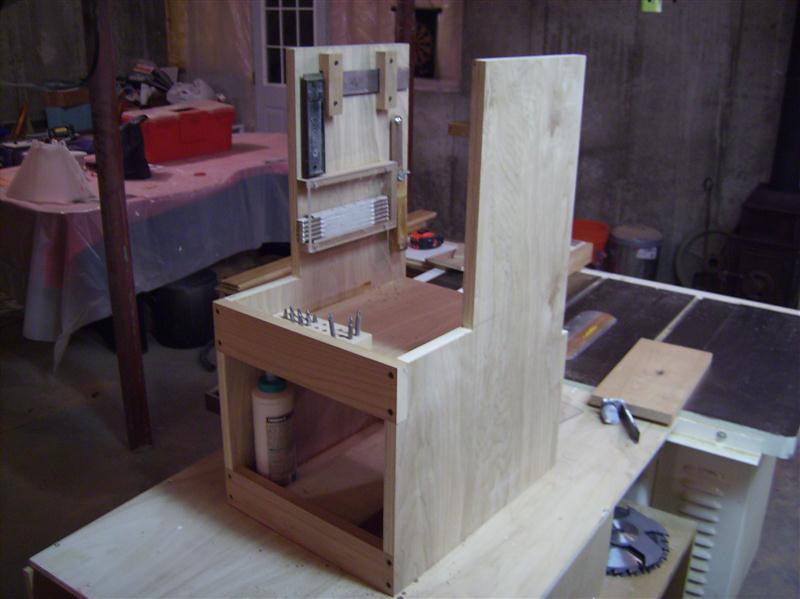

    I am including a photo or two of the start of the box.

    Reply
  7. Al

    Carl,
    You are doing a great job.
    I will post a picture to show how the wheels are attached.
    Don’t hesitate to ask any questions if you need to.
    Let us see it when is finished.
    Al

    Reply
  8. Carl Johnson

    Thanks Al.

    Your box really was inspirational. I had been thinking about a new box for some time. I have looked at many ideas and even built one last year that turned out to be too big.

    I found that if the box is too big it does not make it into the job site. So one needs to think about the core set of tools that are commonly needed. It turns out that your box has plenty of room in it.

    I am adding a small drawer under the first step for drill bits, pencils and other small things. I made it only about 2/3 as deep as the box so that it can be pushed back to give easy access to the lower portion of the box.

    I will post some pictures later as it may give other ideas on how to configure their version of your box.

    Thanks again Al.

    Carl

    Reply
  9. Carl Johnson

    I am posting some additional pictures of my version of Al’s tool box. I made a few changes that others may find helpful.

    I like Al’s tool box because of its size. I have been thinking of a new tool box for some time. About a year ago I built one that was too big. I tried to make it fit too many things and therefore it did not get onto the job site very often. This box is well sized and has plenty of room for the essential and often used tools.

    The other nice thing about the size of Al’s box is that it uses up many of the small scraps of wood I had lying about. So this box is a combination of plywood, Alder, Chery and Maple

    I kept the size the same as given in the Sketchup drawing.

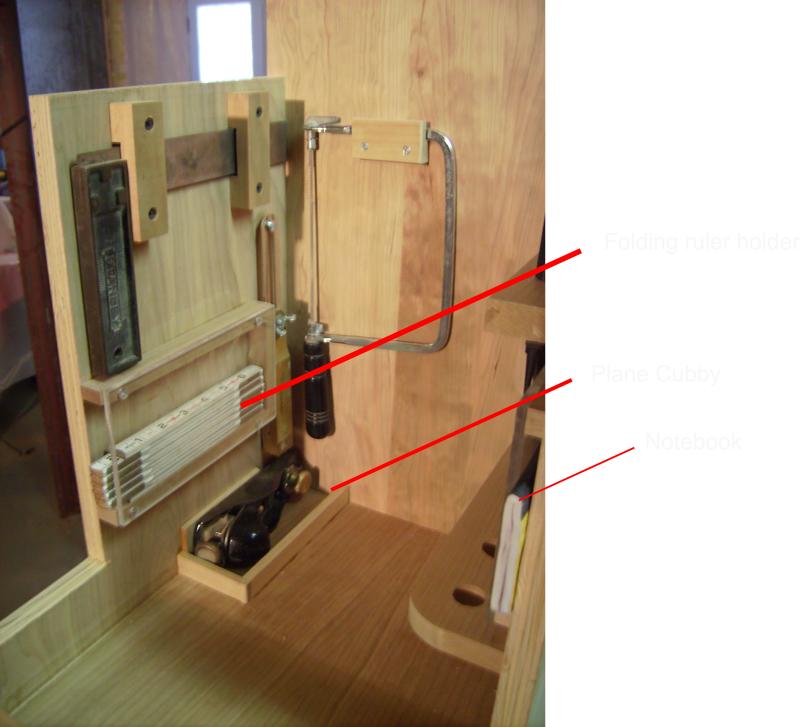

    I added some hangers in the upper compartment to hold tools that I do not like having banging about. These include my small square, bevel gauge, folding ruler, coping saw and nail sets. This also allows me to see if a tool is missing. I also made a cubby space for my plane.

    You will also see that I have a small slot for a small notebook. I like to carry a pocket size notebook with me for measurements and shopping lists etc. The problem is that I often leave the notebook in my pockets and so I forget it the next day. I hope the clear notebook slot will remind me to leave it behind.

    I also added a holder for my large framing square on the side of the box. I do not use this tool often, but mounting it on the box is fairly unobtrusive and it is there if I do need it.

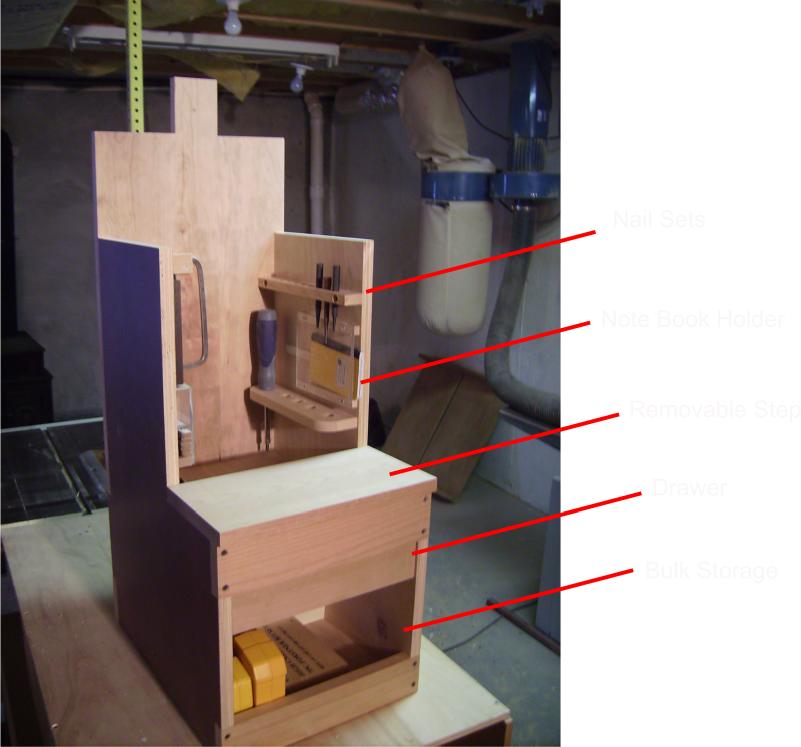

    I added a drawer under the floor of the upper compartment for drill bits, driver bits and pencils, I am forever looking for these things and wanted to make them easily accessible. Since this drawer makes the opening to the lower compartment smaller, and thus, harder to access I made the depth of the drawer narrower than the box. This allows the drawer to be pushed back into the tool box and give better access to the lower compartment.
