Drawing an Elliptical Arch

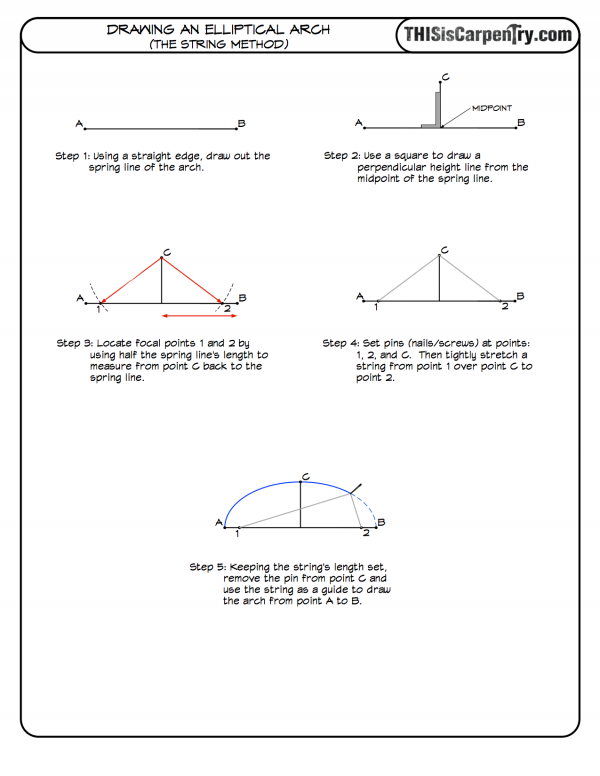

Step-by-step instructions for drawing an elliptical arch with the string method—a complimentary Quick Reference Guide to Mike Sloggatt’s full-length article, The Elegant Ellipse.
