Making your own tool storage solutions
A carpenter acquires many tools over time. Some of these tools come with decent storage containers, some don’t, and some come with nothing at all.
In this article, I’ll take you through my process of designing and building a box for a tool that has many accessory pieces and no box to keep it all together.
Years ago, good tools came with quality steel boxes that housed all of the components, but, for the most part, this is a thing of the past.
Many of today’s tools come with a plastic case or a carrying bag. Unfortunately, the hinges and snap connectors on plastic cases don’t last very long, as they get banged around in the back of a truck or van. And nylon bags, while nice, don’t really protect the tools at all, making this kind of bag useless as a permanent storage solution. Don’t get me wrong, nylon bags have their uses. As a matter of fact, I use a big red Milwaukee tool bag at the end of the day to gather up all of the little things that make their way from the van into the project site: extension cords, drop cloths, leftover hardware…you get the picture.
Some tools come with good cases but end up casualties of their own success: Tools by DeWalt, Milwaukee, Bosche, Festool, and all the other top brands, practically scream “Steal me!” depending where you are on a given day. For this reason I’ve gotten to the point of making my own storage boxes for new tools as soon as I get the chance, even when they come with adequate boxes. These homemade boxes are generally made entirely of scrap material, so they are very cost-effective, as well as utilitarian.

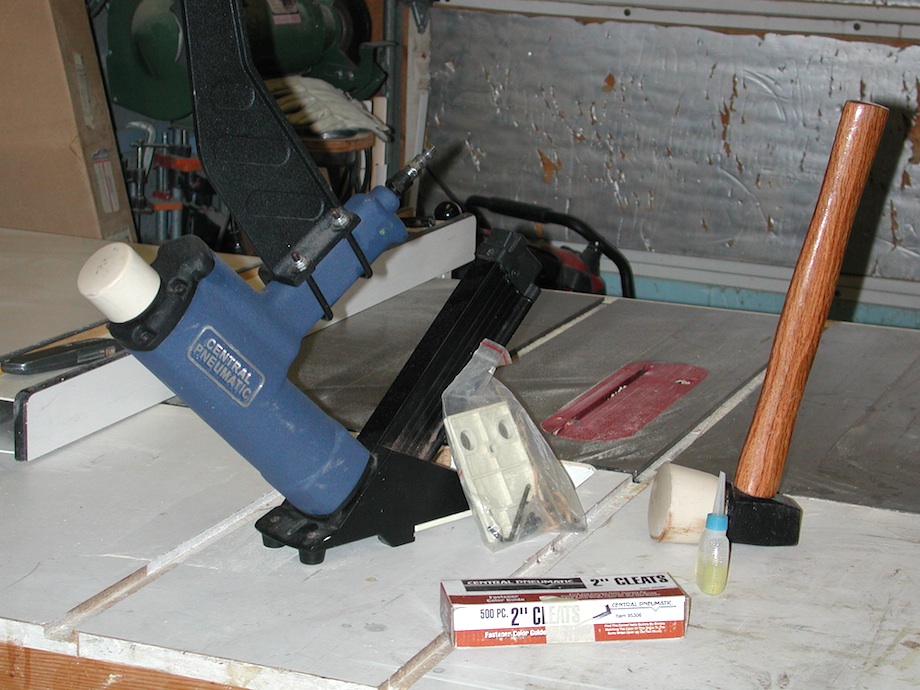

For the purpose of this article I’ve chosen to make a custom container for my Central Pneumatic flooring nailer/stapler. Not exactly a high-end target for thieves, but it does meet the other criteria: a tool with a lot of ancillary parts, which, if left to their own devices, would probably be lost in a year’s time.

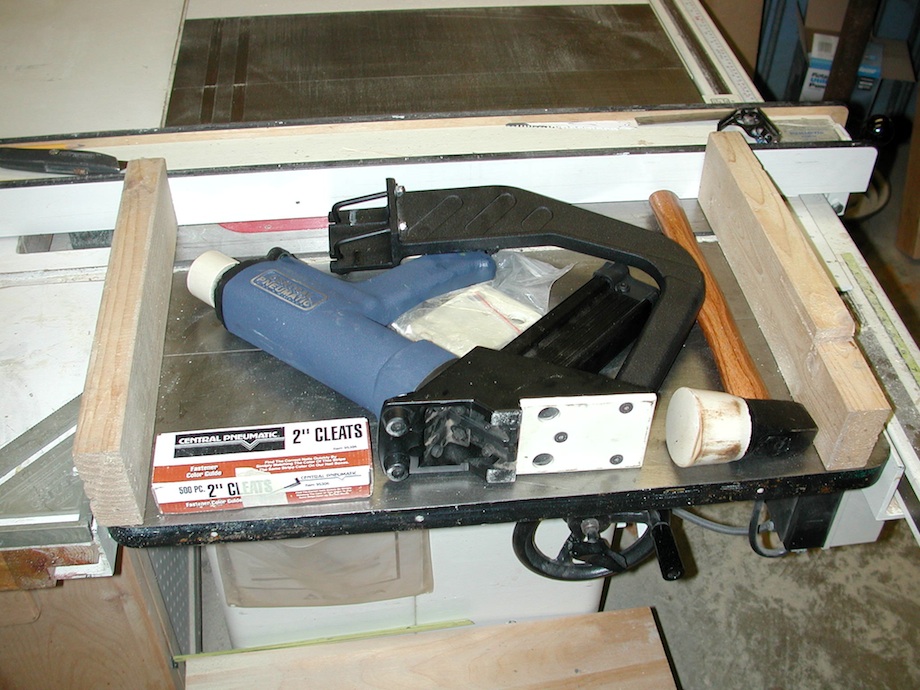

I start by gathering up all of the things that I plan to store together, and lay out the individual components as I would like to have them in the box. Now I can get my measurements for height, length, and depth.
|(Note: Click on any image to enlarge. Hit “back” button to return to article.)|

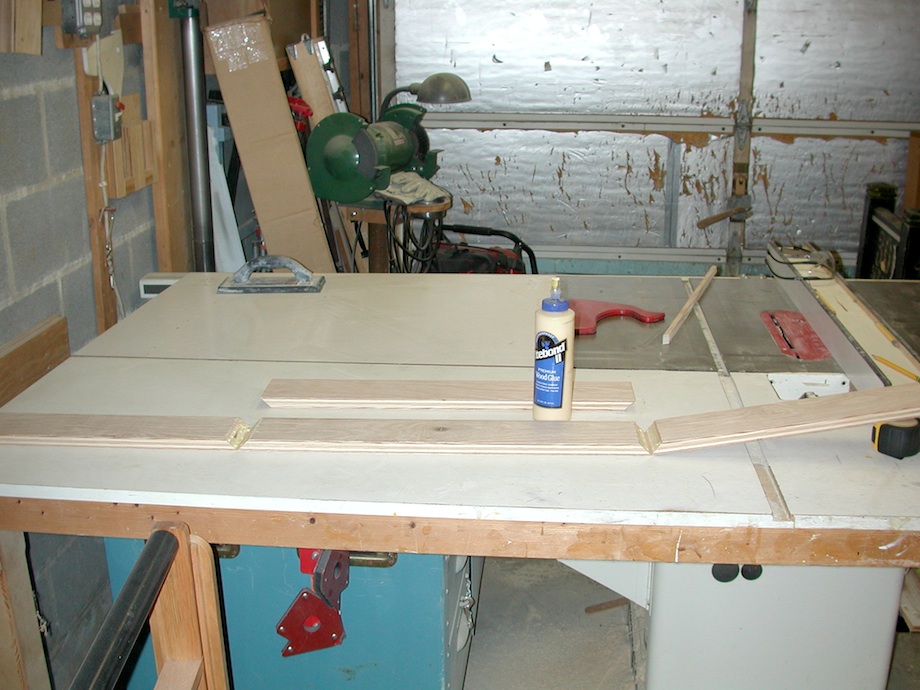

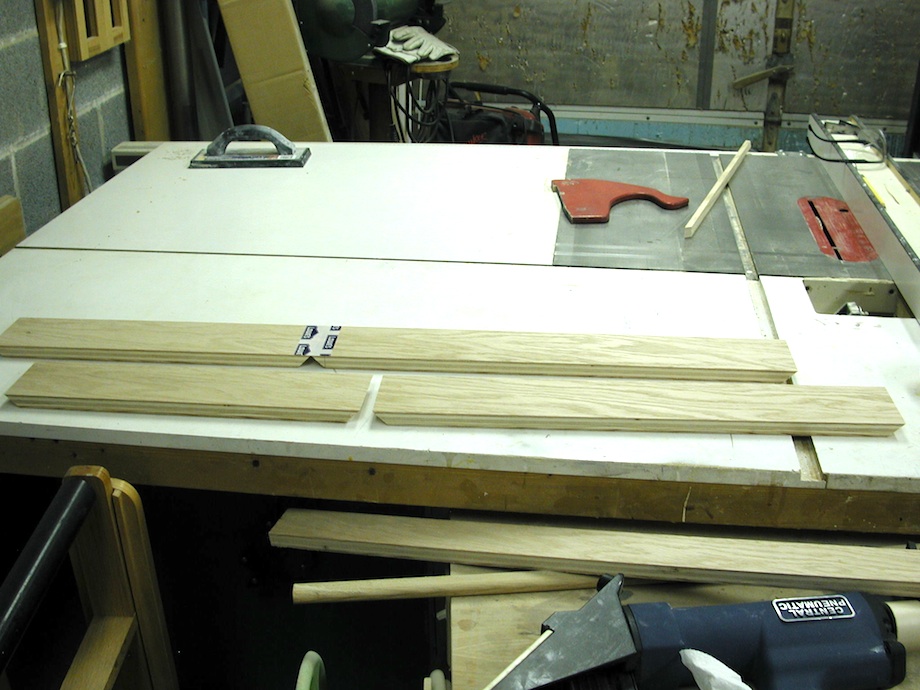

First, cut out both sides according to length and depth, and tape them together end-to-end. Be sure to make your measurements from short point to short point or it may be too narrow.
|After all the pieces are taped end-to-end, flip the whole assembly over, spread glue into all of the corners,|

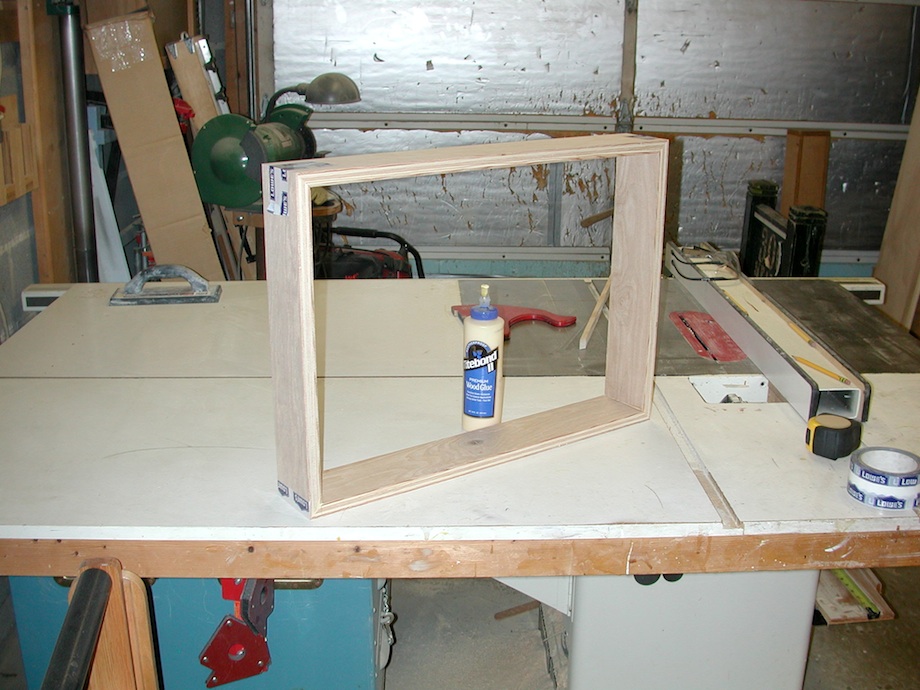

|and fold the assembly together into a box.|

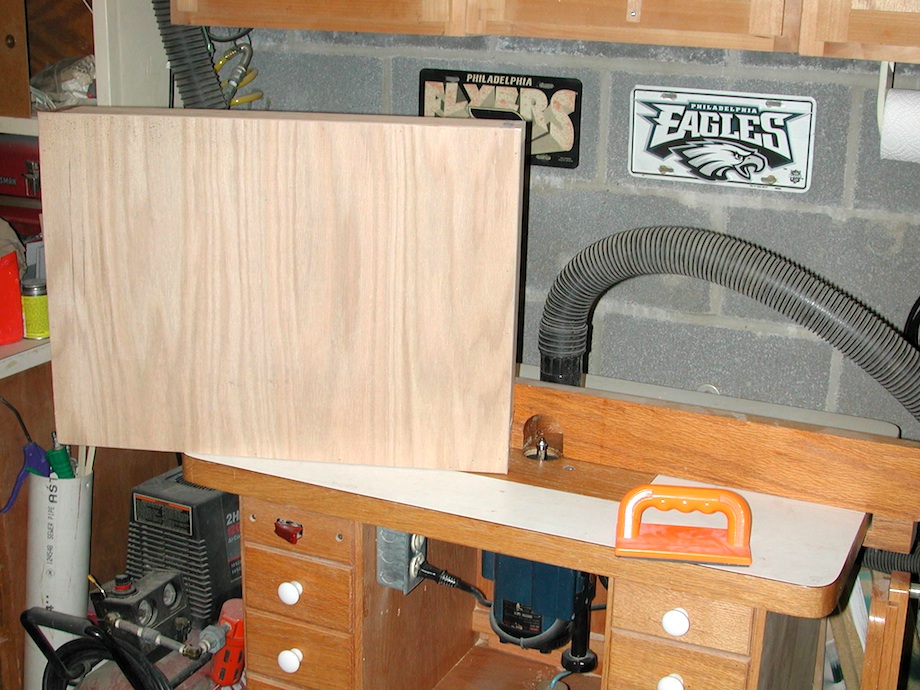

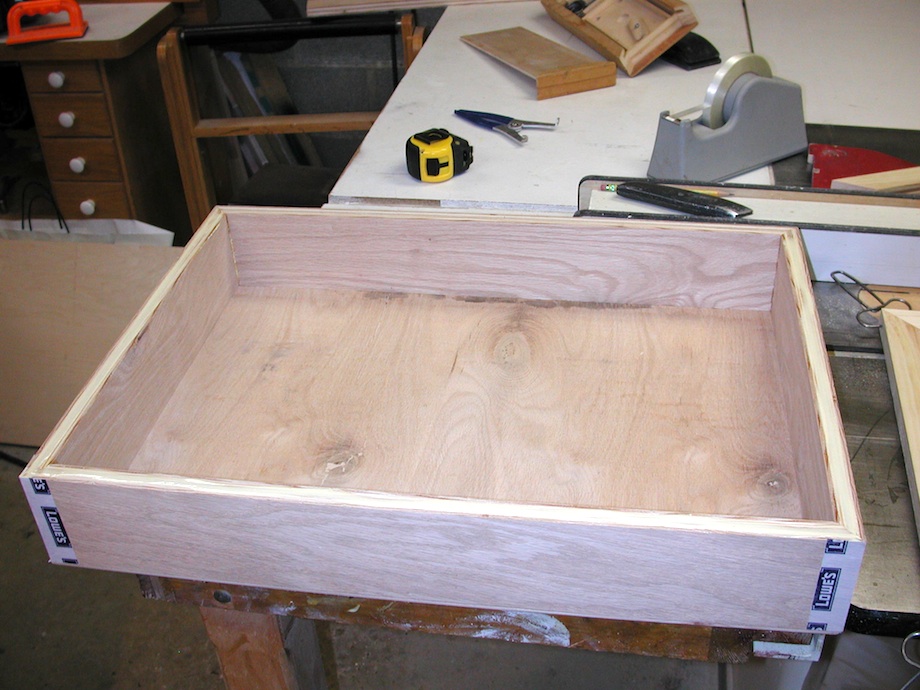

Before the glue sets, cut the back piece from 1/4″ plywood. Glue and nail the back in place, squaring up the box. I cut the back piece a little proud on length and width, then trim it off on the router table with a flush cutting bit. This not only looks neater but keeps things from getting caught on the edges.
I cut the face frame out of solid stock. In this case, 1×2 pine. Mill a 3/8” groove in the end of your stock so the 1/4″ plywood—which you will be using for your front cover—will be able to slide freely.
Note: I usually keep the piece that will be the top (or handle) separate from the rest. Since you’ll be fitting and gluing the front cover into this piece, you want the groove to be a bit tighter in this one.

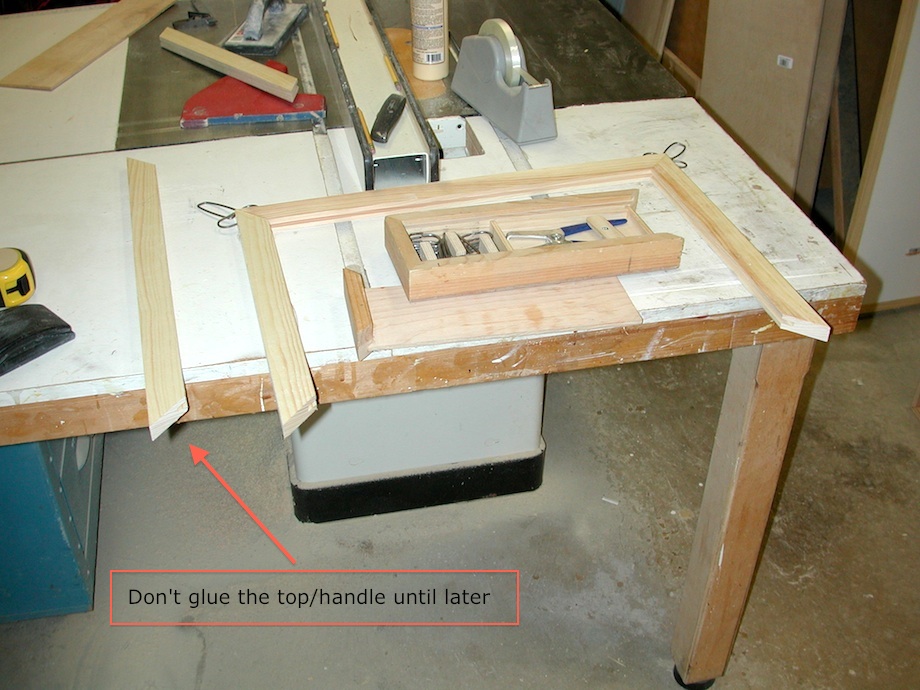

For the face frame, cut all four sides equal to the sides of your box (measuring from long point to long point). Tape and glue these pieces together like you did with the sides, only do not glue the piece that will be the top/handle of the box (see photo, right). For now, just tape this piece together with the rest to form a rectangle, square it up, and set it aside to dry.

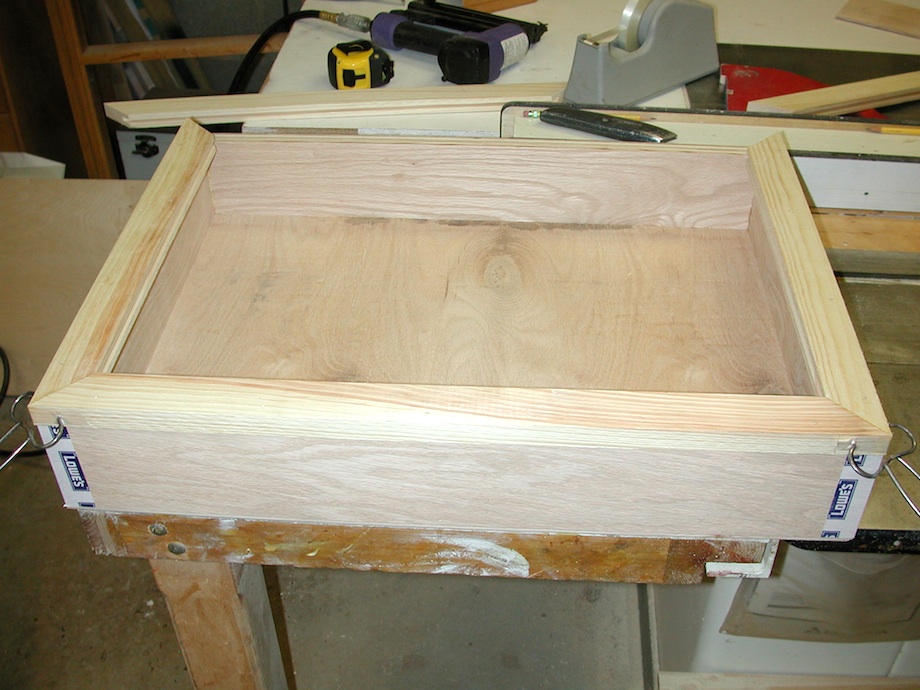

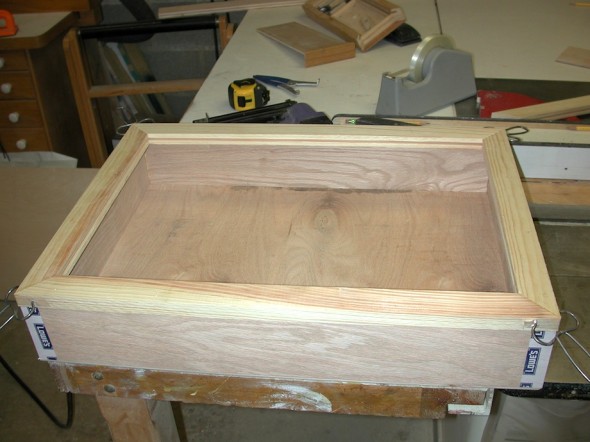

Next, orient the face frame properly on the box, with the sides and bottom set precisely in position (but no glue on the top/handle piece!), then nail the three sides of the face frame in place.

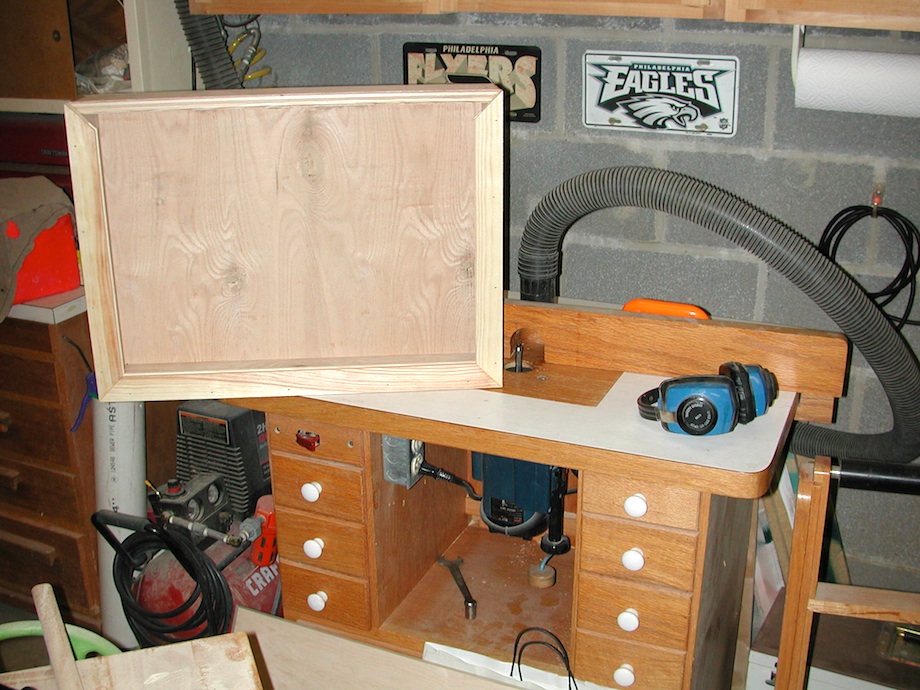

At this point you can remove the top/handle piece and trim off any excess at the router table.

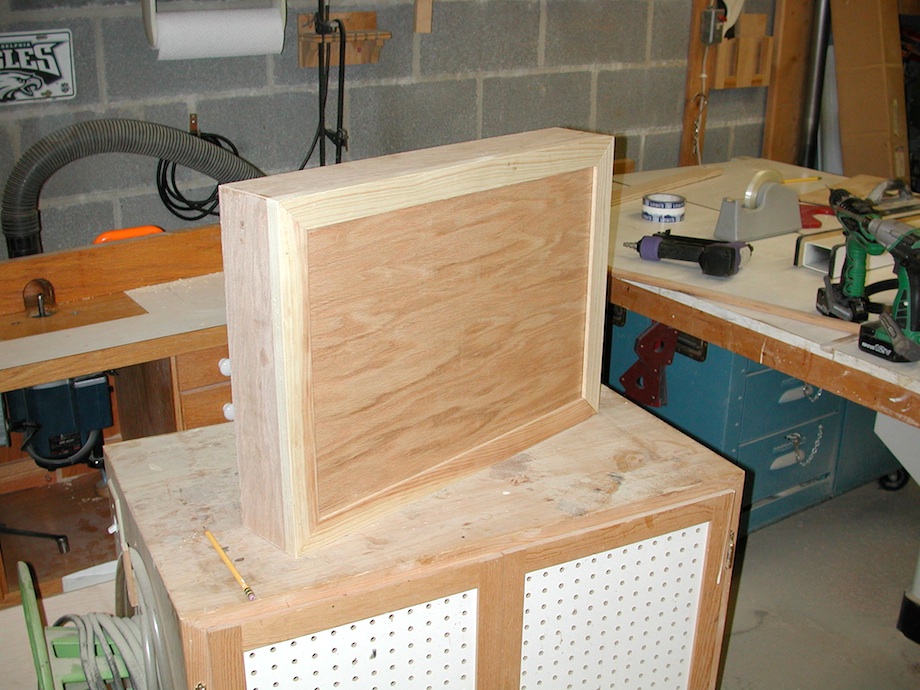

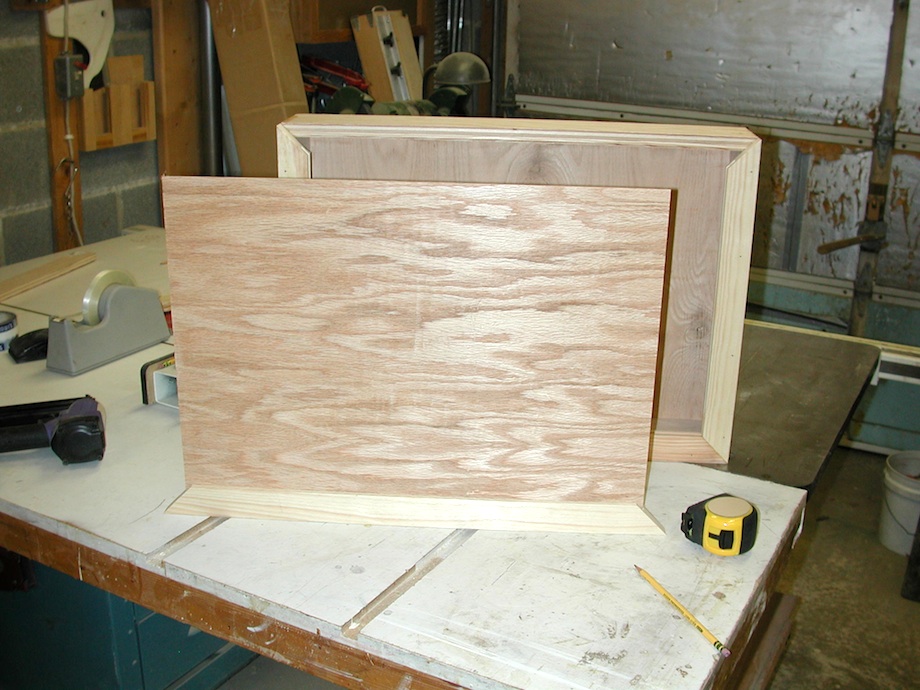

To complete the project, all you need to do is cut a piece of 1/4″ ply for the front and glue it into the groove of the top/handle piece.

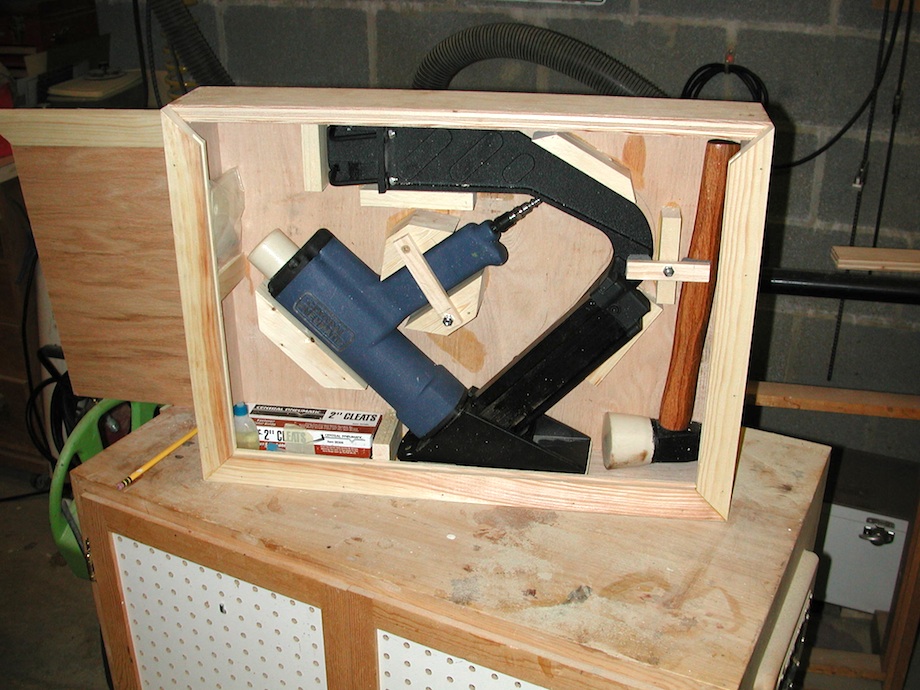

Now you can set the tools into the box and glue up whatever cribbing or stops you need to keep everything in place.

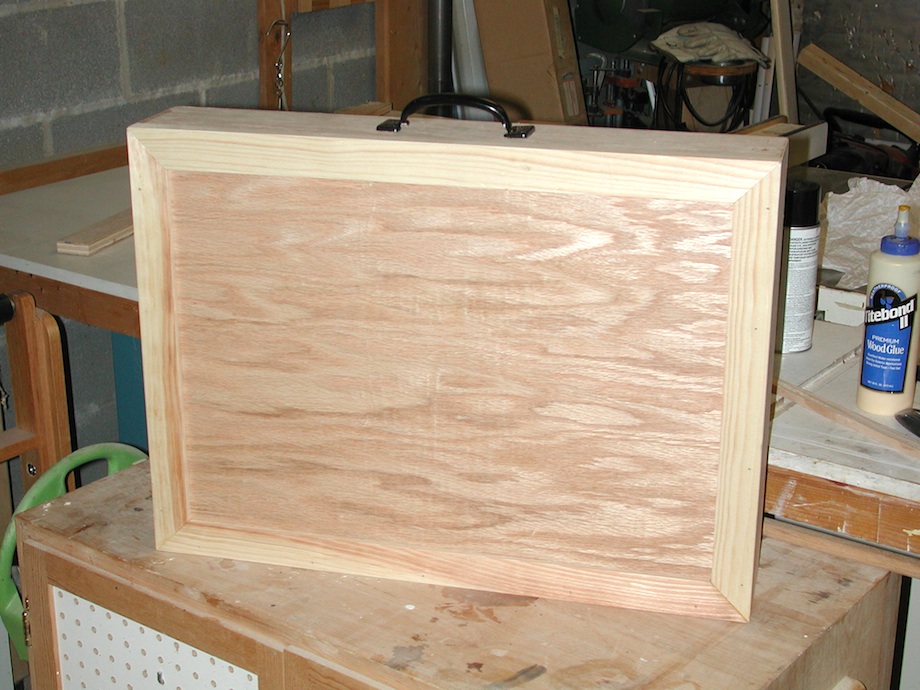

Add a carrying handle, and there you have it—a finished box with a slide-out front cover!
