When the GC got to the jobsite on Monday morning, I could tell from the look on his face that something was wrong. After a quick glance at the materials in the back of his truck — two special order interior doors and some small moldings, I knew exactly what it was. The special order doors, like a lot of other special order items that are delivered near the end of the job, were the wrong ones.

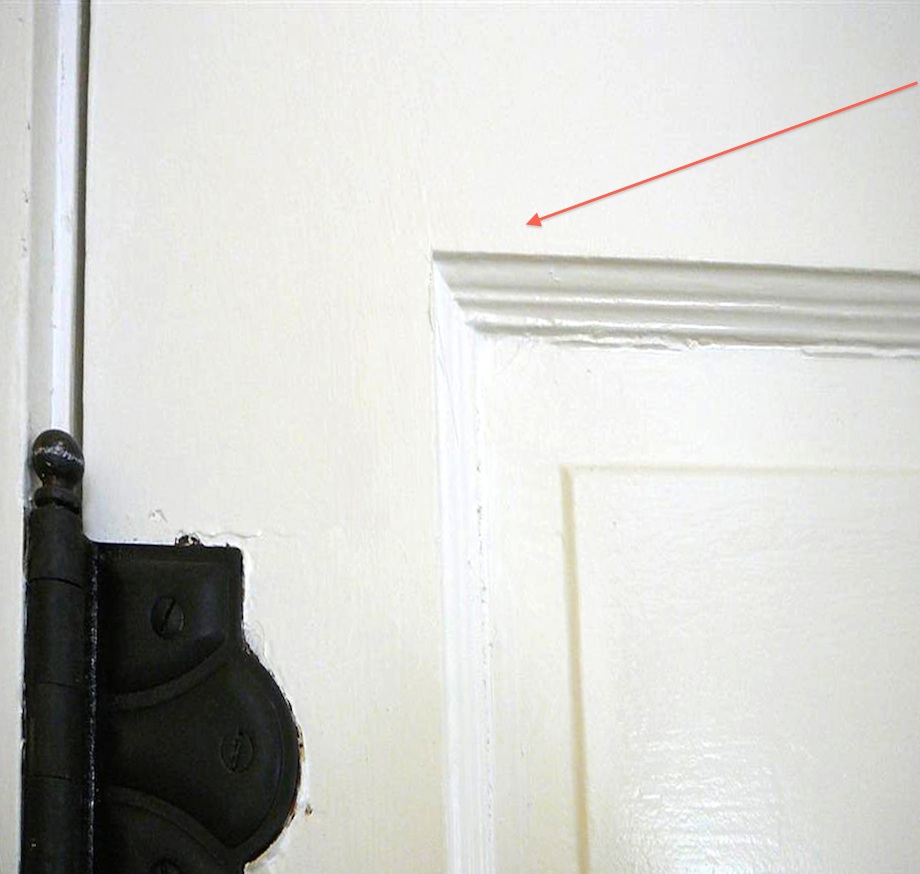

The profile around the flat panels was flat when it should have been a bead and cove profile to match the doors throughout the rest of the house.

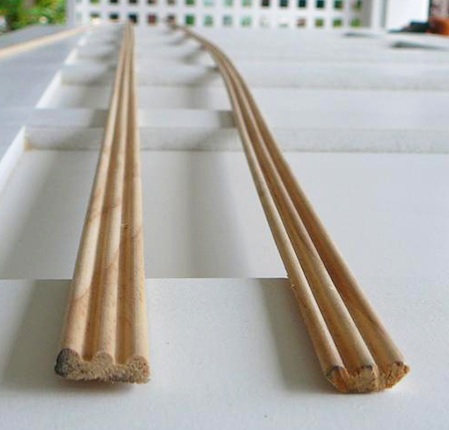

Not having enough time in the job schedule to reorder the correct doors, the GC decided he would have us fix the doors — we’d add some moldings around the perimeter of each panel, all 24 panels. This was a job that would require the most basic carpentry skills, but it was made more challenging by the GC. Instead of buying the correct molding, a bead and cove, he bought a flat beaded profile, typically used to attach screening to a wooden frame. When I brought this to his attention, his response was direct and to the point — “You can make it work, can’t you?” And with that, he left.
I bet none of you have ever heard that before, right?
Before I start a job, project, or even a small task like this one, I like to do a basic mental layout so I can identify the different parts of the project, keep myself focused, and avoid wasted motions. That’s the best way to improve efficiency and avoid mistakes, which can ruin your attitude. My mental layout is basically just a list of facts related to the job, laid out in the order they need to be done. In this case, my layout involved the following:
- Chamfer back side of molding on both edges
- Record lengths and number of pieces needed
- Gang cut all 96 pieces with square cuts
- Cut 192 miters on both ends of all pieces
- Install all pieces with glue and staples (23g pinner would be better, but I didn’t have one — not everyone has every tool they want, like Gary Katz does)
The table saw and the miter saw are the two most-often used tools on the jobsite, and those were the tools I used for this job, but I didn’t use them the way they come out of the box. I like using different types of homemade jigs to make specific cutting tasks safer, quicker, and more accurate than just using the saw by itself. While it’s true that I could have made the cuts for this project by using just the fence on each saw, it wouldn’t be quicker, it definitely wouldn’t be as accurate, and it wouldn’t be safe. In case you haven’t figured it out yet, safety and quality are linked tightly — a safer cut is often a better cut.
The first task was to rip the chamfer on the bead stock. Sometimes it’s best to work backwards when making a jig that produces accurate cuts. I recommend using the finished piece and building your jig around it. If you know what the end result looks like, then you know how to set up your jig.

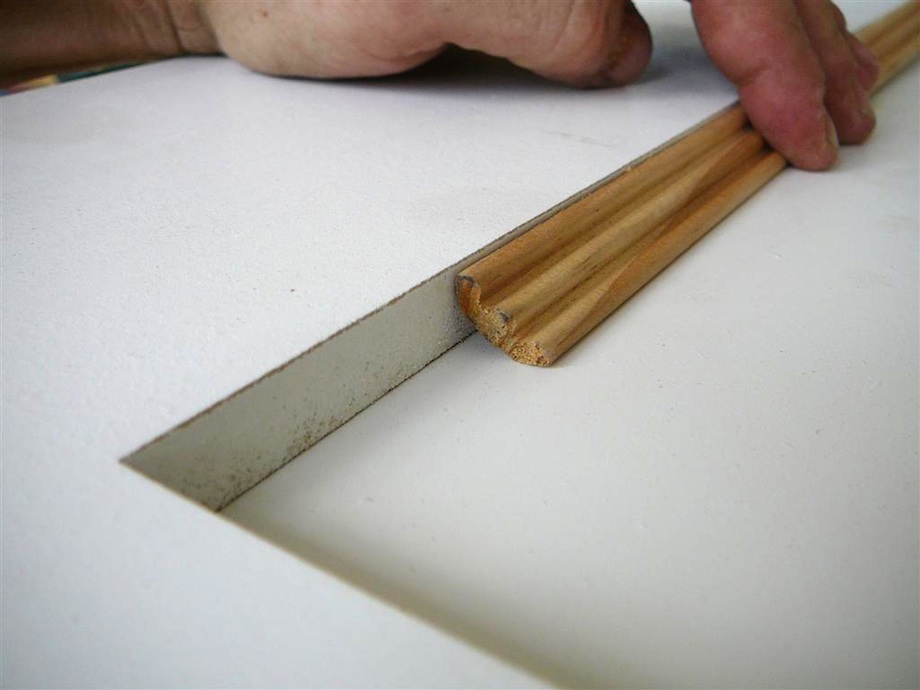

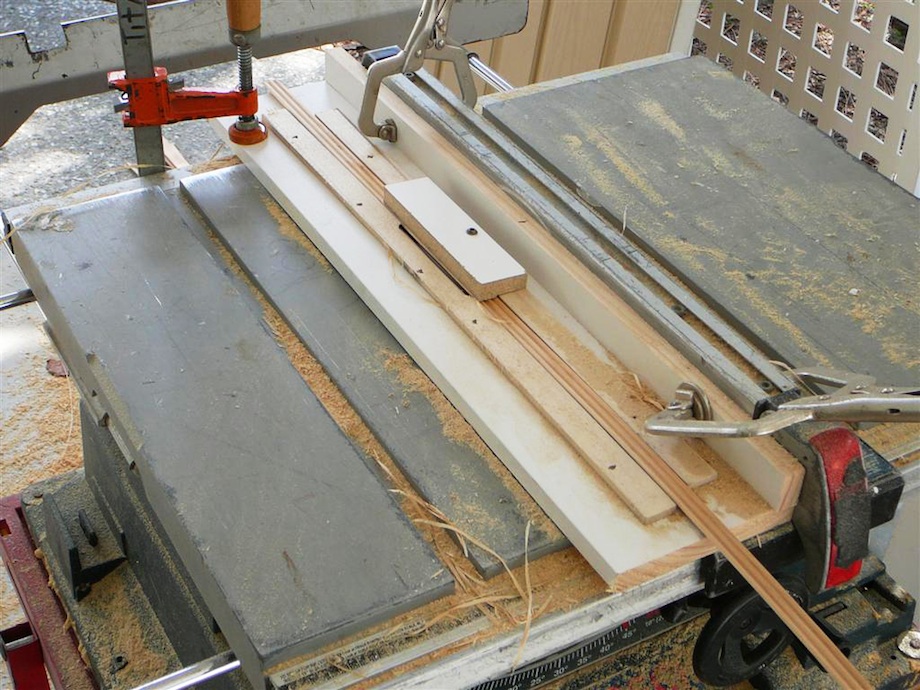

In this case, I cut a 6 in. piece of the bead molding and used my block plane to chamfer the edges until they were within the parameters of the flat panel. I began building the jig around that piece. A 6-in. wide sub-table, with a 2-in. rip attached to one edge, made the base of the jig. I lowered the saw blade and attached the base to the table saw fence with 3 vise clamps.

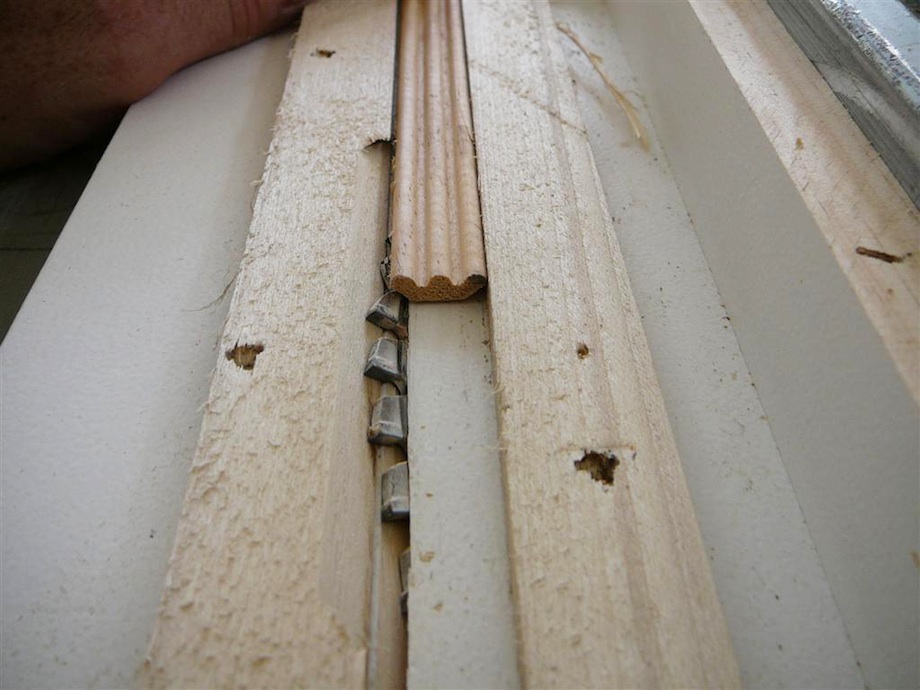

After setting the blade at 45˚, I turned the saw on and slowly raised the blade until it cut through the plywood by about 1/2 in., that way, I knew exactly where my saw cut would be made, and I could position my sample stock so the chamfers sat right next to the blade. I attached two rips, about the same thickness of my stock, on either side of the molding. Those would act as guides to steady the small, narrow stock as it passed through the blade. (See photo, Right)

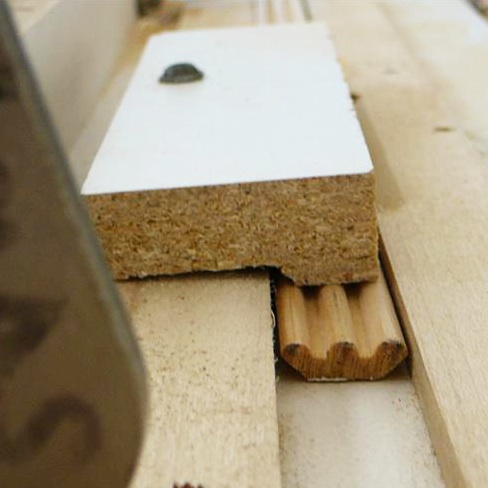

I also added a small scrap of wood on top of the jig, directly over the blade, to put downward pressure on the material as I was ripping. I attached the scrap of wood with one pocket screw so that I could adjust the downward pressure to achieve a good feed rate. It’s safest if you position the block over the blade, and keep it enclosed. Four points of contact on the material produces a clean, chatter free cut. After 15 minutes of set up time and five minutes of cut time, I had about a dozen 8-foot rips of chamfered molding that were ready for the next step.
My next task was setting up the miter saw and the jig to gang cut the pieces to length, as well as cutting the inside miters on both ends. I used a simple sub-base made from a 1×4 and a 1×6, both about 30 in. long. I attached the fence to the base, keeping the screws a good distance from the saw blade. When I mounted the sub-fence to my saw, I slid it to the right about six inches, so I’d have more support for repetitive stops, then fastened it to the saw through the factory supplied holes in the metal fence.
Before making my first cut, I set the depth guide on the miter saw to prevent the blade from cutting all the way through the jig. I wanted the blade to cut down through the fence and stop about a 1/4 in. into the sub-table.

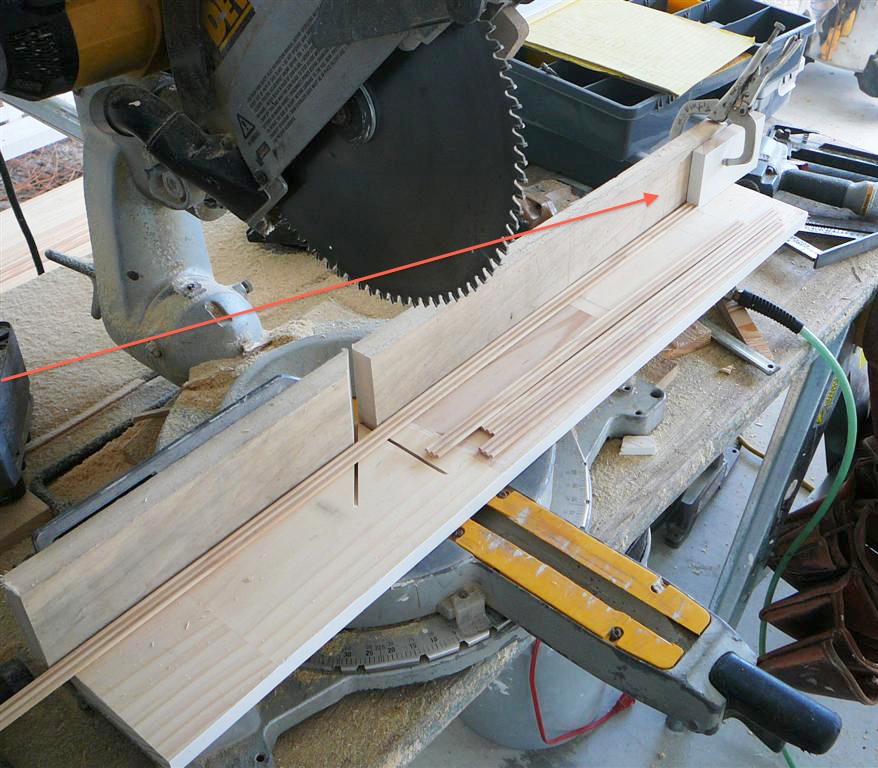

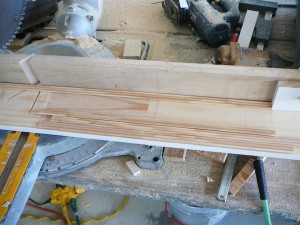

After taking measurements, and making sure that the three different sized pieces were the same on all the panels, I attached a stop block to my jig at the correct distance from the blade (see Fig. 8). Then I began cutting the molding, adding a few extra pieces of each measurement, just in case I miscut something later on.

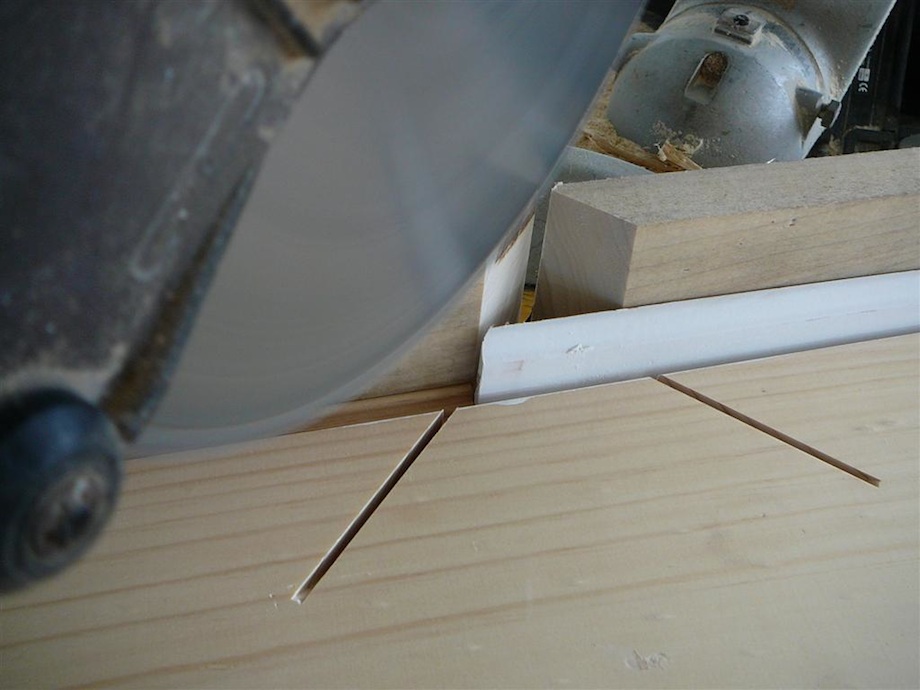

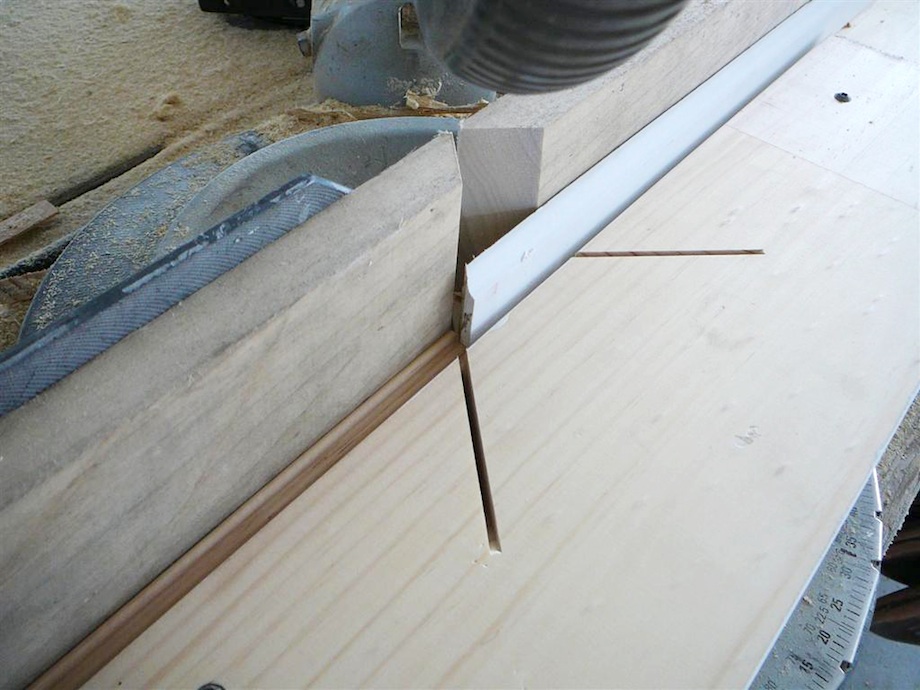

|Once I had all the pieces cut, I changed the miter saw table to 45˚ and made a cut into the jig. This cut line helped align my stop block.|

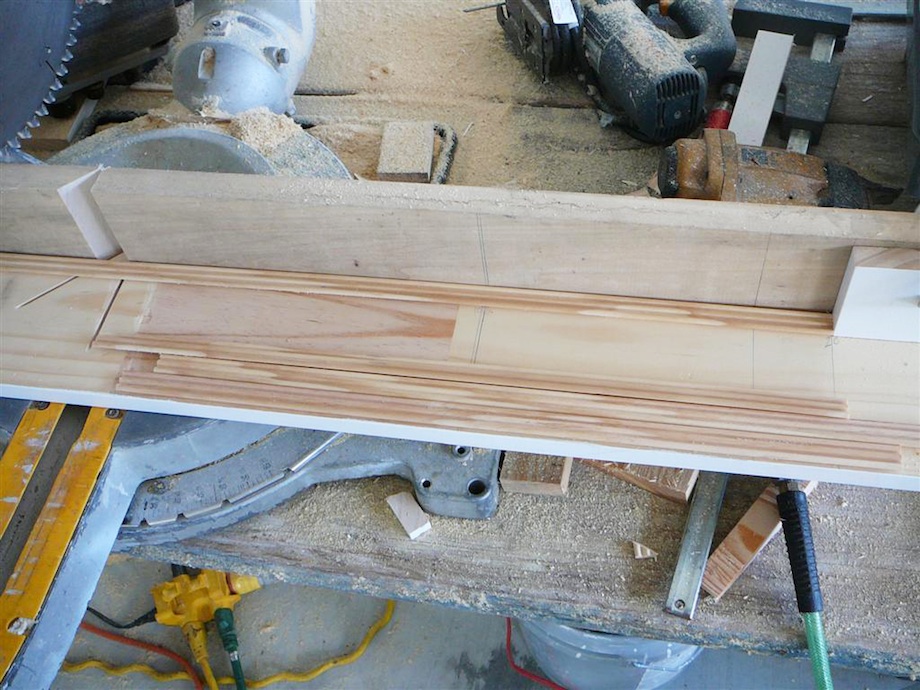

Then I put the individual pieces in the jig, and pushed them against the stop block to make the cut with the long point of the miter exactly at the end of my pre-cut piece. I also added a second piece of 1×6 to the jig, parallel to the fence, to hold the molding so I could cut it like crown molding in position.
After making all the right-hand miters, I reset the saw and stop block and made the left hand cuts. Making the jigs may have added about 30 minutes to the job, but it was time well spent — every piece was cut exactly the correct length the first time. Another advantage of square cutting the pieces first, and then mitering them, is that the saw angle only needed to be reset three times, and that saved time, too!

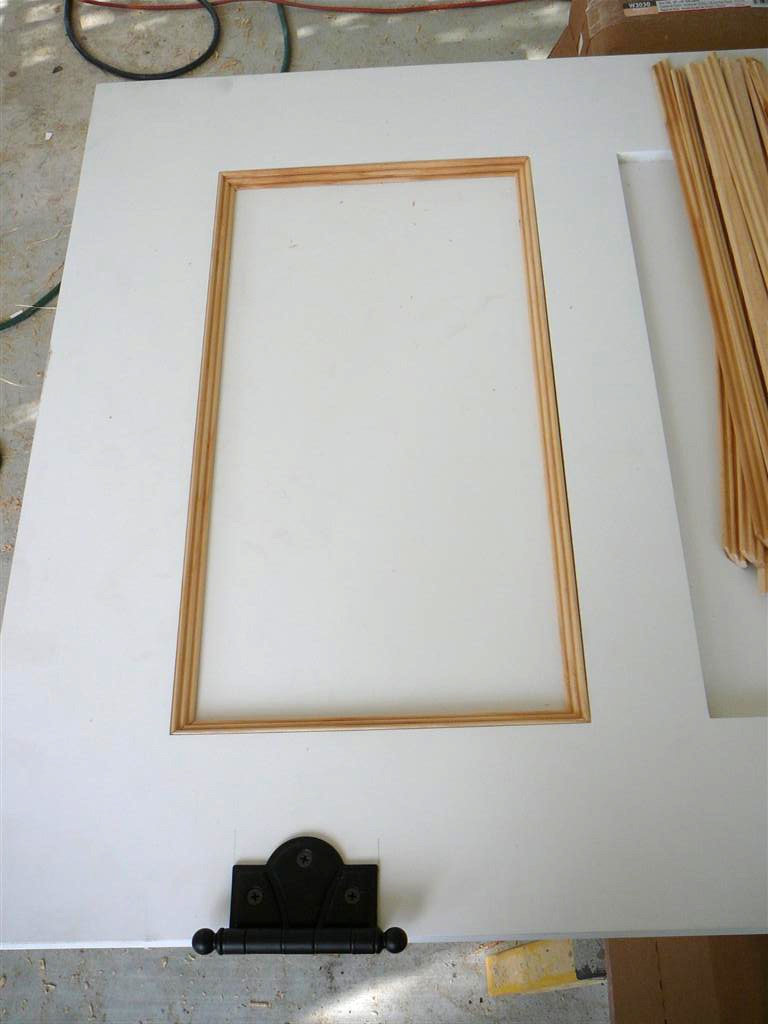

Installing the molding was kind of like running mini crown upside-down. Aside from needing to spring the long pieces in, it went together quick and easy. In the end, both the builder and I were pleased — we avoided a two-week delay. More importantly, the client was happy, too — the new doors matched almost perfectly with the existing style.
