Installing Exterior Doors in HVHZ Zones

This article might not appeal to all TiC readers, but that’s not the point of THISisCarpentry. Our goal isn’t to reach everyone. Our mission is to provide quality educational material for carpenters, even if it’s only a few of them. Still, I expect that even if you never have to install doors to meet HVHZ code, you’ll learn a few interesting things from this demonstration, things that will probably apply to normal door installation, too.

(Note: Click any image to enlarge)

Installing doors in coastal areas, where builders have to meet stringent High Velocity Hurricane Zone (HVHZ) codes, can seem uniquely demanding, especially working with a masonry wall and wood bucks. But in some ways, at least if you use 2x bucks, the job is actually a little easier because the bucks add a additional level of adjustment that’s often not available in new construction, and definitely not an option on a remodel.

The full-length video at the end of this article covers the basic installation steps, but still leaves a few areas that require more detail, including positioning the bucks, correcting for cross-leg, and preparing the sill.

Flush or Recessed Frames?

Unlike stud frame walls, wood doorframes are never the width of a masonry wall. They can be installed centered in the masonry wall, flush to the inside, or flush to the exterior of the wall. Because exterior doors in HVHZ zones cannot swing in but must swing out, I prefer to mount the frame flush to the outside of the wall—for two reasons. It’s easier to achieve a waterproof barrier at the face of the exterior wall, it’s easier to apply the brick mold or exterior trim, and if the blowing wind ever catches one of the open doors, the door can swing 180 degrees without pinching on the edge of the masonry opening. If the frame is mounted inside the masonry opening, and wind catches the open door, the door will pinch on the outside edge of the opening and the hinge stile will rip off.

According to the Plastpro assembly instructions, either 2x or 1x wood bucks can be used to secure the door frame to a masonry opening. 1x wood bucks add no additional level of adjustment because they must be fastened with 1/4-in. x 3 3/4-in. concrete screws, which have to pass through the jamb and the buck and penetrate the masonry wall, making it difficult to adjust the location of the buck and correct for cross-leg in the opening.

Door installation instructions from several manufacturers require that the masonry openings be plumb, level, and the exterior face of the opening in a flat plane with less than 1/8 in. of twist—or cross-leg—from corner to corner.

Most carpenters know that typical jobsite conditions do not meet those requirements—not any of them. Which is why it’s important to employ an installation system that incorporates levels of adjustment that allow carpenters to correct rough openings before setting door frames.

Installing 2x Bucks

According to Plastpro’s installation requirements (see pages 10 & 16), 2x bucks must also be secured with 1/4-in. x 3 3/4-in. concrete fasteners, but those screws do not have to pass through the frames. The frames can be secured to the jambs with #8 x 2 1/2 in. screws, which allows installers to make critical adjustments for cross-leg and twist or wind/warp in a door—and make those adjustments easily during the installation process.

Of course there is a specific fastener schedule: the screws securing the bucks must be within 4 in. of the header, with a maximum on-center spacing of 16 in.; the screws securing the jambs must be within 6 in. of the head, with a maximum on-center spacing of 14 in. The head buck and head jamb, as well as the threshold, also have specific fastener requirements—4 in. from the ends, 4 in. from the center, etc.

All these requirements sound daunting, but the task is really pretty easy. Start by applying two large beads of sealant on the backside of the leg bucks, then fasten those bucks to the masonry wall 4 in. down from the head. But don’t install any other fasteners—not until you cross-string the bucks.

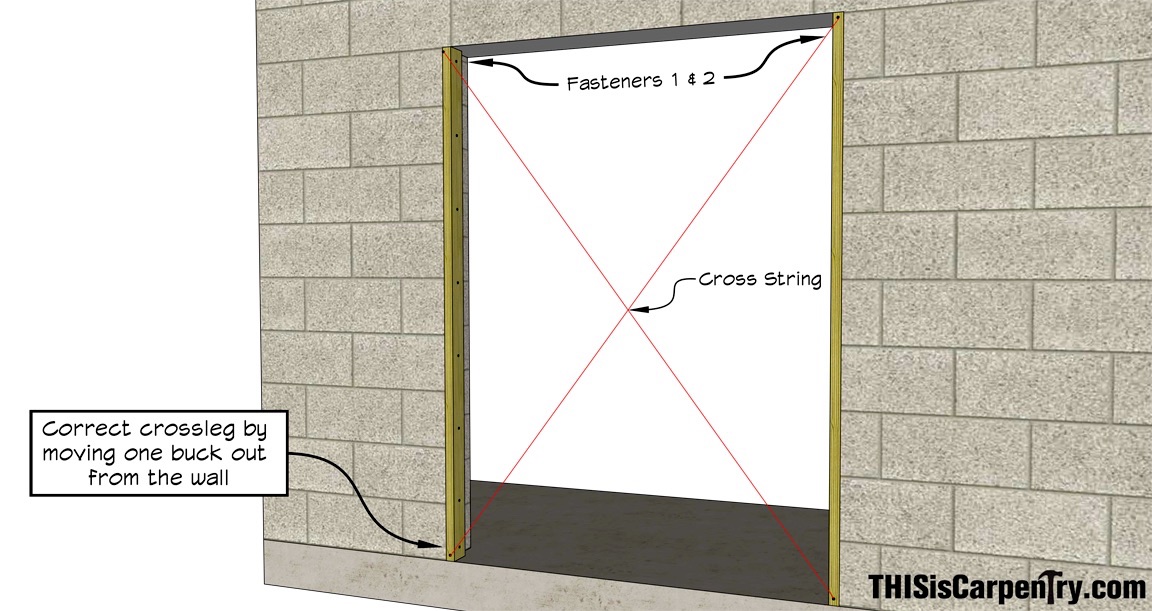

The strings don’t have to touch perfectly, but they have to be close. You’ll have two other opportunities to correct for cross-leg and for wind or twist in the doors—when you install the frame. Because you can’t push either buck back from the face of the wall, move one of the bucks out from the wall until the strings are touching or close to touching. Then drive the remaining fasteners and install the head buck.

Flash the Bucks

Because the bucks are in direct contact with the masonry wall, they must be pressure treated. And the bucks must be waterproofed, too. Some manufactures recommend liquid flashing, applied to the buck and the masonry wall, which can be messy. And if the wall isn’t being veneered, paint may not stick to the flashing. Peel-and-stick flashing provides a cleaner alternative, and can even be trimmed back once the brick mold is installed.

Level the Sill

One of the most important differences between a typical door installation and installing doors in HVHZ zones is the approach to weather and waterproofing. These days, many manufacturers recommend using the “Drainage System” for installing windows and doors in most parts of the country, which means applying a cant strip and sloped sill pan under the door or window sill, so that any moisture that penetrates the opening can be directed outside.

But in HVHZ zones, a cant strip is not approved—the threshold must be waterproofed using the “Barrier System,” which means a liberal two-bead application of sealant between the threshold and the concrete sill, one bead at the front of the threshold and one bead at the rear of the threshold.

But that doesn’t rule out a pad strip, and a pad strip can make the entire installation easier—as long as the height of the rough opening allows for the additional thickness of the padding. A pad strip solves two problems: it helps level the rough opening before setting the frame and threshold; and a pad strip helps support the nose of the threshold, which often projects an inch or more behind the foundation.

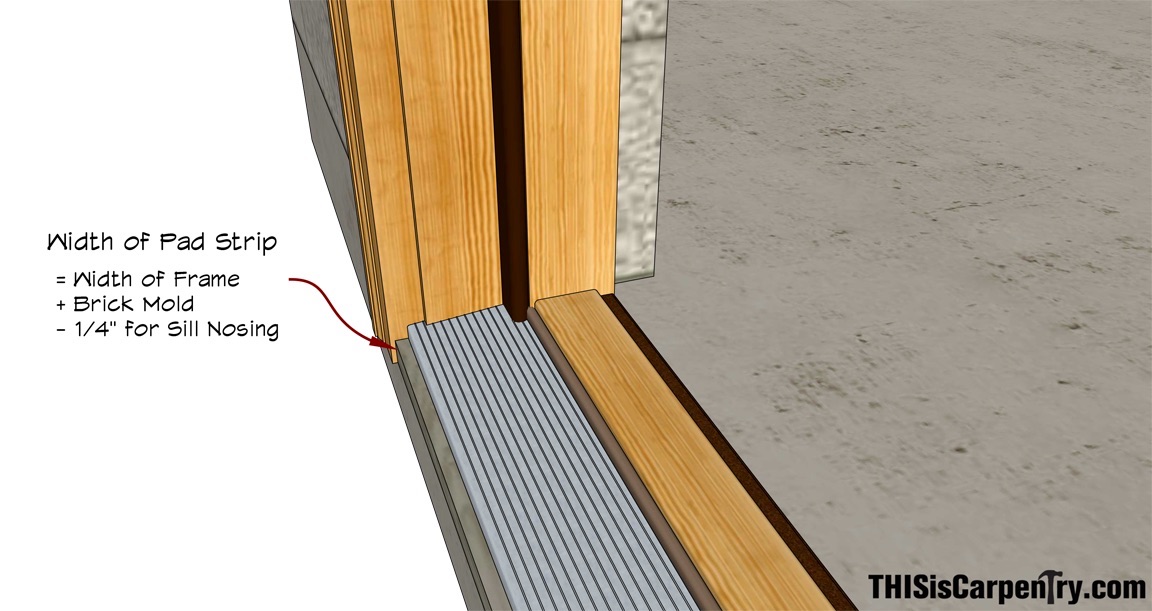

Start by cutting the pad strip the full length of the opening—from buck to buck. Rip the pad strip to the width of the frame plus the thickness of the brick mold, then subtract about 1/4 in. for the sill nosing. Notch both ends of the padding so that the pad strip doesn’t interfere with the brick molding, which should reach past the bottom of the threshold, to wherever the siding terminates.

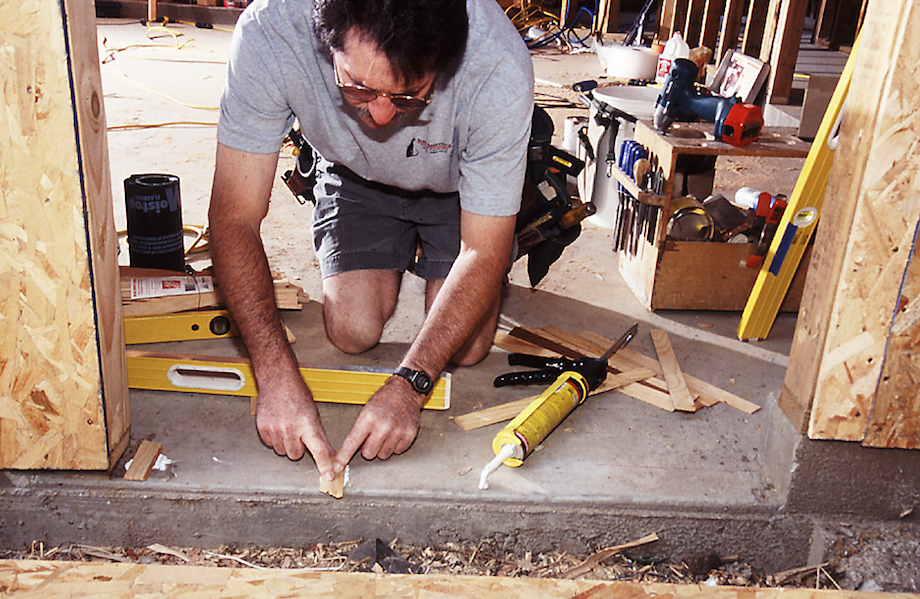

Shim the pad strip until it’s perfectly straight and level, then carefully lift the pad and secure the shims with small beads of sealant, then apply two continuous beads of sealant across the opening, right over the tops of the shims.

Secure the pad strip with concrete fasteners, then waterproof the padding with a flashing membrane.

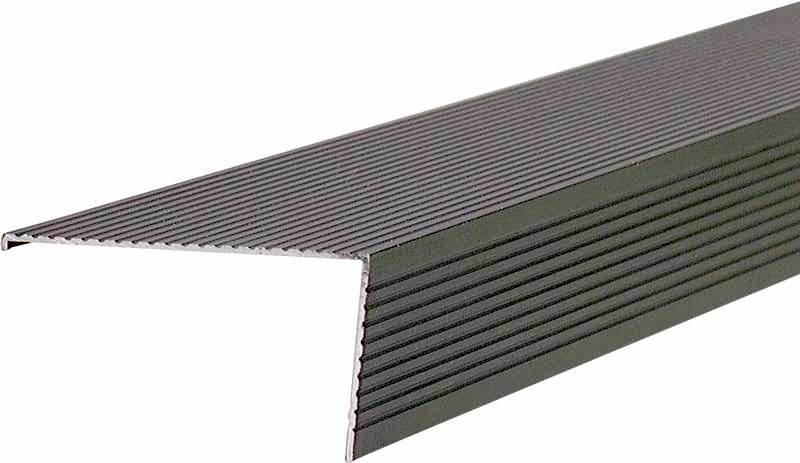

Before installing the frame, cover the padding with a sill nosing—an anodized aluminum weather-sealing product that all door installers should be familiar with.

A sill nosing is especially handy for recessed door frames—when the threshold doesn’t even reach the edge of the concrete or wood subfloor. Used in conjunction with a pad strip, the sill nosing covers the sill-pan flashing, dresses up the entire installation, and helps support the threshold!

Now that the bucks are fastened in one flat plane and thoroughly flashed, and the sill is properly prepared, installing the frame and doors is a snap.
