CAL Green – “The New Normal”

There’s a new code in California: CAL Green took effect this year. I often hear complaints from people outside of California about our stringent environmental regulations, but the new CAL Green code sets a national standard for best practices. The code includes mandatory and voluntary sustainability measures for residential and non-residential construction.

Mandatory Measures

Some of the mandatory measure include:

  • Indoor air quality and exhaust
  • Indoor and outdoor water use reduction
  • Construction waste reduction, disposal, and recycling
  • Volatile Organic Compound (VOC) limits for paints, coatings, adhesives and sealants
  • Formaldehyde limits for hardwood plywood, particleboard, and medium density fiberboard

Voluntary Measures

I think the voluntary measures are so reasonable and logical that they should be made mandatory, too. After all, saving material—especially the lumber we put into walls—saves energy, helps improve the effectiveness of insulation, and just plain saves money.

(Note: You can click any of the images below to enlarge; hit your browser’s “back” button to return to this article.)

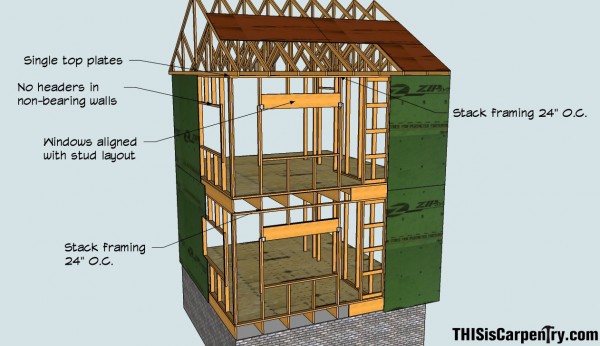

Some of the voluntary measures are: using single top plates; designing on a 24" module; including a cut list on the plans; aligning framing members at 24" centers.

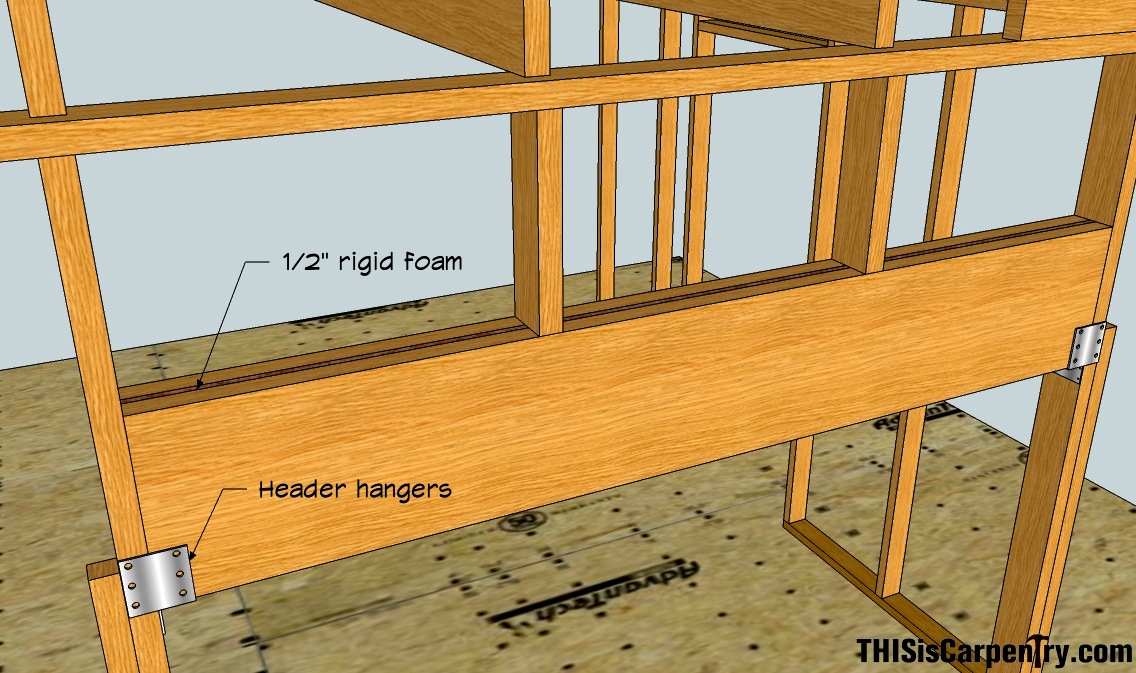

Voluntary measures also include using clips or header hangers rather than trimmers or jack studs under headers. Providing backing for exterior trim with 2x2's will reduce thermal bridging, add additional insulation, and save lumber.

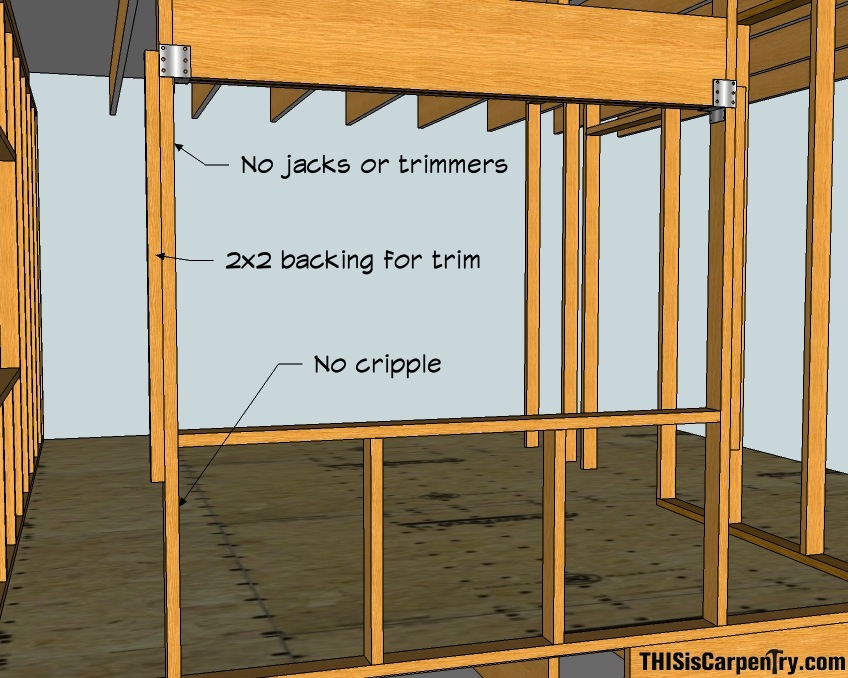

Other suggestions for eliminating unnecessary framing material are: no headers in non-load bearing walls; using engineered lumber to reduce use of solid sawn lumber, and, where possible, using single-piece headers to increase insulation, reduce thermal bridging, and save lumber.

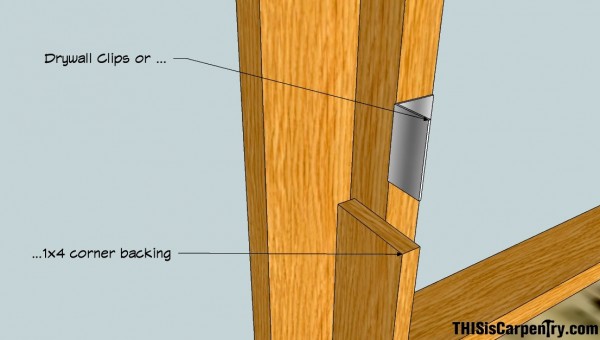

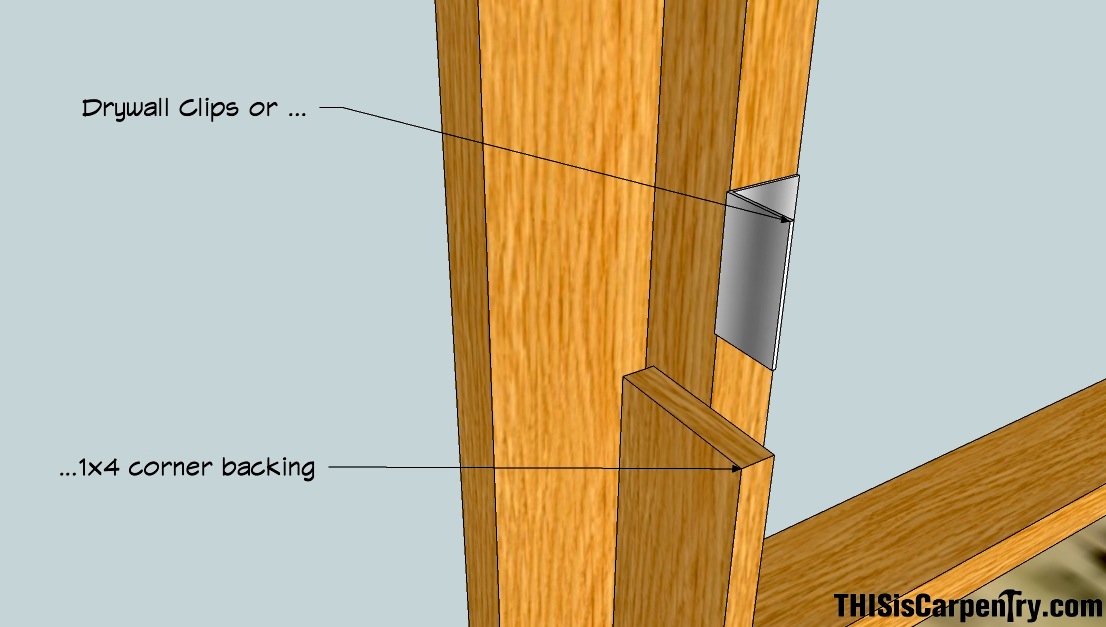

And for interior walls, the code suggests using two-stud corners or drywall clips—which reduces thermal bridging.

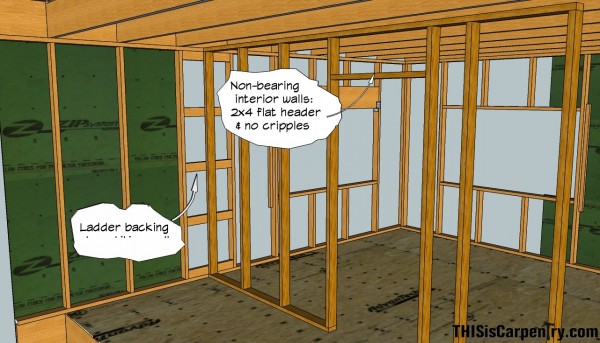

Headers on interior walls can also be omitted under the new code, and solid backing at interior partitions can be replaced with ladder backing.

Material Lists

The code recommends doing a material list on the plans for framing (floor, wall, ceiling, and roof) and sheathing (floor, wall, and roof). This could be used as an on-site or lumber yard cut list. Carpenters and lumber yards have traditionally done material lists, so, as an architect, I’m delighted to see the code asking for this type of forethought in the design phase. Hopefully, it will encourage designers to consider efficient material use, which helps keep costs down and benefits the environment.

Optimum Value Engineering (OVE)

Sometimes called Efficient Framing, Advanced Framing, or OVE, the goal is to reduce labor, material, and waste, and to increase energy efficiency by replacing lumber with insulation. Here’s my shot at a cut list for a conventionally framed 20-foot long exterior bearing wall for a 1-story, raised floor house with one 3-foot square window in the center and 2-stud corners:

14 – 2 x 6 x 92-5/8″ studs

2 – 2 x 6 x 92-5/8″ king studs

2 – 2 x 6 x 79-1/2″ trimmers

2 – 2 x 6 x 7-5/8″ top cripples

2 – 2 x 6 x 41″ bottom cripples

1 – 2 x 6 x 38″ rough sill

1 – 6 x 6 x 41″ header

3 – 2 x 6 x 20 top & bottom plates

Here’s the same wall framed with OVE at 24-inch centers:

10 – 2 x 6 x 94-1/8″ studs

2 – 2 x 6 x 94-1/8″ king studs

2 – 2 x 6 x 74-1/8″ trimmers

1 – 2 x 6 x 9-1/8″ top cripple

1 – 2 x 6 x 41″ bottom cripple

1 – 2 x 6 x 38″ rough sill

1 – 6 x 6 x 41″ header

2 – 2 x 6 x 20 top & bottom plates

Assuming the cripples came from 92-5/8″ length studs (for 8′-1″ from top of subfloor to underside of ceiling joists) in the conventional wall, they could yield the rough sill and scrap for drywall backing in lieu of 3-stud corners. The OVE wall could yield the rough sill but has virtually no waste. The studs for the OVE wall are 1-1/2″ longer. Assuming they’re the same cost, the savings is 5 fewer studs and 1 less plate. In both cases, the header and plates are candidates for engineered lumber.

Once you’re comfortable with OVE, the labor and material savings can add up. The Department of Energy’s Office of Building Technology estimates material cost savings of about $500 for a 1,200 square foot house and labor cost savings between 3 and 5 percent. The savings could help overcome a homeowner’s potential concern that they’re getting less. With cut lists and careful planning, efficient framing just may become “the new normal.”

http://www.documents.dgs.ca.gov/bsc/CALGreen/2010_CA_Green_Bldg.pdf

http://apps1.eere.energy.gov/buildings/publications/pdfs/building_america/26449.pdf
